Repair and Diagnosis: Transmission: Clutches: Description

Clutches on all Chrysler Motors vehicles are dry, single disc design. Adjustment for wear is not provided in clutch itself.

Clutch release cable is self-adjusting. Prelubricated clutch bearing is constant running type. No external adjustments can be made.

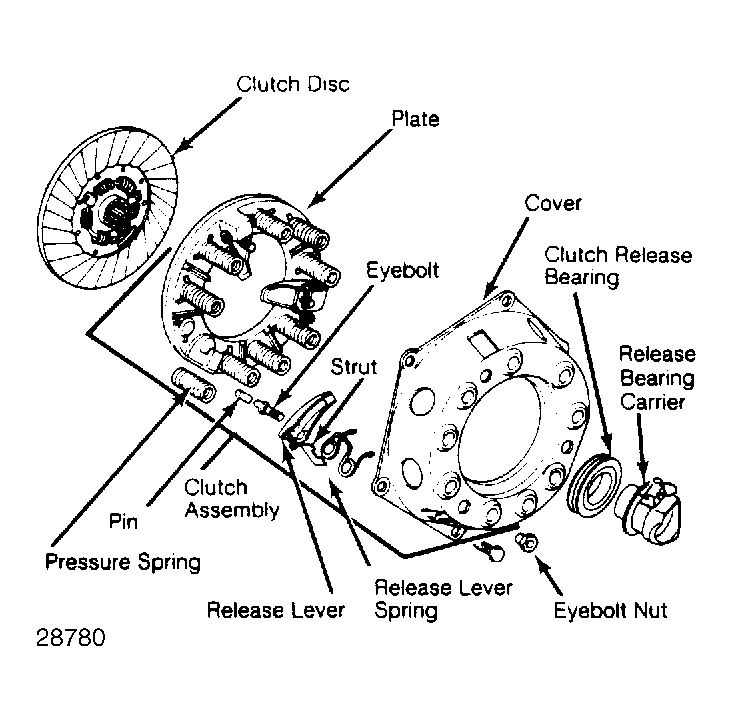

Fig 1: Exploded View of Clutch Assembly
G28780Courtesy of CHRYSLER MOTORS.
