Automatic Idle Speed (AIS) Motor

Disconnect battery and 4-pin AIS connector. Remove mounting screws from throttle body. Remove AIS motor. Ensure "O" ring is positioned on AIS motor. To install, reverse removal procedures.

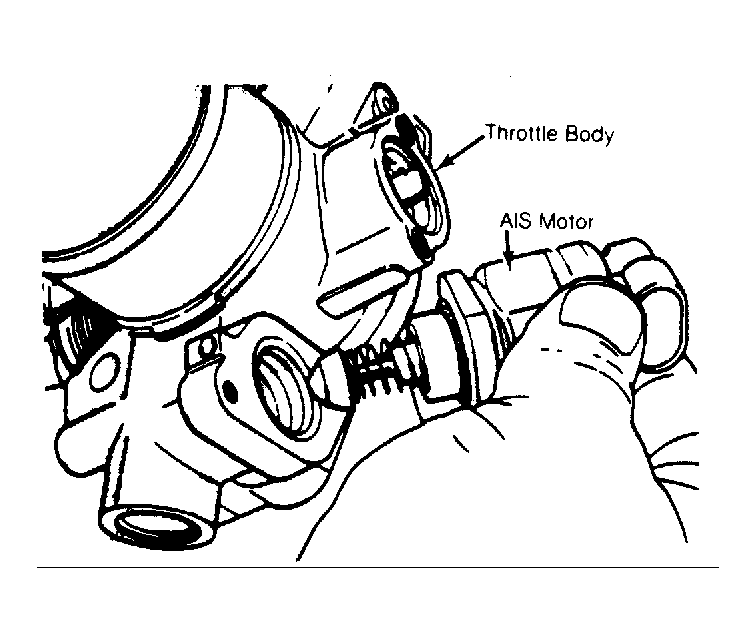

Fig 1: Removing AIS Motor

Courtesy of CHRYSLER MOTORS.
