Fuel Evaporation System: Description

Evaporation control system prevents fuel tank and carburetor gasoline vapors from escaping into the atmosphere. The systems are dual canister types for 3.7L California and all 5.9L engines. All other models have single canister type systems with damping canisters on 2.6L and 3.9L engines.

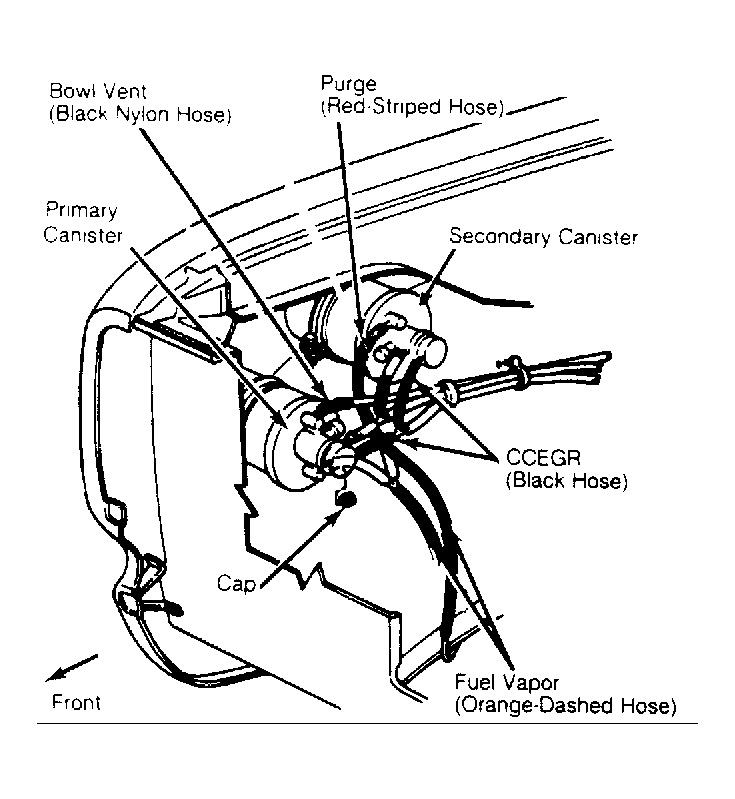

Fig 1: Dual Canister Mounting (Typical) Canisters are mounted on right front fender. Courtesy of Chrysler Motors.
