Door Lock Switch Test

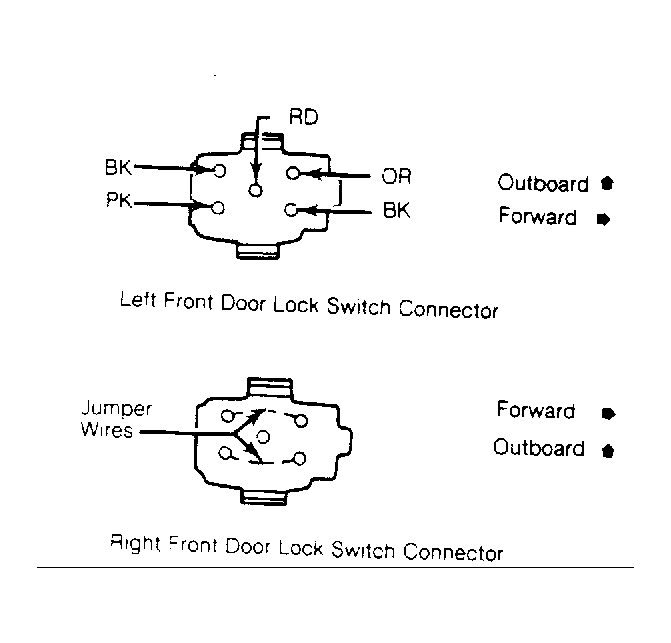

Connect jumper wires on right side switch connector. See Fig 1 . Operate door locks using left connector and jumper wires. Connecting Orange to Red and Pink to Black wires should lock doors. Connecting Pink to Red and Orange to Black wires should unlock doors. If door locks operate using jumper wires, switches are at fault.
