Tie Rod End Replacement: Installation

1. Install new tie rod end. Connect tie rod end to knuckle arm. Connect opposite end to center link (all except 2WD Dakota and FWD Van). On 2WD Dakota and FWD Van, tighten lock nut. On all others, tighten clamp bolt.
2. Position clamp sleeve with bolt on bottom. Clamp opening should be aligned with slot in sleeve. Install cotter pin. Check and adjust toe-in. See the WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES article in the WHEEL ALIGNMENT section.

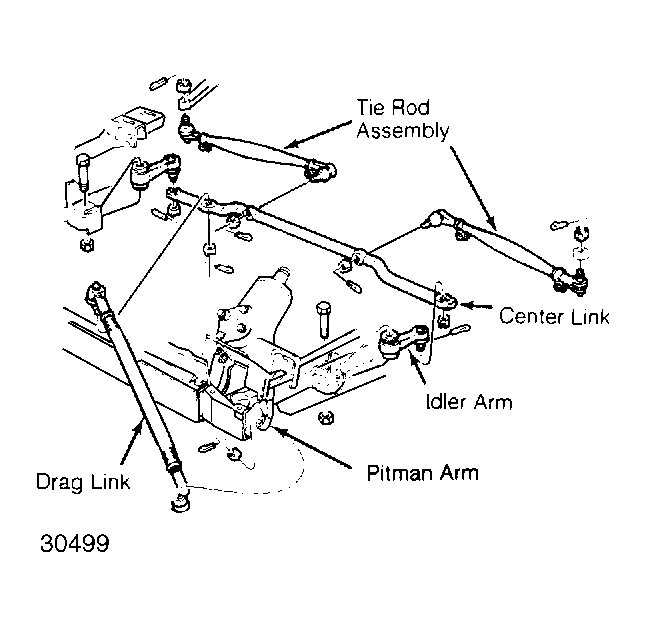

Fig 1: View of Steering Linkage (Pickup & Ramcharger)

Courtesy of CHRYSLER MOTORS.

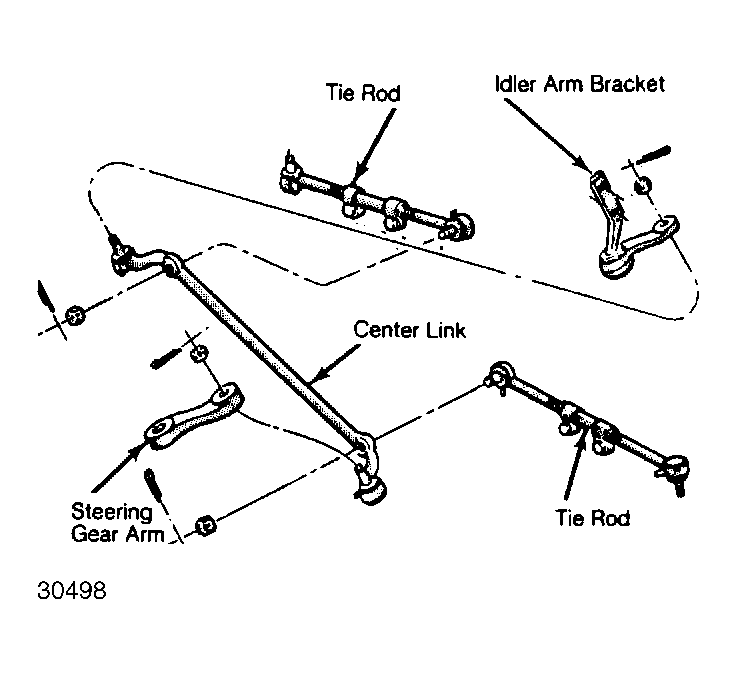

Fig 2: View of Steering Linkage (Van & Wagon)

Courtesy of CHRYSLER MOTORS.
