Tune-Up - 4-CYL: Adjustments: Distributor

The 2.2L engine is equipped with the Chrysler Motors Hall Effect Electronic Spark Advance (ESA) Ignition system. The 2.6L engine is equipped with the Mitsubishi Electronic Ignition System (EIS).

The only adjustments that can be made to either system are initial ignition timing and spark plug gap.

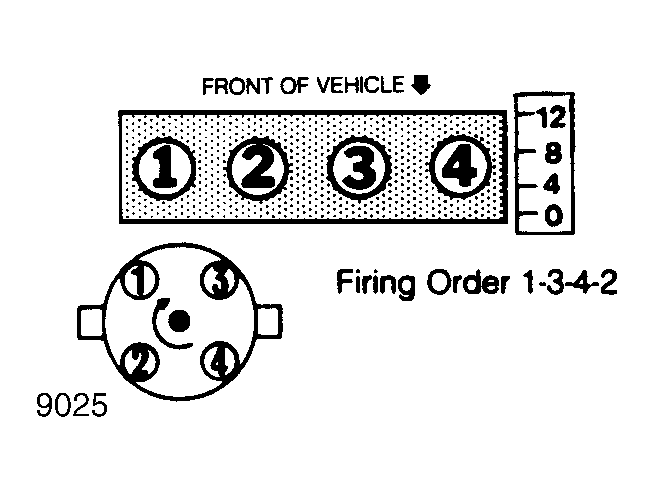

Fig 1: 2.2L Firing Order & Timing Marks

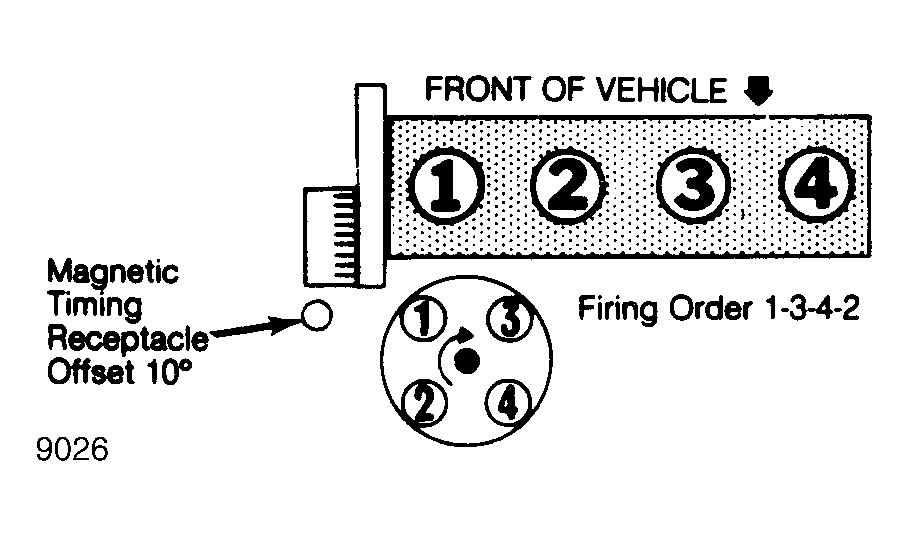

Fig 2: 2.6L Firing Order & Timing Marks
