Control Units

CONTROL UNITS LOCATION

Component Location

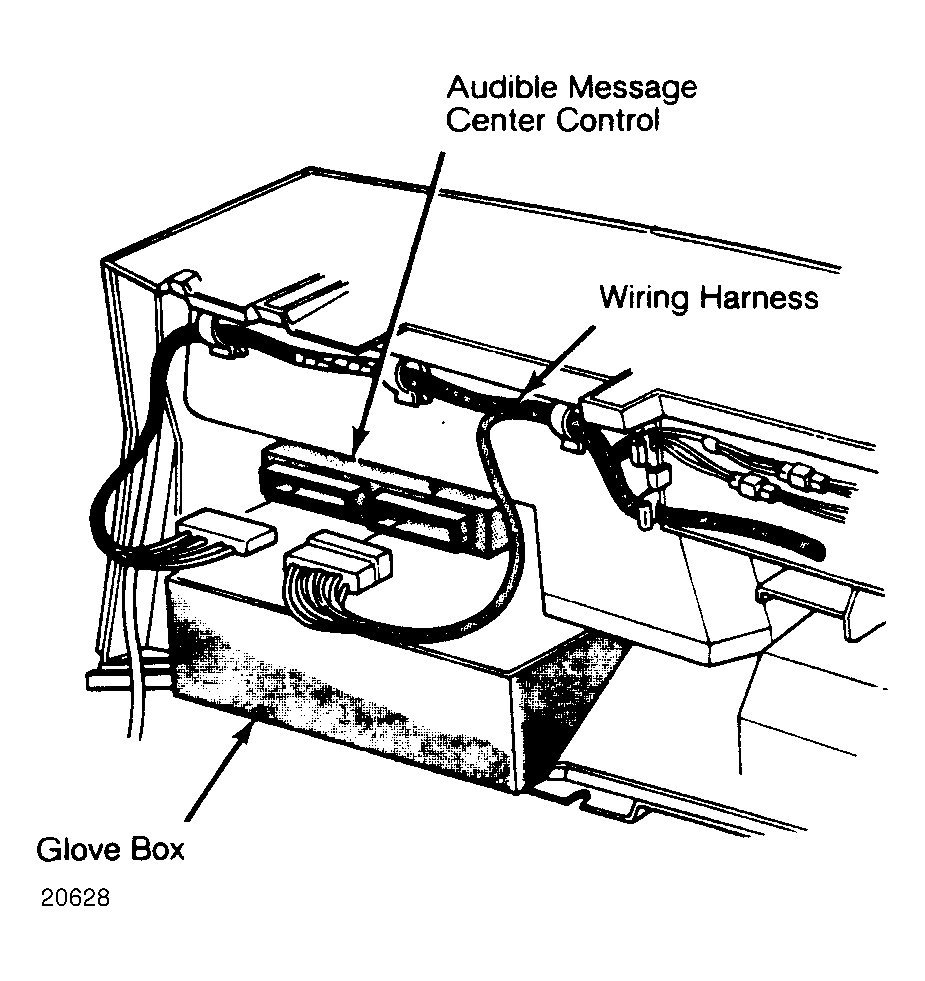

Audible Message Center Control Under dash above glove box. See Figure.

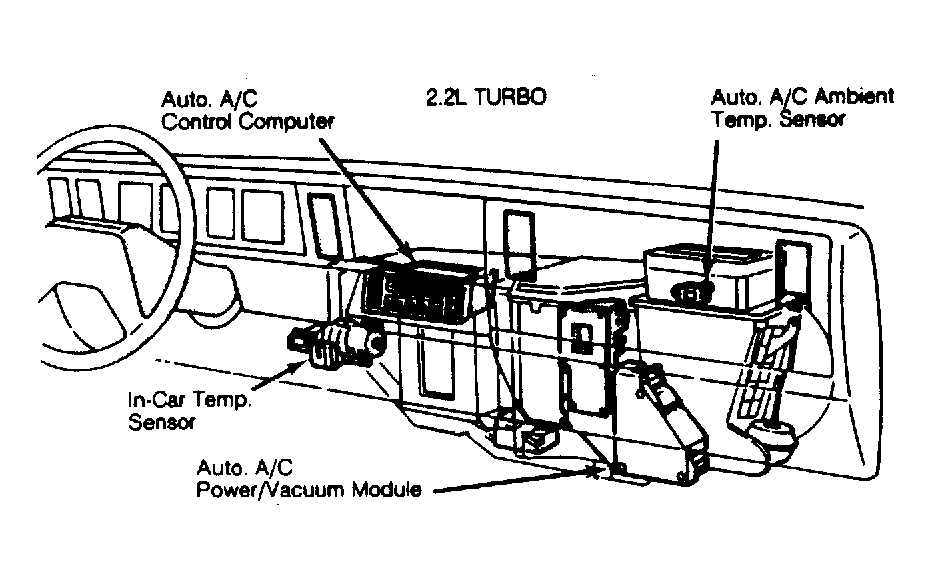

Auto. A/C Control Computer Integral part of display panel. See Figure.
Auto. A/C Power/Vacuum Module In A/C-heater housing under right side of dash. See Figure.

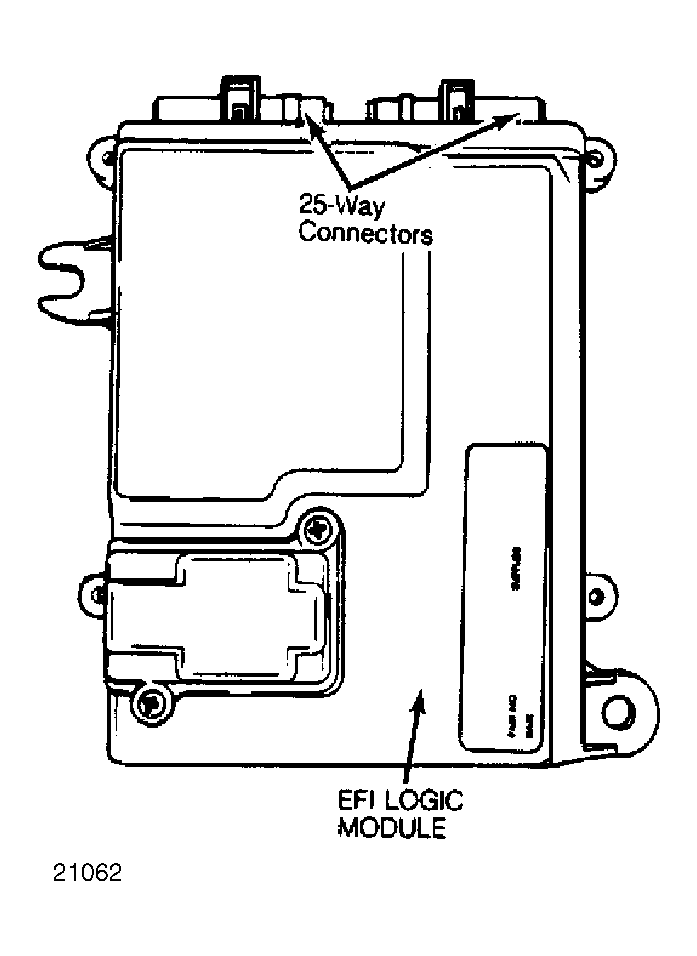

EFI Logic Module At bottom of right kick panel. See Figure.

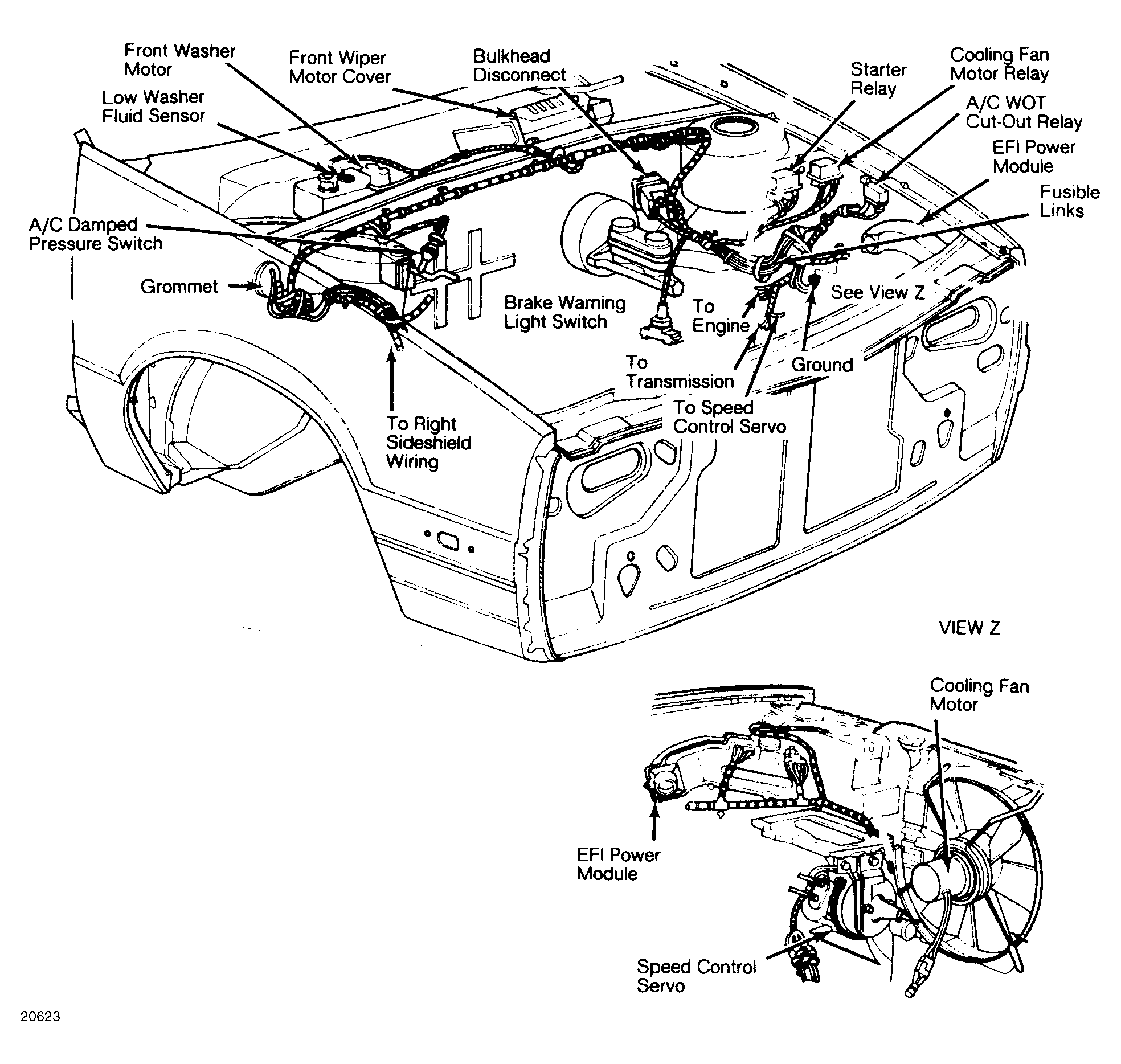

EFI Power Module At left front corner of engine bay. See Figure.
Intermittent Wiper Control Unit On bracket on left lower reinforcement.
Key-In/Headlight On/Seat Belt Warning Module With Time Delay Under dash above glove box.
