Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location

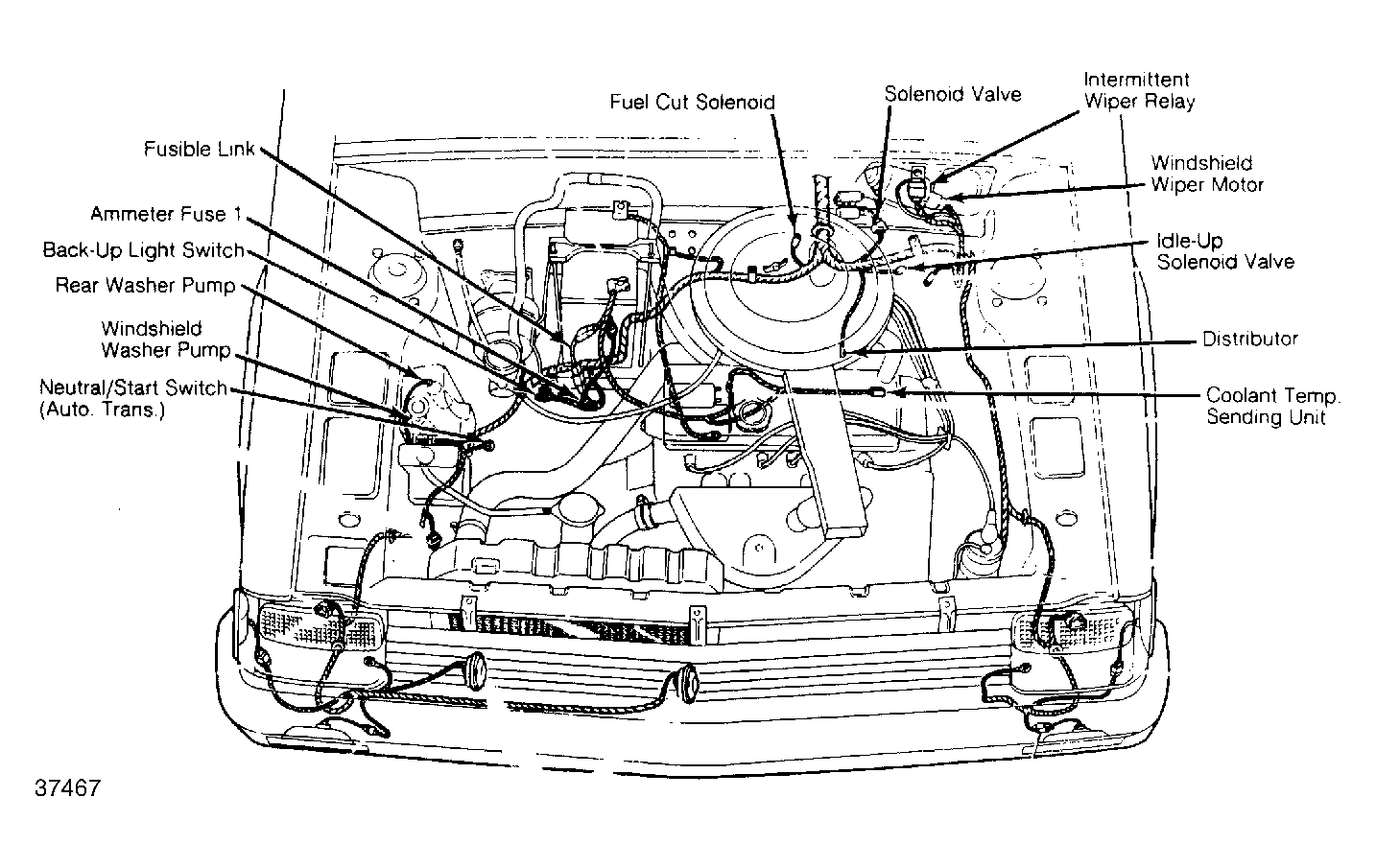

Ammeter Fuse 1 On left side wiring harness, below ignition coil. See Figure.
Fuse Block Below instrument panel.
Fusible Link On battery wire harness. See Figure.
Ignition Igniter Inside distributor, mounted to pick-up coil.
Radio Noise Suppression Capacitors Above ignition coil and at rear of alternator.
Relay Block Behind driver's kick panel.
