Repair and Diagnosis: Transmission: Clutch: Clutches: Description
The clutch is a diaphragm spring, single disc type. Operation is controlled mechanically by a cable. The clutch release bearing is sealed and permanently lubricated.

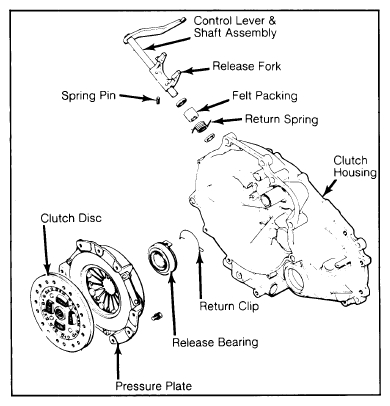

Courtesy of CHRYSLER GROUP, LLC
The figure applies to Champ & Colt models.
