Motor Runs At Low Speed Only

Position switch in high position and connect test lamp between terminal "H" and ground. If lamp does not light, an open exists in wiring or switch. If lamp lights, brush is not making contact with armature.

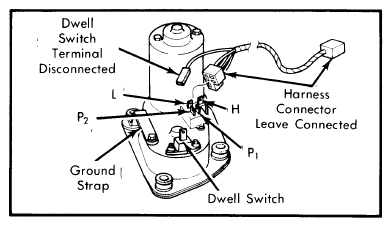

Fig 1: Two Speed Intermittent Wiper Motor Terminal Identification (Standard Terminal Similar)

Courtesy of CHRYSLER GROUP, LLC
