Limit Switches

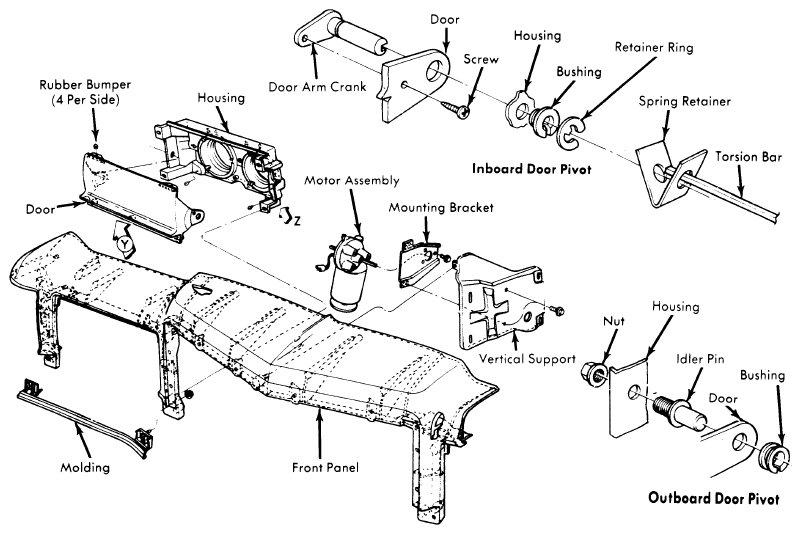

Remove torsion bar and motor. Remove switch plate and examine gear for damage. Ensure that switch blade contact surfaces are clean. Rotate gear assembly, while pressing it against switch plate, and observe operation of limit switches.
CAUTION:
Do not over rotate since cam can hit and damage limit switch. Replace switch plate if switches do not operate correctly in both open and closed positions.
