Brake Switch

Loosen switch bracket. Clearance should be 0.140". Insert proper spacer gauge between brake push rod and switch with pedal in free position. Push switch bracket assembly toward brake push rod until plunger is fully depressed and switch body contacts spacer. Retighten bracket to 100 INCH lbs. and remove spacer.

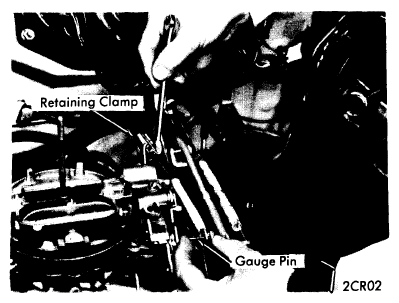

Fig 1: SERVO THROTTLE CABLE ADJUSTMENT

Courtesy of CHRYSLER GROUP, LLC
