Tune-Up - V8: Distributor

Point Gap .014-.019"
Cam Angle 28-32°
Breaker Arm Spring Tension 17-20 ozs.
Condenser Capacity 25-.285 mfd.

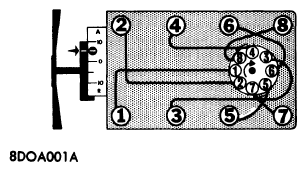

Fig 1: Firing Order & Timing Marks 318"
G09324731Courtesy of CHRYSLER GROUP, LLC

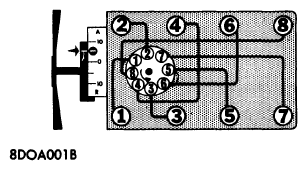

Fig 2: Firing Order & Timing Marks 383"
G09324732Courtesy of CHRYSLER GROUP, LLC
