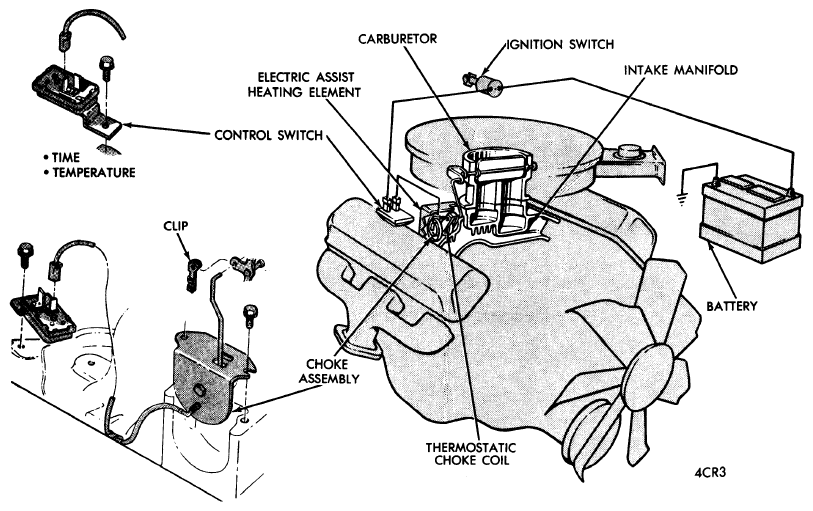

Choke Heater Element
- Disconnect only B+ wire at control switch. Connect an ohmmeter lead to the choke housing or choke retainer screw.
- Touch other meter lead to a bare portion of choke wire connector at switch (not B+ terminal). A meter reading of 4 to 12 ohms indicates heater (two different releases) is electrically functional. An open or short circuit are cause for installing a new choke assembly.
NOTE:
Heater element must not be immersed in any fluid, as an electrical short to choke heater is also a short circuit to ignition system.
