Tune-Up Notes: Notes

1966 CARS WITH "CAP" & STROMBERG WW3-261 CARBURETOR STUMBLE & STALL CORRECTION: For correction of stumble and stall from standing start with slowly opening (one third or less) throttle, see "Stromberg WW 2-Bbl ."

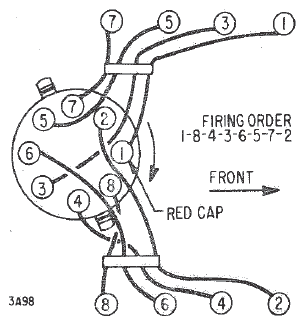

Fig 1: 273", 318" Engines Firing Order
Courtesy of CHRYSLER GROUP, LLC

Fig 2: Ignition Timing Marks (All Engines)
Courtesy of CHRYSLER GROUP, LLC
