Steering Column: Description

The steering system consists of a mainshaft joined or supported by resin pins. Under impact the resin pins break, allowing steering column to collapse without affecting turning motion. Tilt steering is available on Rocky.

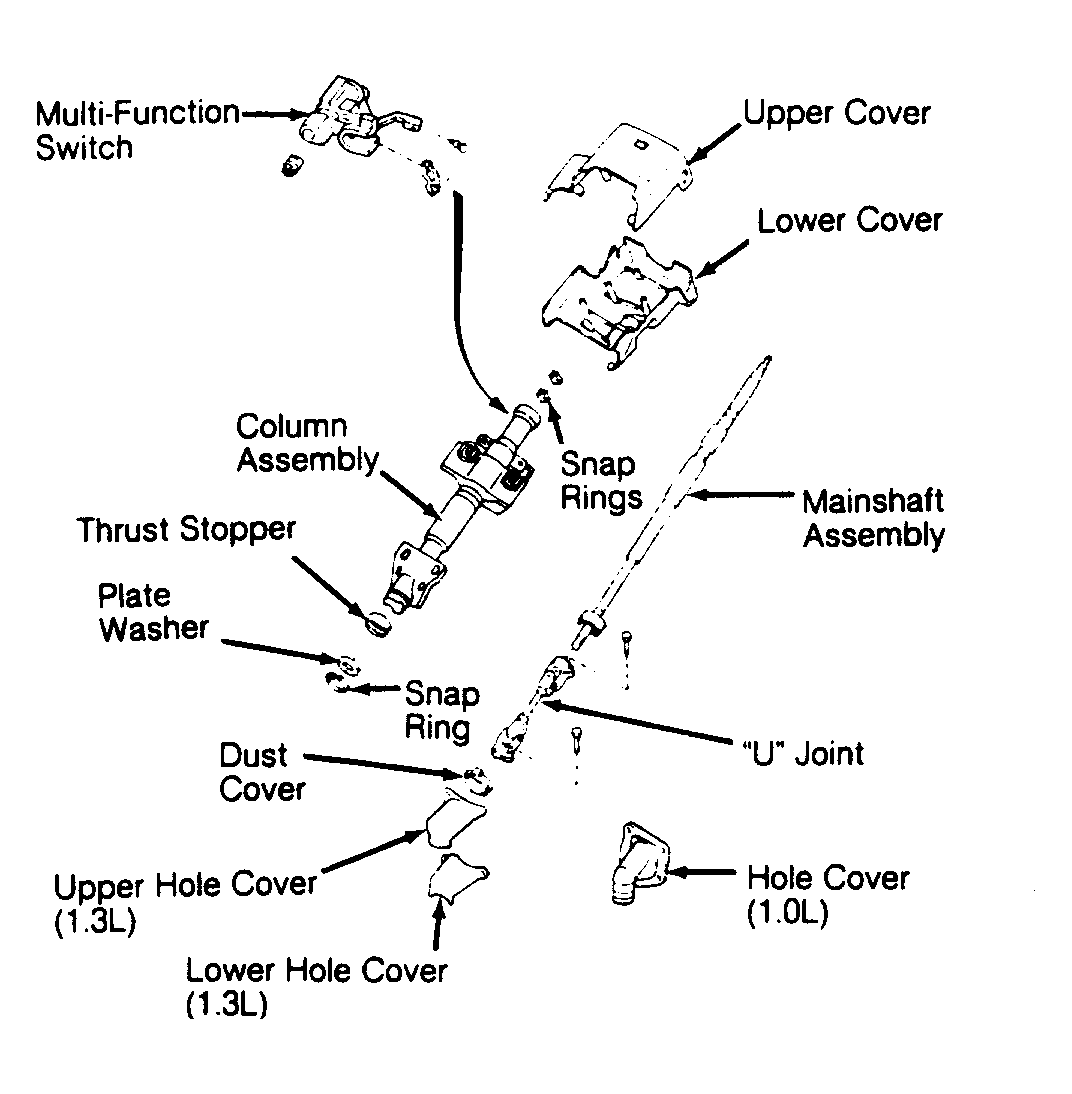

Fig 1: Exploded View of Steering Column (Charade)

Courtesy of DAIHATSU MOTOR CO., LTD.

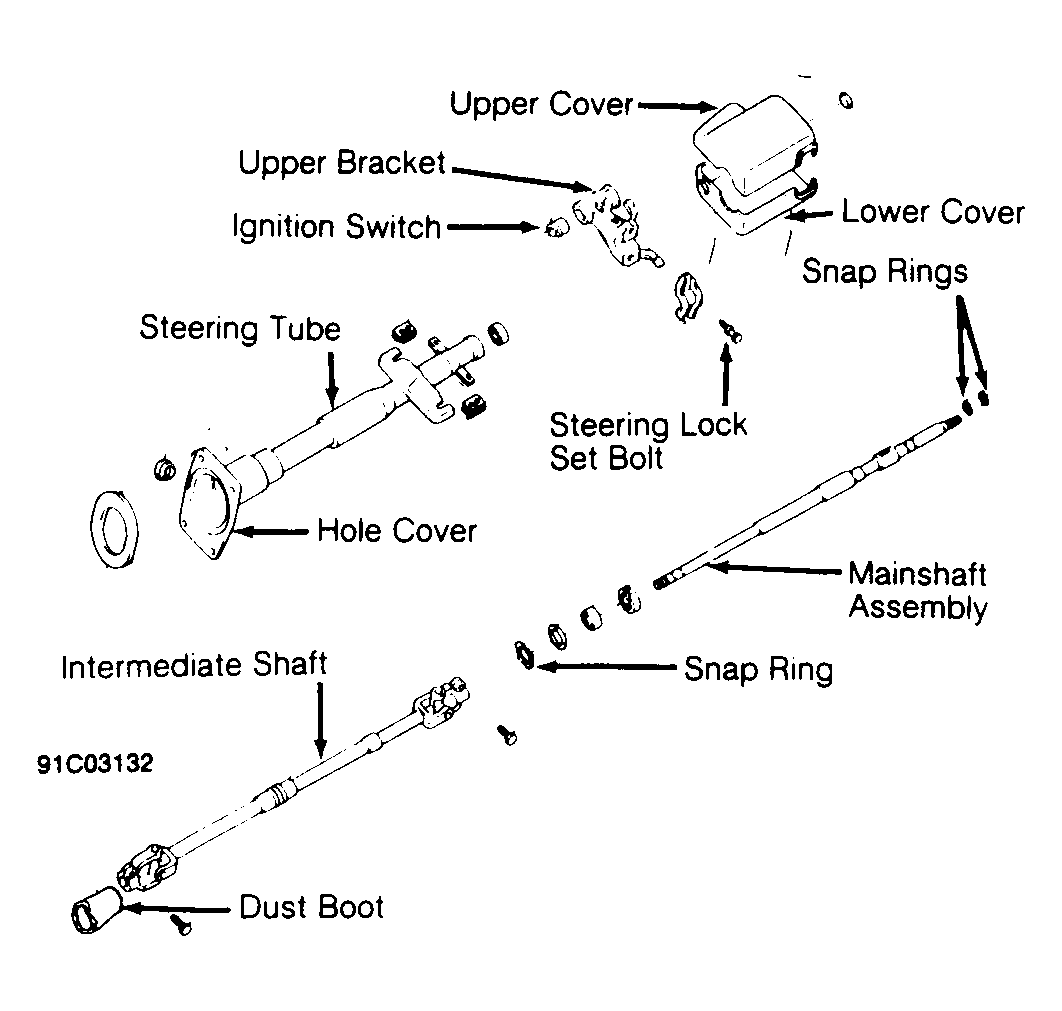

Fig 2: Exploded View of Standard Steering Column (Rocky)

Courtesy of DAIHATSU MOTOR CO., LTD.

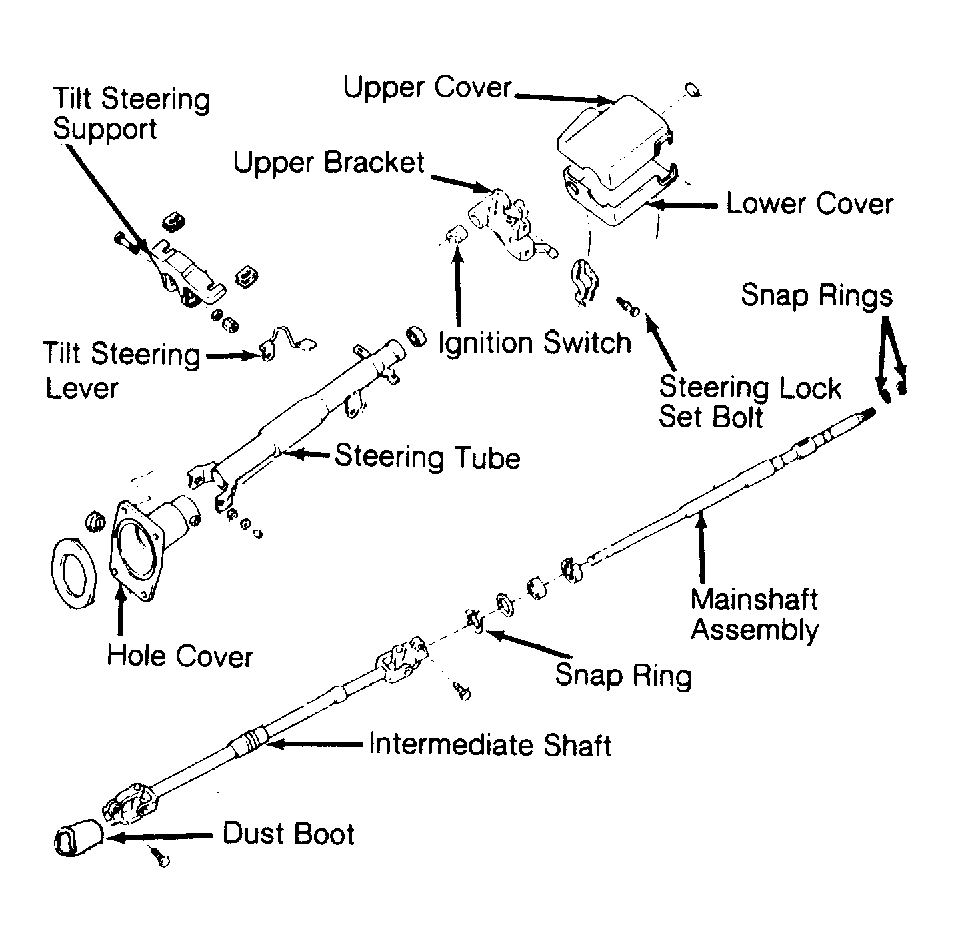

Fig 3: Exploded View of Tilt Steering Column (Rocky)

Courtesy of DAIHATSU MOTOR CO., LTD.
