Daihatsu
>>
1992
>>
Charade SX
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Trouble Code Charts
>>
Diagnostic Codes For 1.0L
Diagnostic Codes For 1.0L

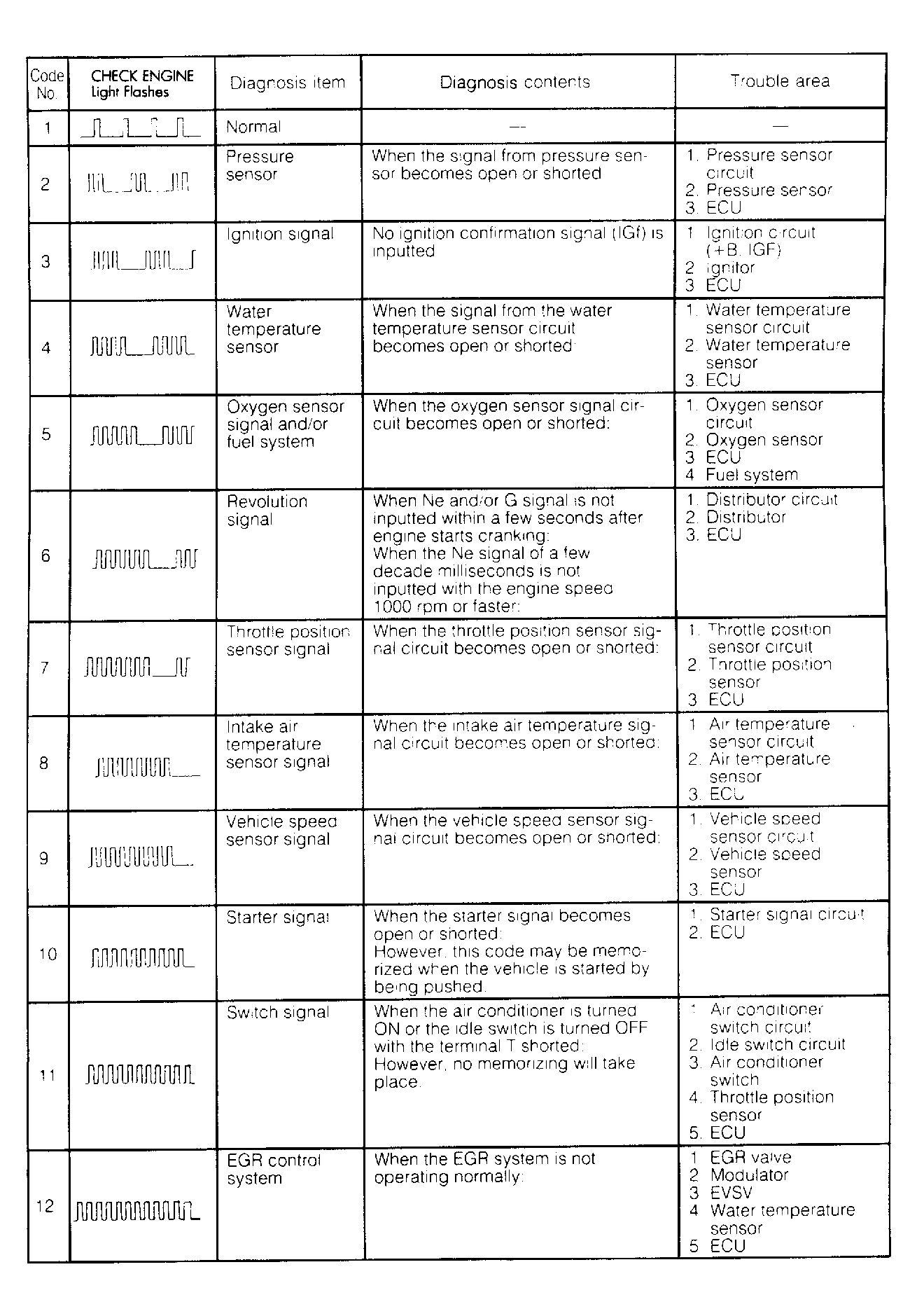

Fig 1: Diagnostic Code ID Charade 1.0L
Courtesy of DAIHATSU MOTOR CO., LTD.
Courtesy of DAIHATSU MOTOR CO., LTD.
