Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block
Engine Compartment In left front corner, of engine compartment, near battery.

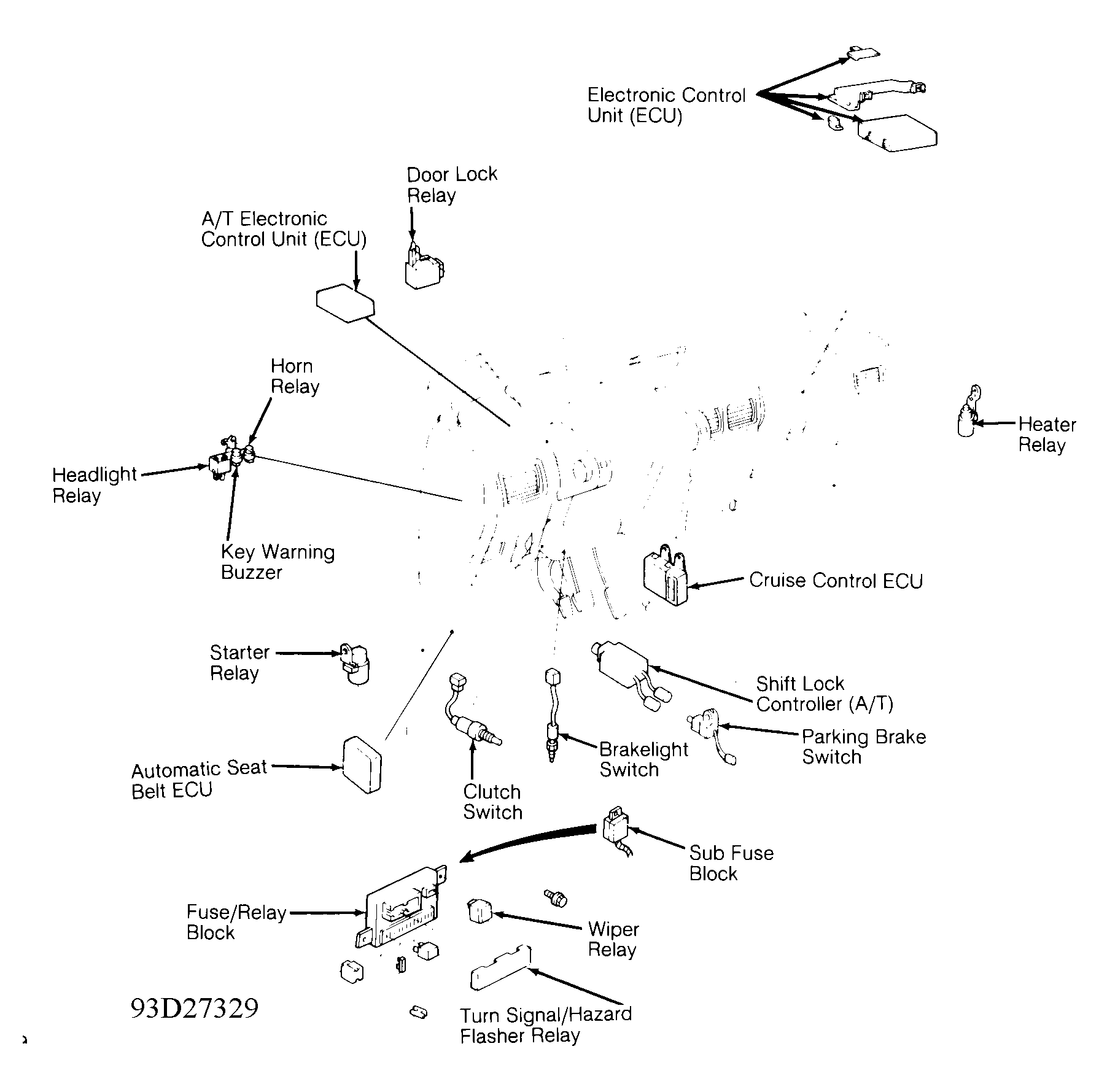

Passenger Compartment Under left side of dash. See Figure .
Fusible Links At positive battery cable.
Power Window Circuit Breaker In sub fuse block.
Sub Fuse Block Under left side of dash, to right of fuse/relay block. See Figure .
