Checking Fluid Level
- Start the engine and allow the engine to idle for approximately 5 minutes, or if possible, drive the vehicle for a few miles to warm the transaxle fluid. Check the fluid level when the transaxle is above 104°F (40°C).
- Park the vehicle on a hoist, inspection pit or similar raised level surface. The vehicle must be level to obtain a correct fluid level measurement.
- Place a fluid container below the fluid level plug.
- Press the brake pedal and move the shift lever through the gear ranges, pausing a few seconds in each range. Return the shift lever to Park position.

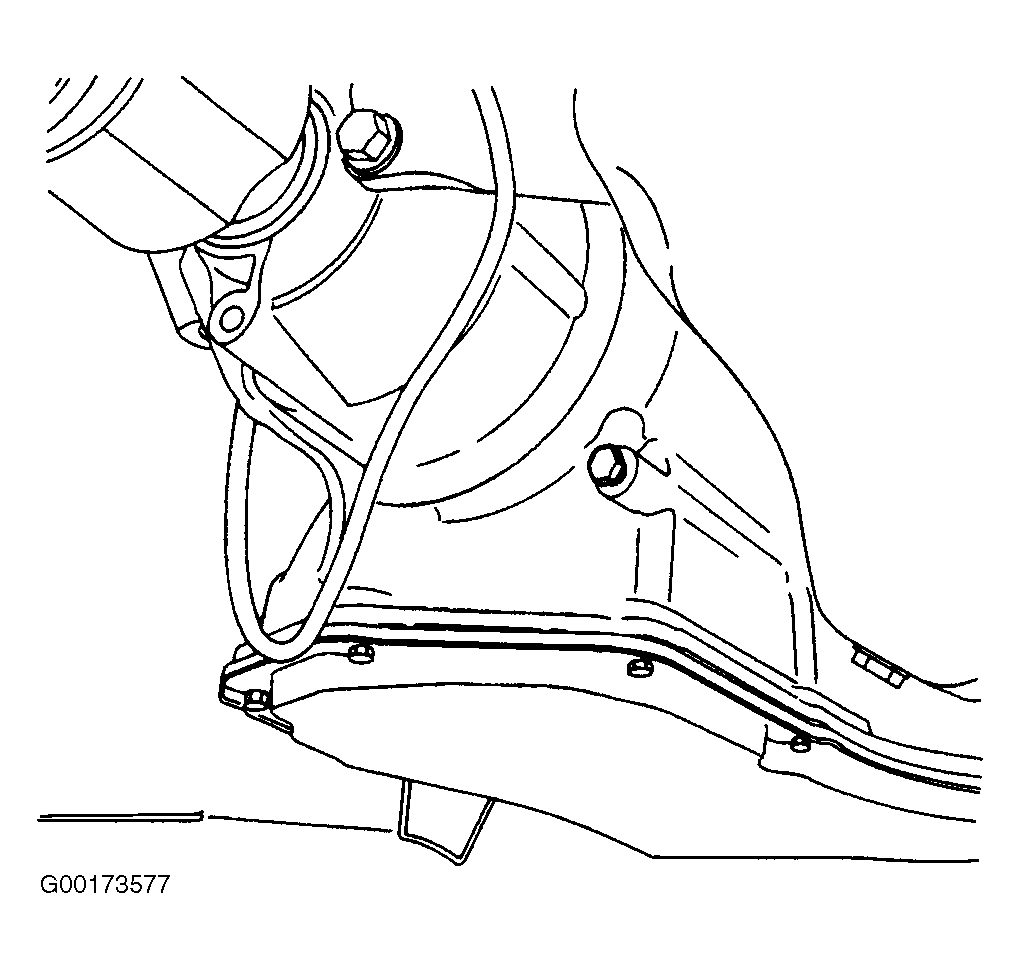

- Remove the fluid level plug. See Fig 1 . Because the transaxle operates correctly over a range of fluid levels, fluid may or may not drain out of the plug hole when the plug is removed.
- If fluid does not drain through the plug hole after adding a total of 1.5 liters, the transaxle was either under filled or is leaking fluid. Inspect the transaxle for fluid leaks. Fix any leaks before setting the transaxle fluid level.
- Install the fluid level plug. Tighten to specification. See TORQUE SPECIFICATIONS . When the fluid level checking procedure is completed, wipe any fluid from the transaxle case with a rag or shop towel. Also, check that the fluid fill cap and the vent tube are properly installed.
WARNING:
Do not remove the fluid level plug if the transaxle fluid is hot. This may cause injury if the fluid drains from the plug hole.
