DTC P0201: Injector 1 Circuit Fault

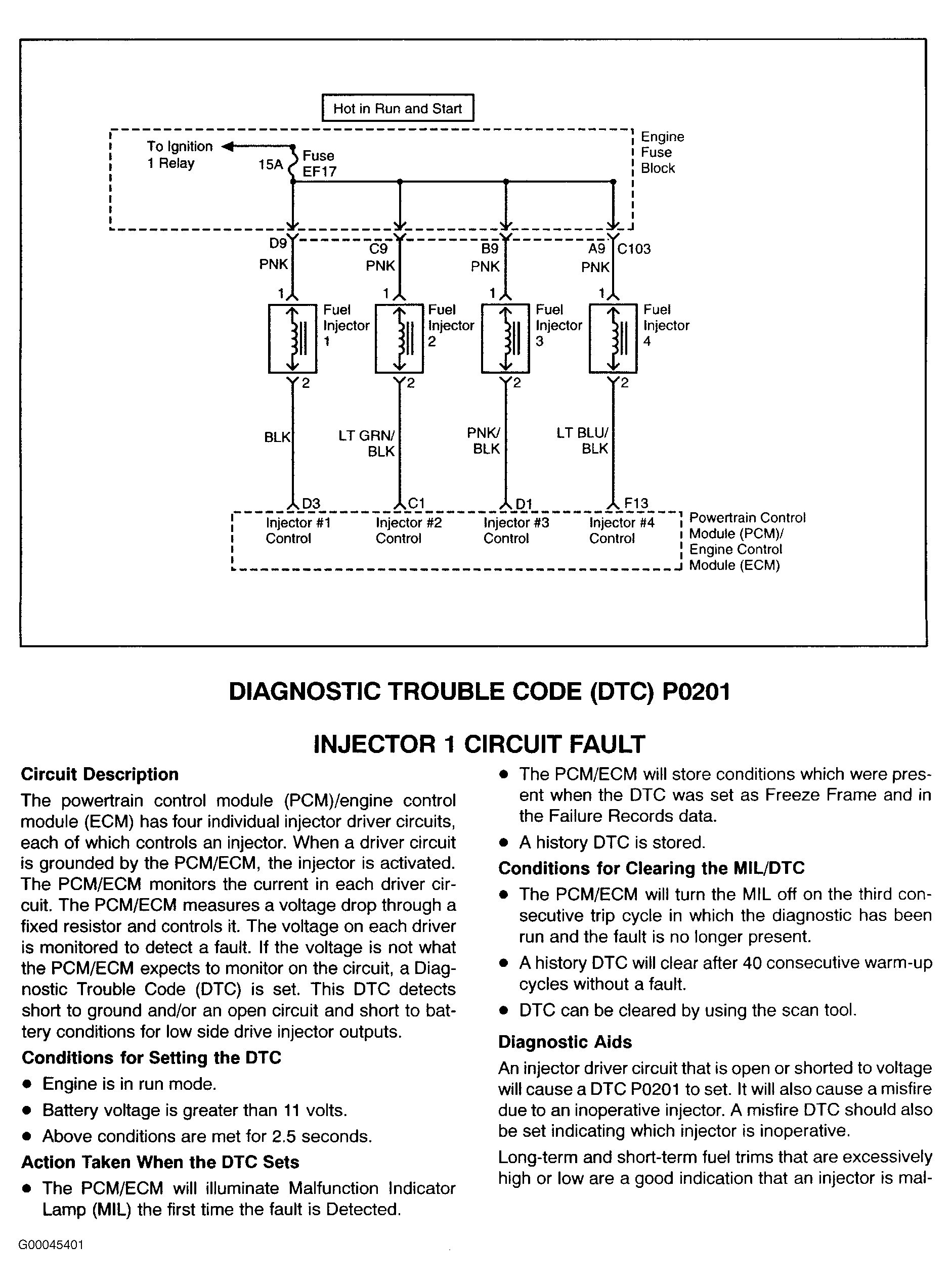

Fig 1: DTC P0201: Injector 1 Circuit Fault (1 Of 3)
G00045401Courtesy of DAEWOO MOTOR AMERICA, INC.

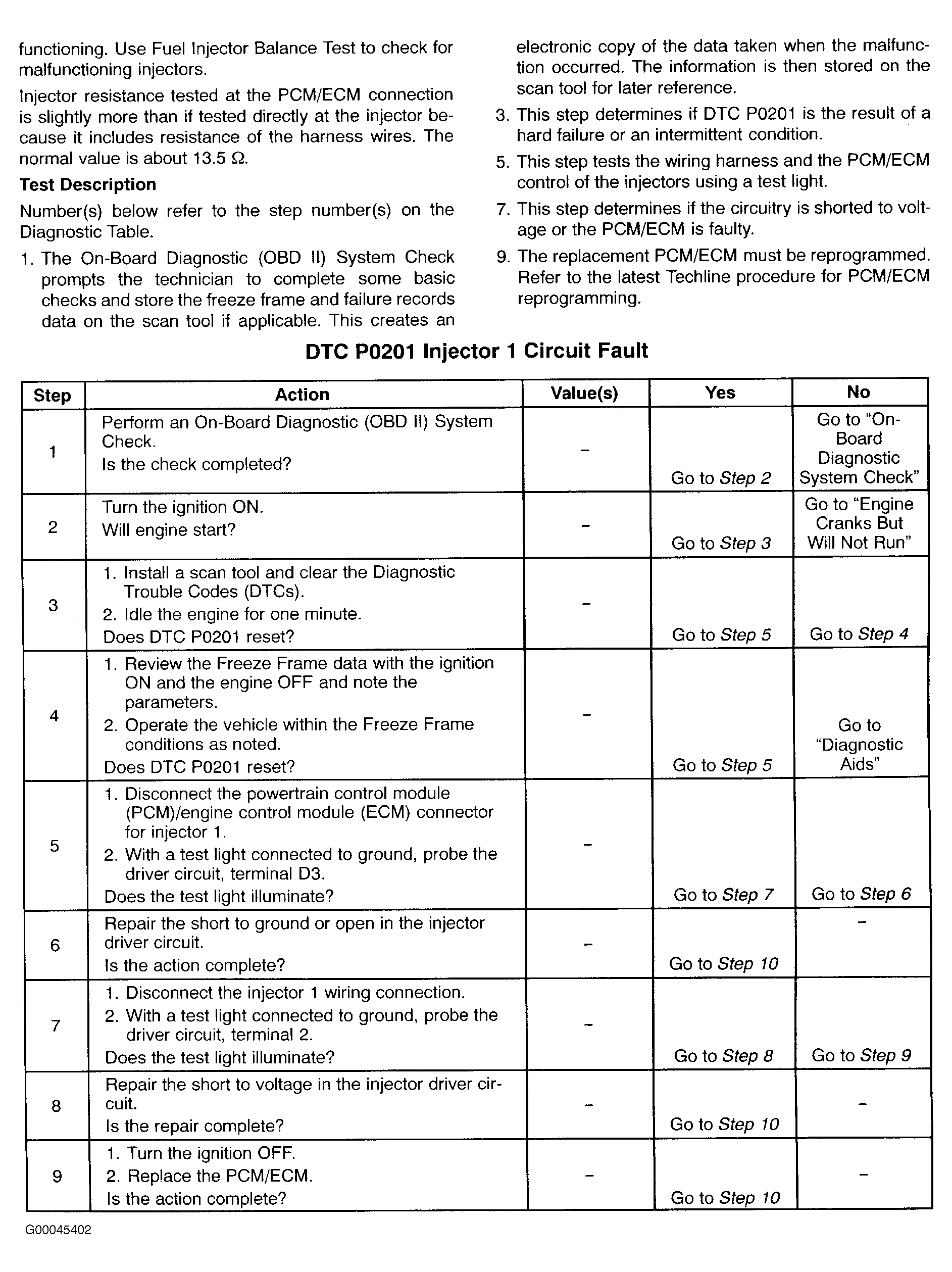

Fig 2: DTC P0201: Injector 1 Circuit Fault (2 Of 3)
G00045402Courtesy of DAEWOO MOTOR AMERICA, INC.

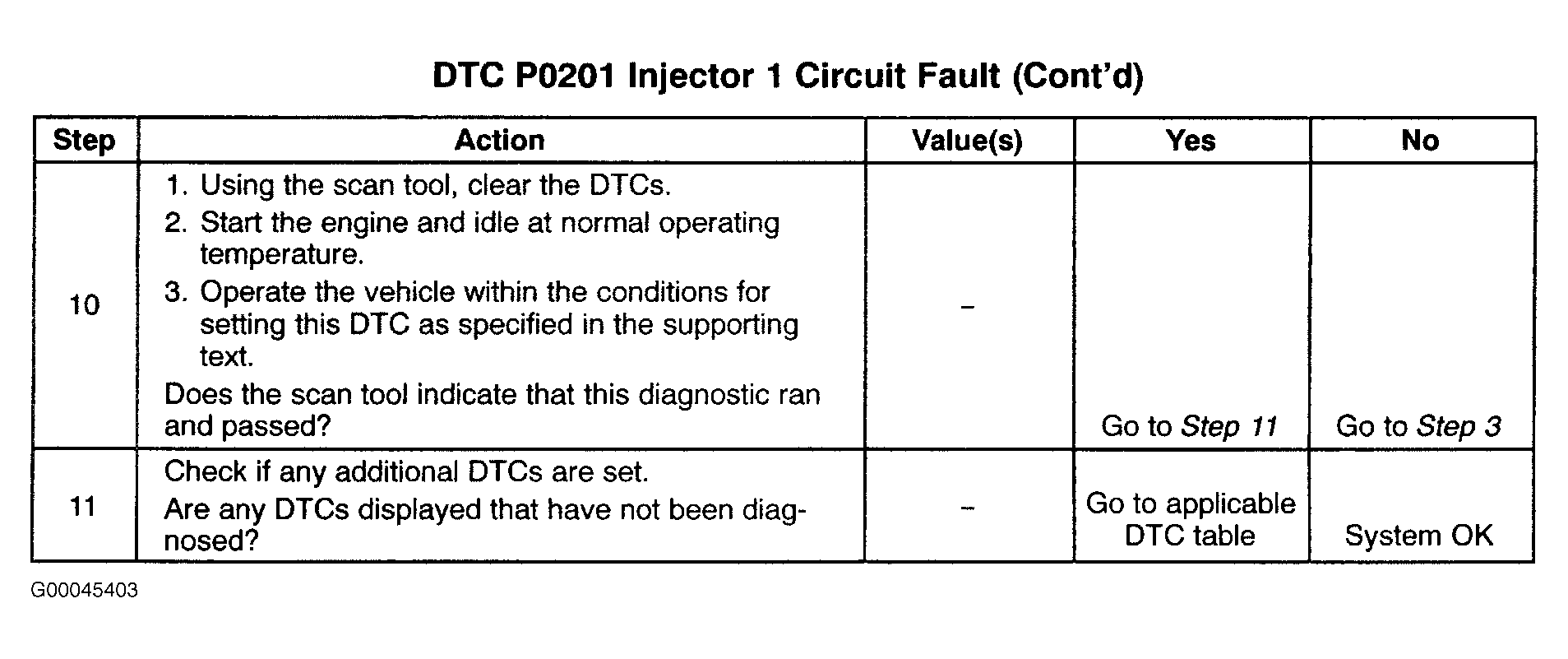

Fig 3: DTC P0201: Injector 1 Circuit Fault (3 Of 3)
G00045403Courtesy of DAEWOO MOTOR AMERICA, INC.
