DTC P1625: ECM Internal System Reset

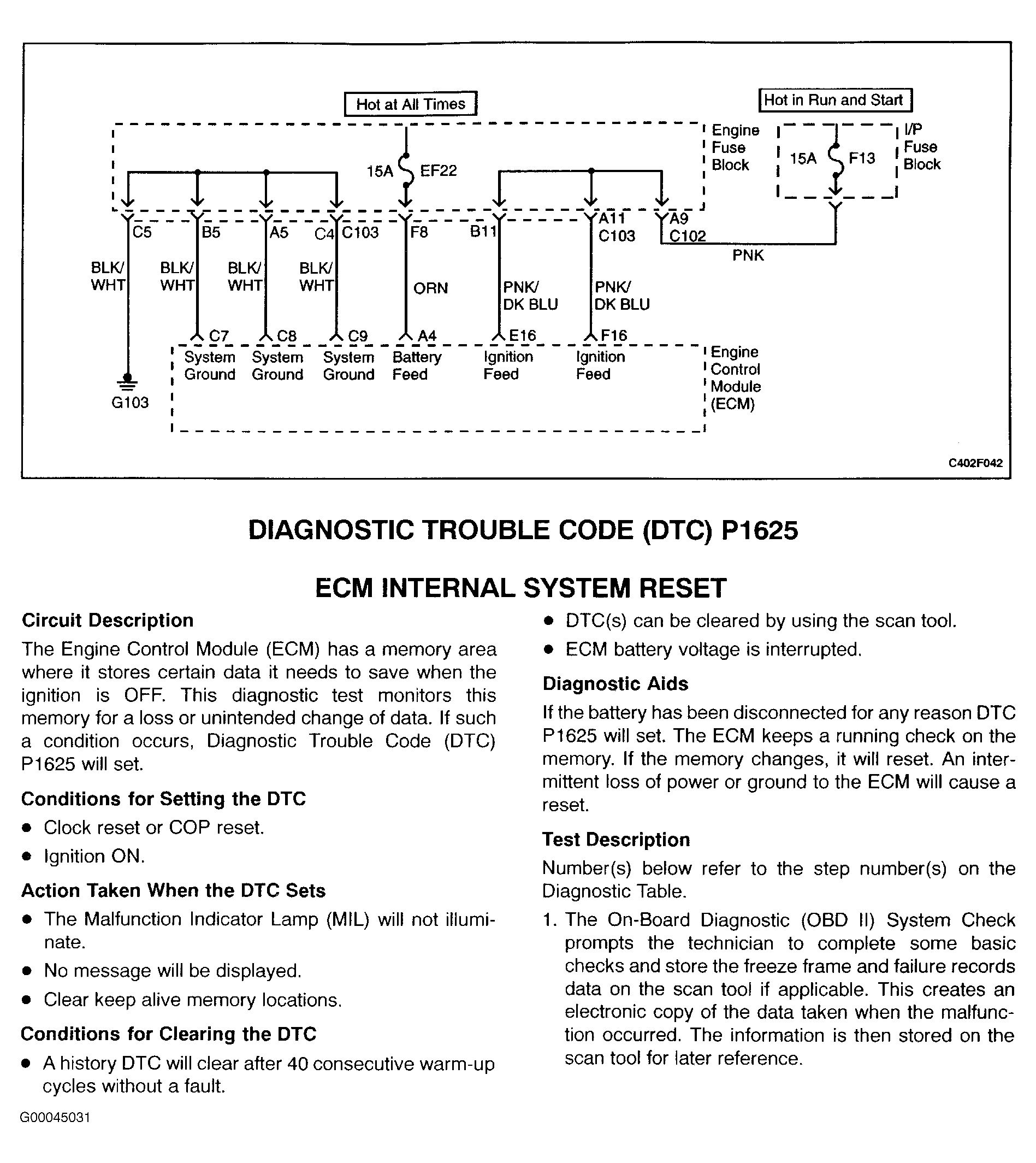

Fig 1: DTC P1625: ECM Internal System Reset (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

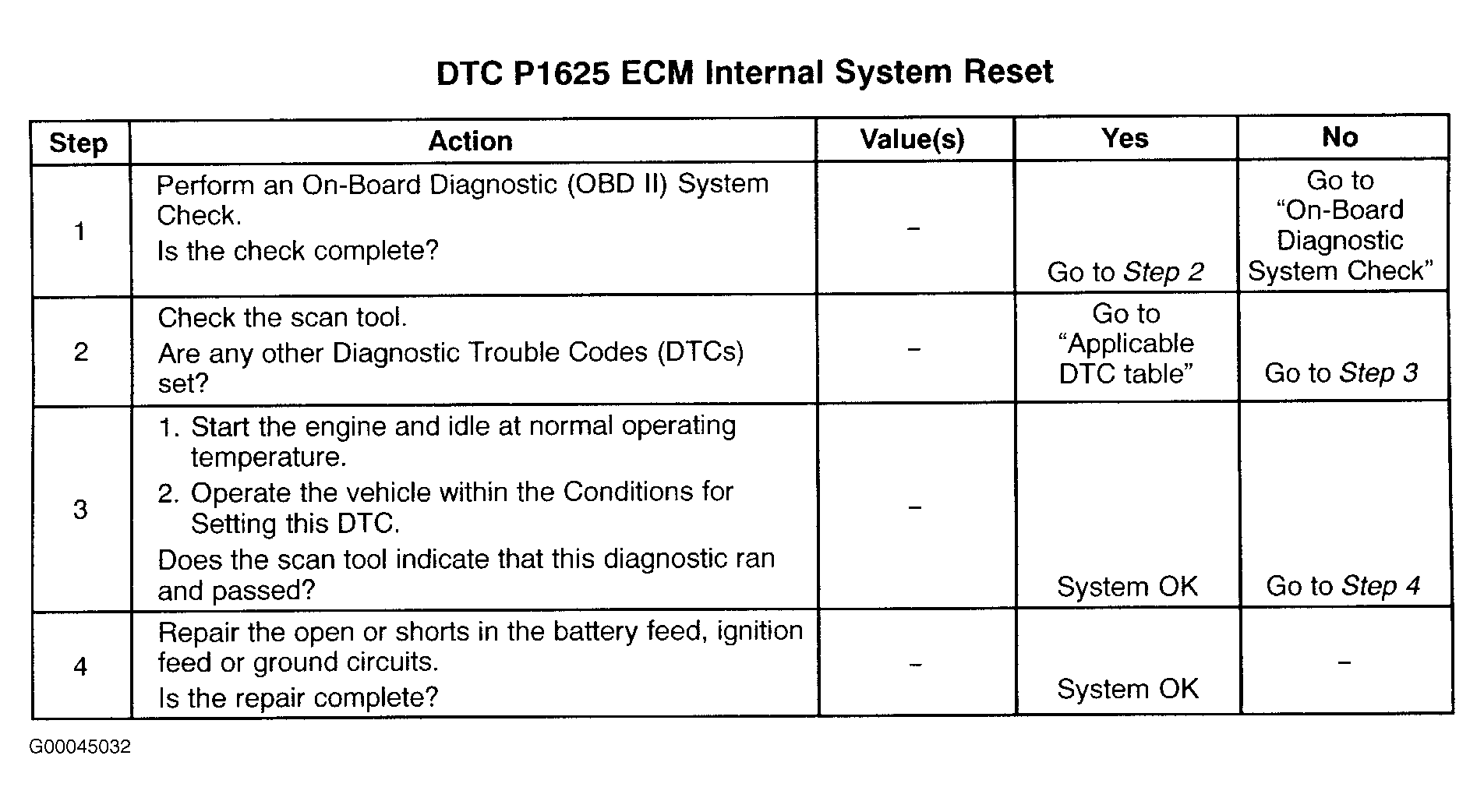

Fig 2: DTC P1625: ECM Internal System Reset (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
