DTC P0404: Exhaust Gas RECIRCULATION Open Valve Position Error

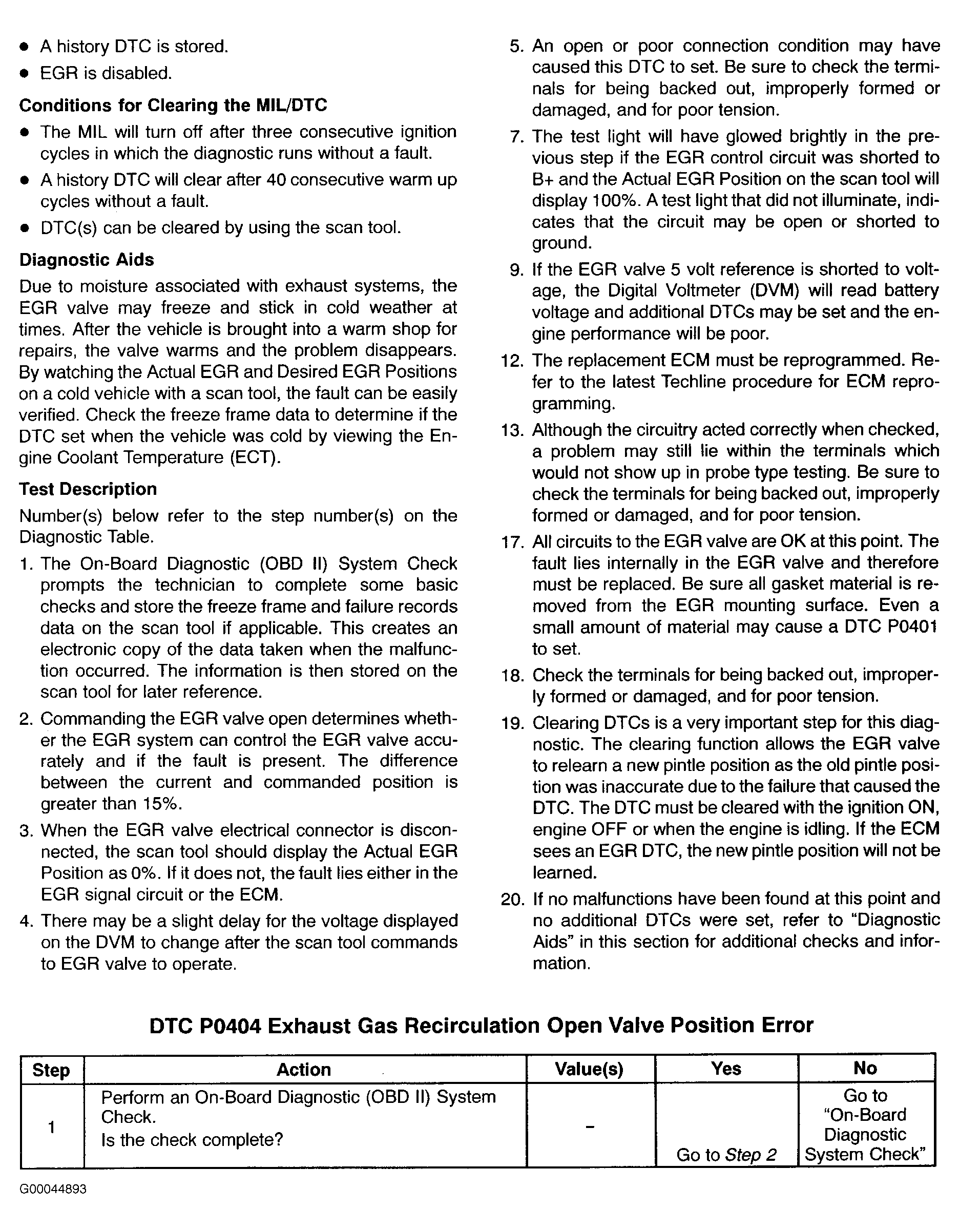

Fig 1: DTC P0404: Exhaust Gas Recirculation Open Valve Position Error (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

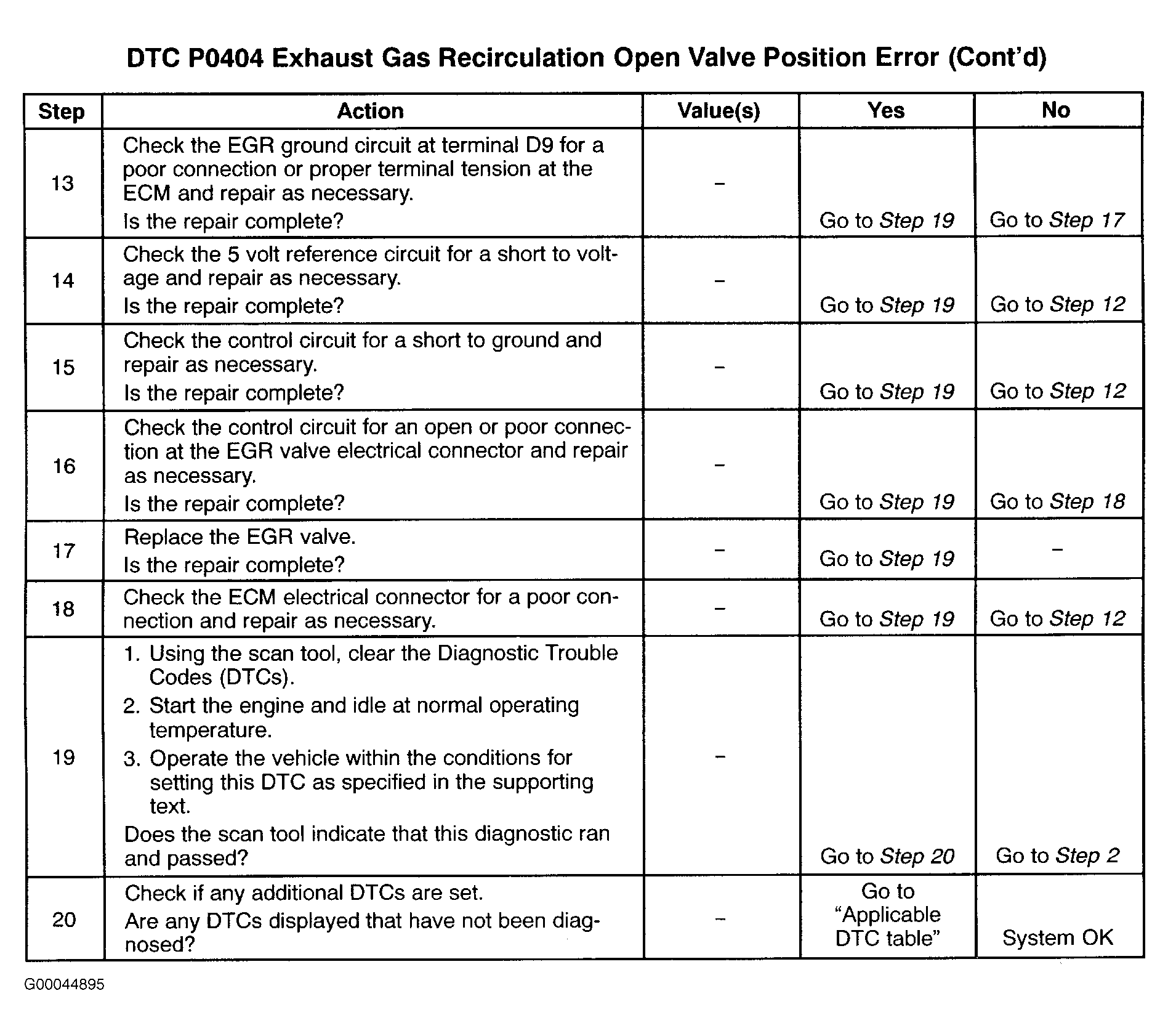

Fig 2: DTC P0404: Exhaust Gas Recirculation Open Valve Position Error (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

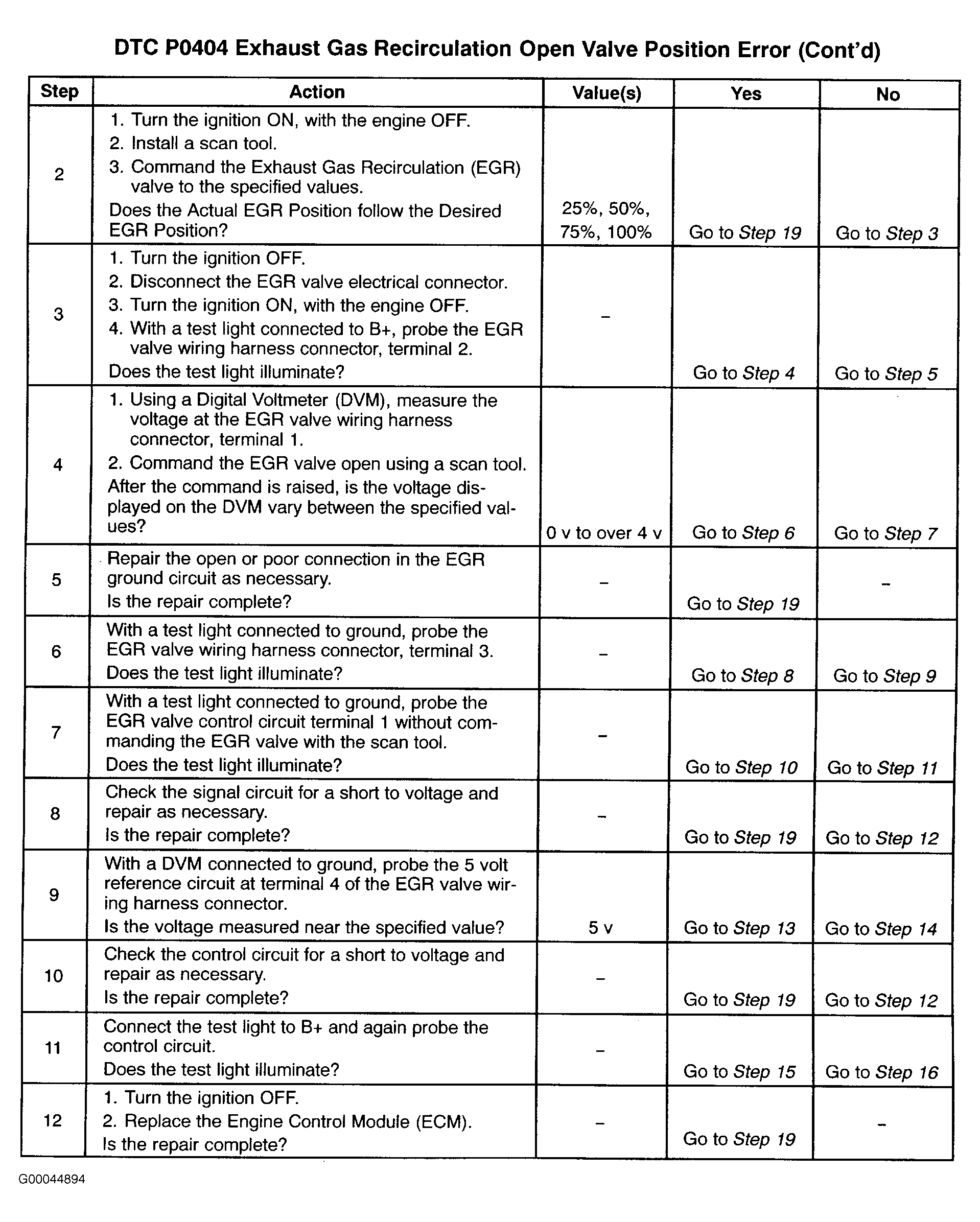

Fig 3: DTC P0404: Exhaust Gas Recirculation Open Valve Position Error (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

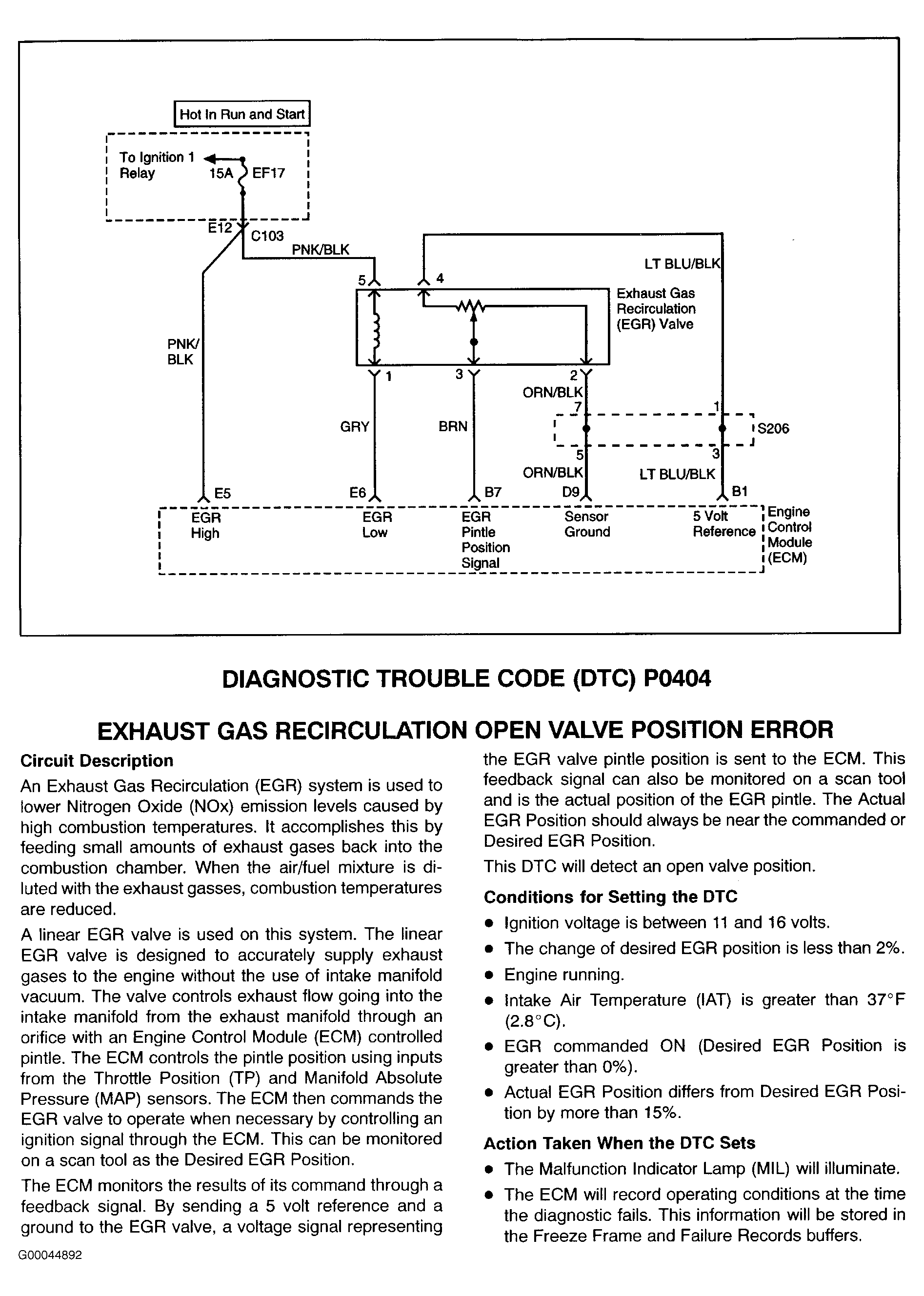

Fig 4: DTC P0404: Exhaust Gas Recirculation Open Valve Position Error (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
