Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

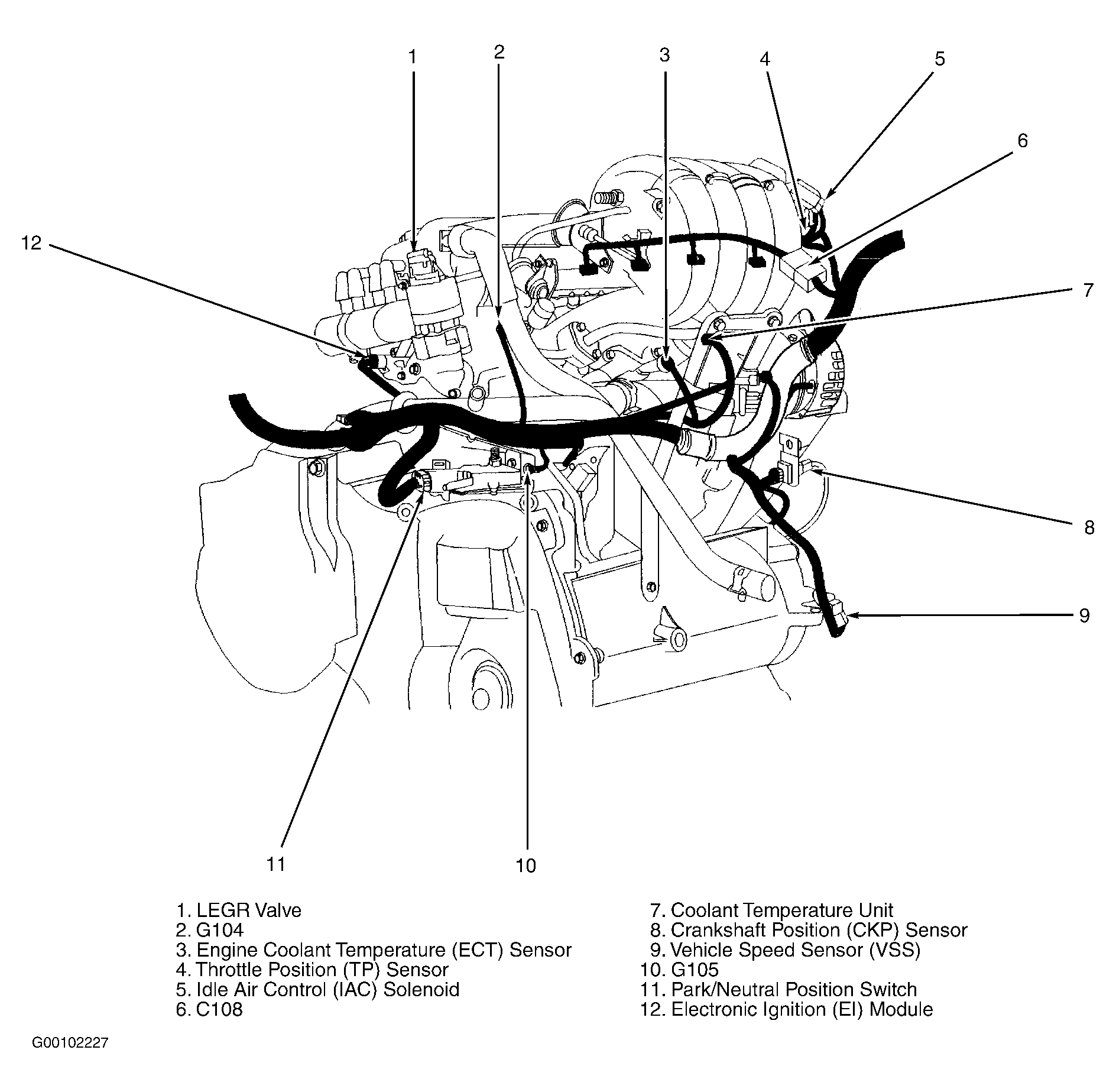

Fig 1: Right Side Of Engine
G00102227Courtesy of DAEWOO

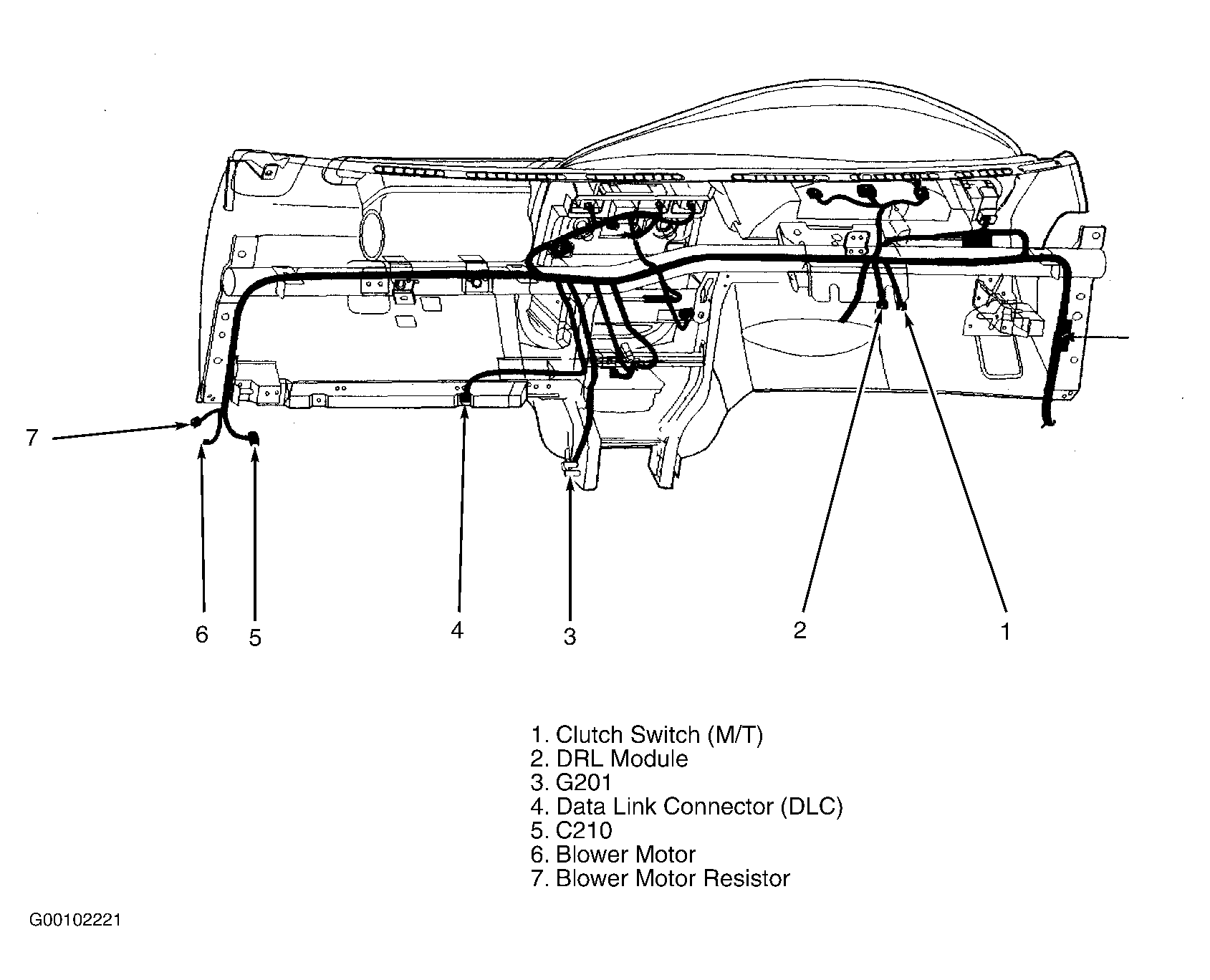

Fig 2: Dash
G00102221Courtesy of DAEWOO
