Home >> Daewoo >> 2001 >> Lanos Sport, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock >> Removal & Installation >> System Components >> Front Wheel Speed Sensor

Front Wheel Speed Sensor

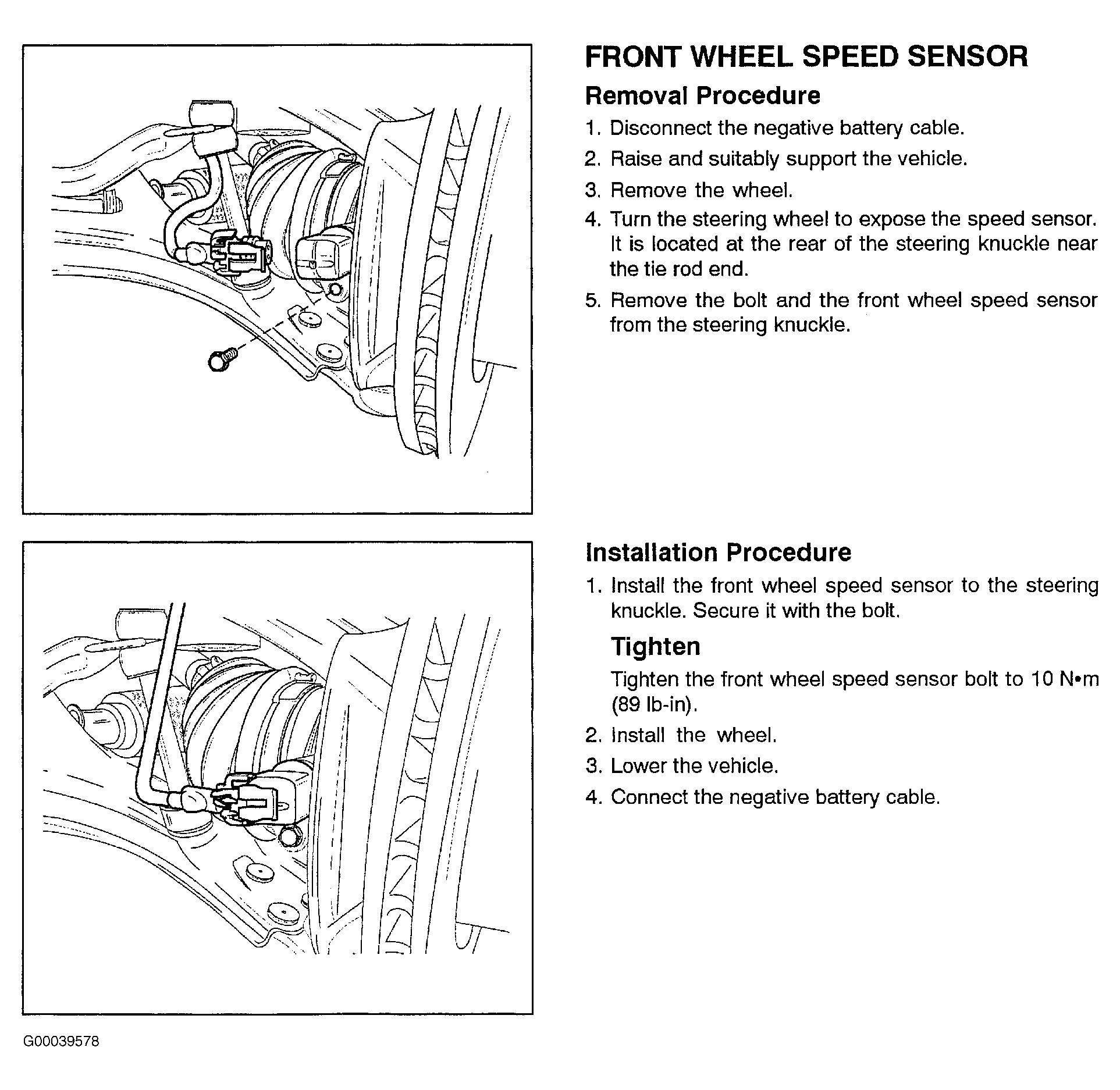

Fig 1: Identifying Front Wheel Speed Sensor

G00039578

Courtesy of DAEWOO MOTOR AMERICA, INC.
