Electronic Components

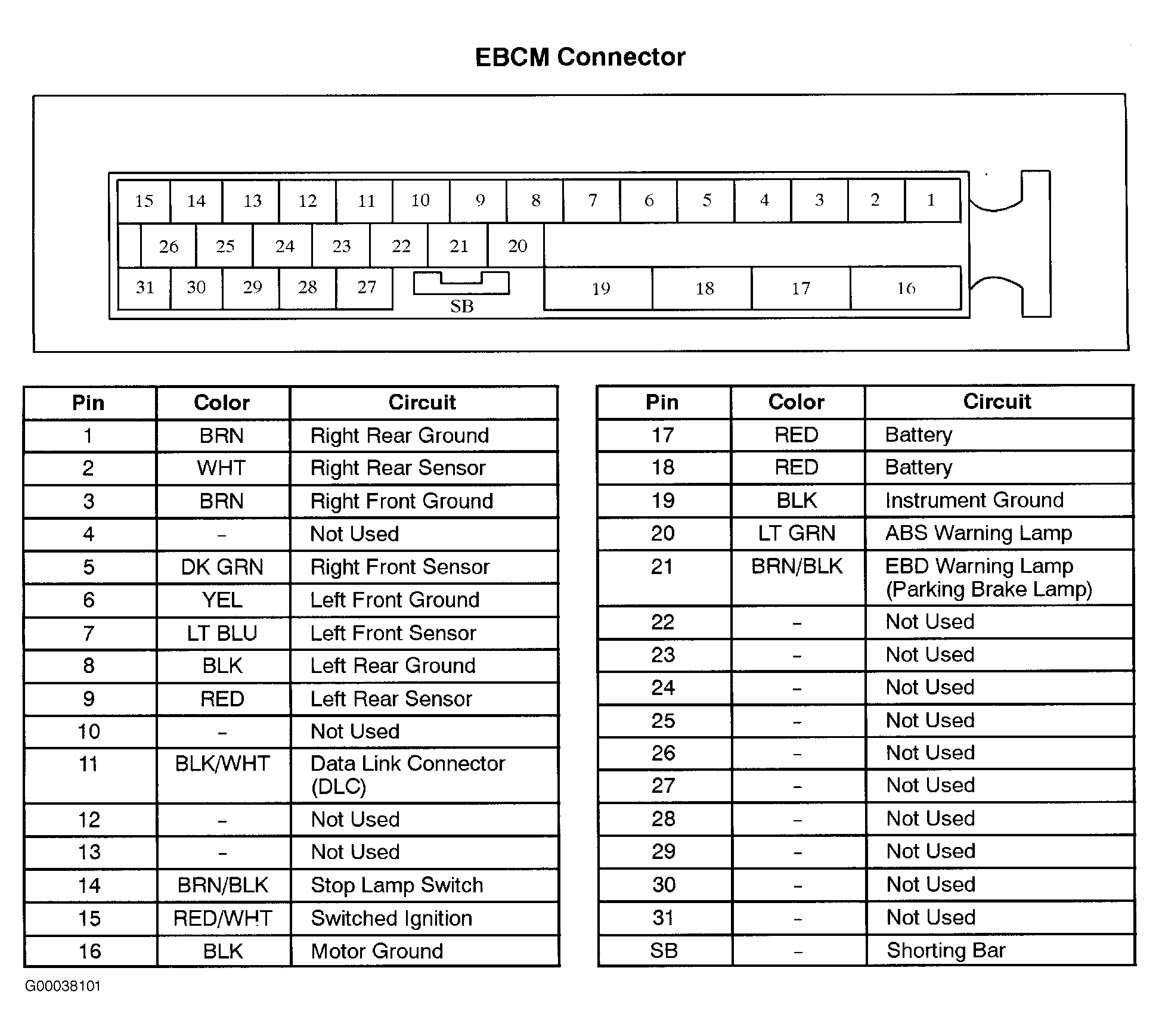

Fig 1: EBCM Connector Face View
G00038101Courtesy of DAEWOO MOTOR AMERICA, INC.

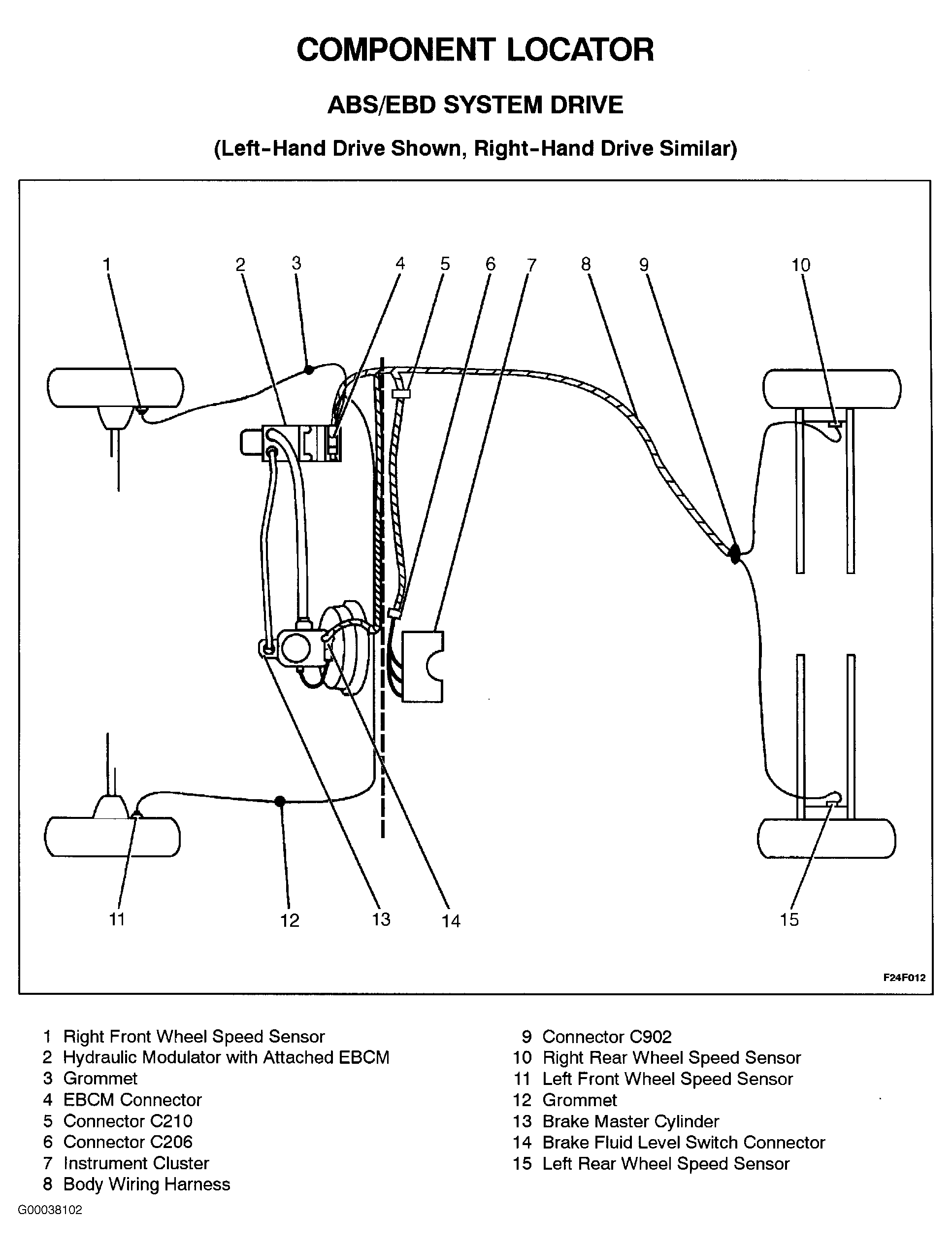

Fig 2: EBCM Component Locator ABS/EBD System Drive
G00038102Courtesy of DAEWOO MOTOR AMERICA, INC.
