Symptom Diagnosis: Backfire

Fuel ignites in intake manifold, or in exhaust system, making a loud popping noise.

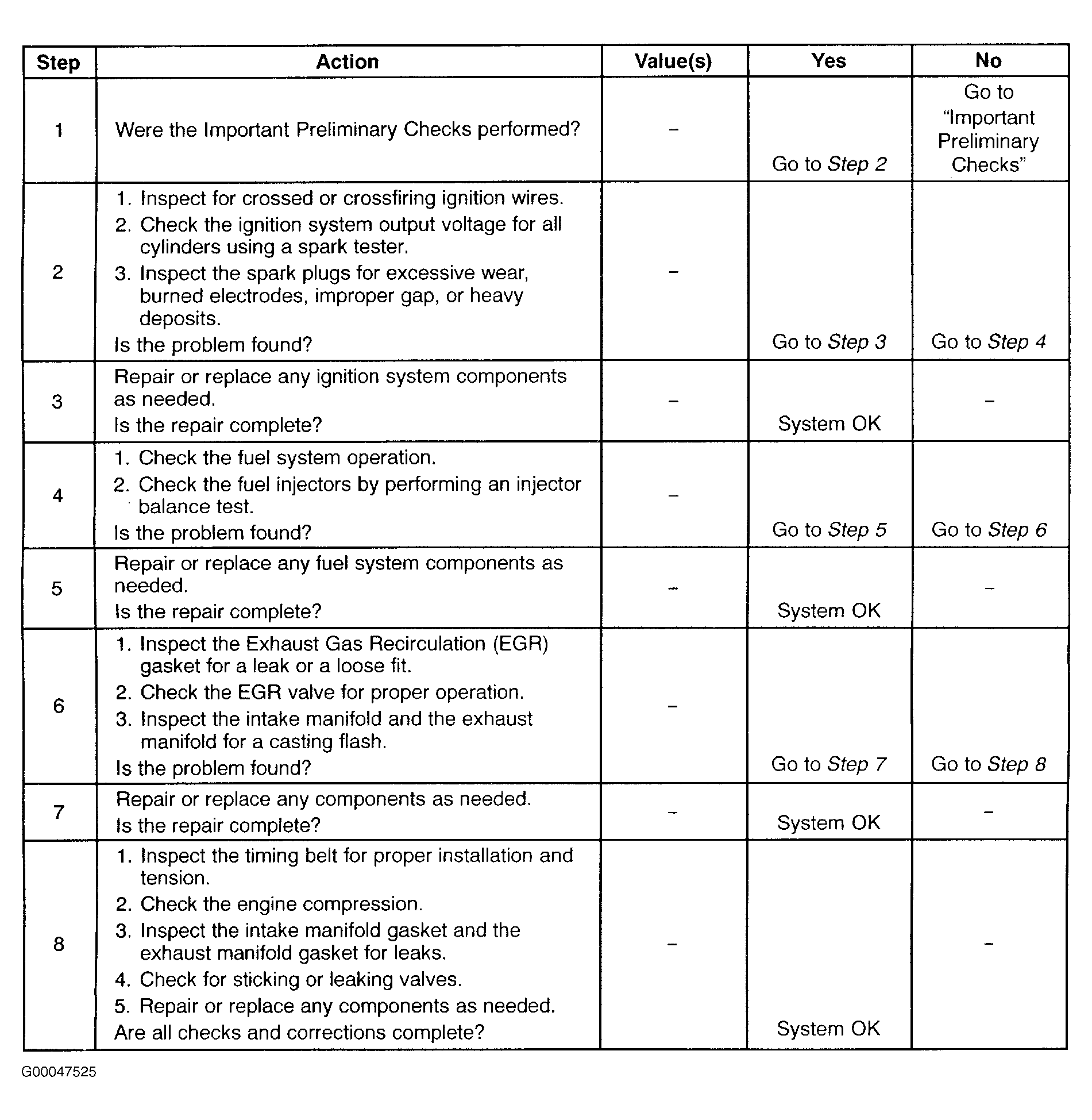

Fig 1: Backfire Diagnostic Chart

G00047525

Courtesy of DAEWOO MOTOR AMERICA, INC.
