Home >> Daewoo >> 2000 >> Nubira SE, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Trouble Shooting >> Manifold Absolute Pressure Check

Manifold Absolute Pressure Check

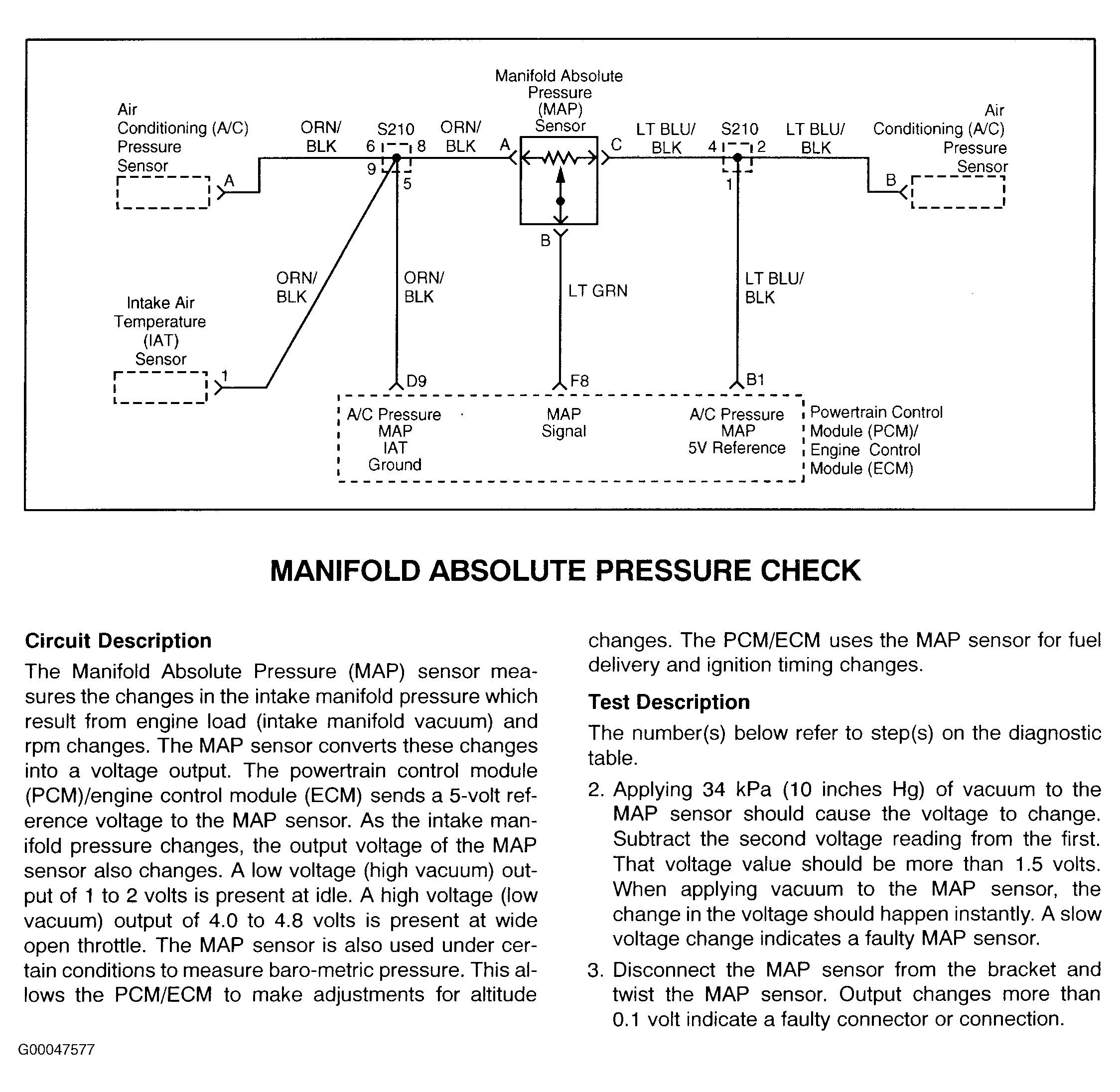

Fig 1: Manifold Absolute Pressure Check (1 Of 2)
G00047577Courtesy of DAEWOO MOTOR AMERICA, INC.

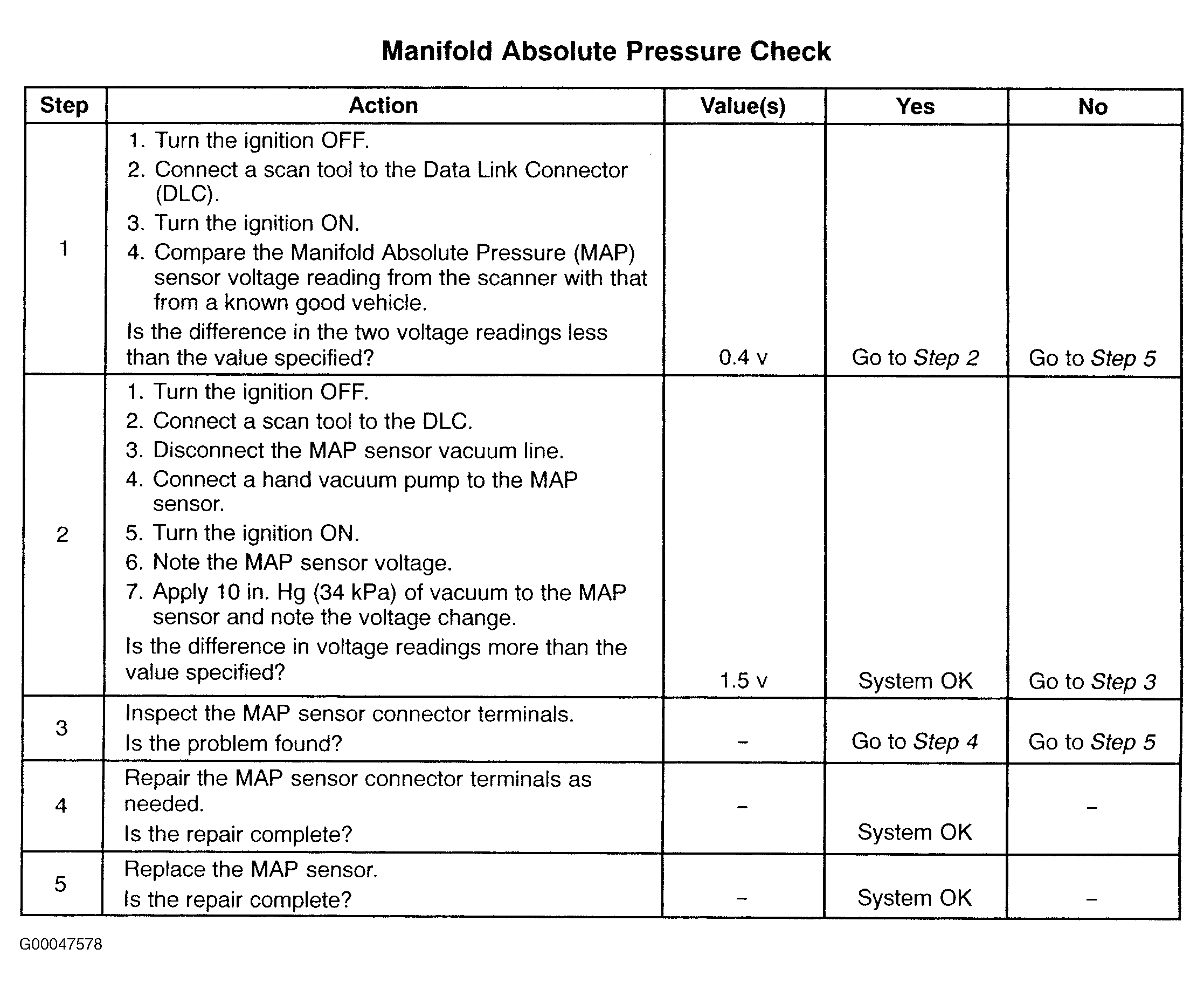

Fig 2: Manifold Absolute Pressure Check (2 Of 2)
G00047578Courtesy of DAEWOO MOTOR AMERICA, INC.
