Data Link Connector Diagnosis

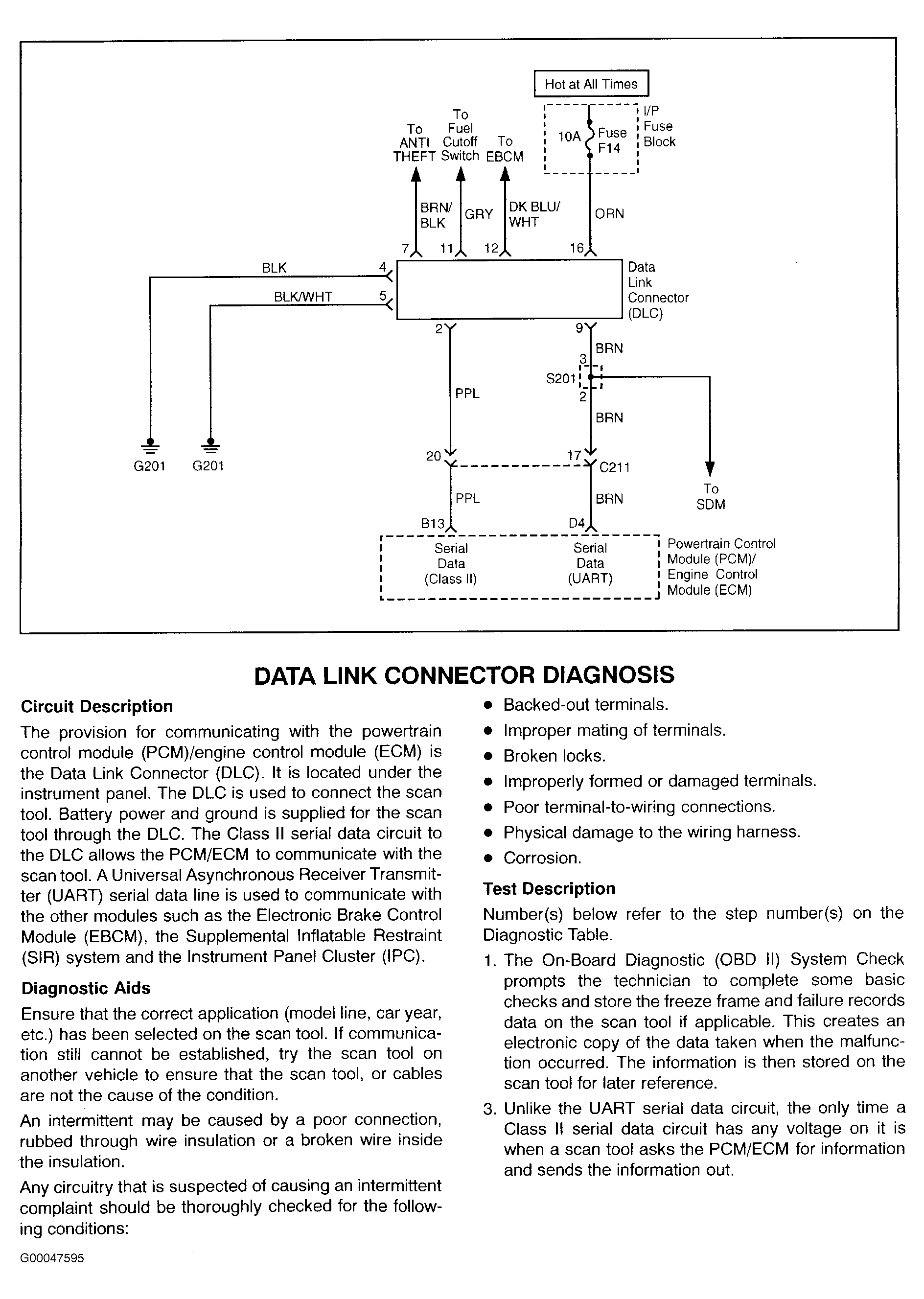

Fig 1: Data Link Connector Diagnosis (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

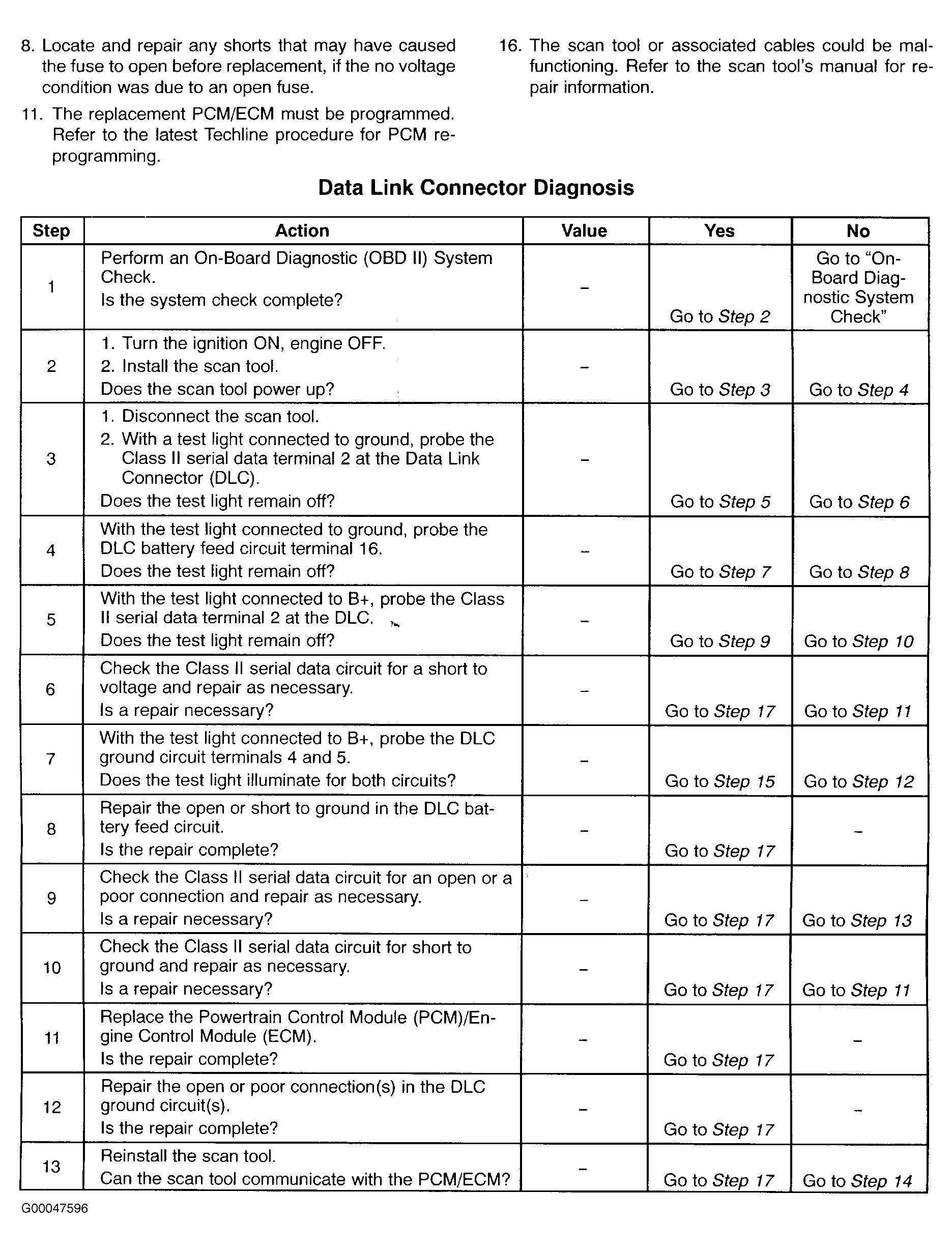

Fig 2: Data Link Connector Diagnosis (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

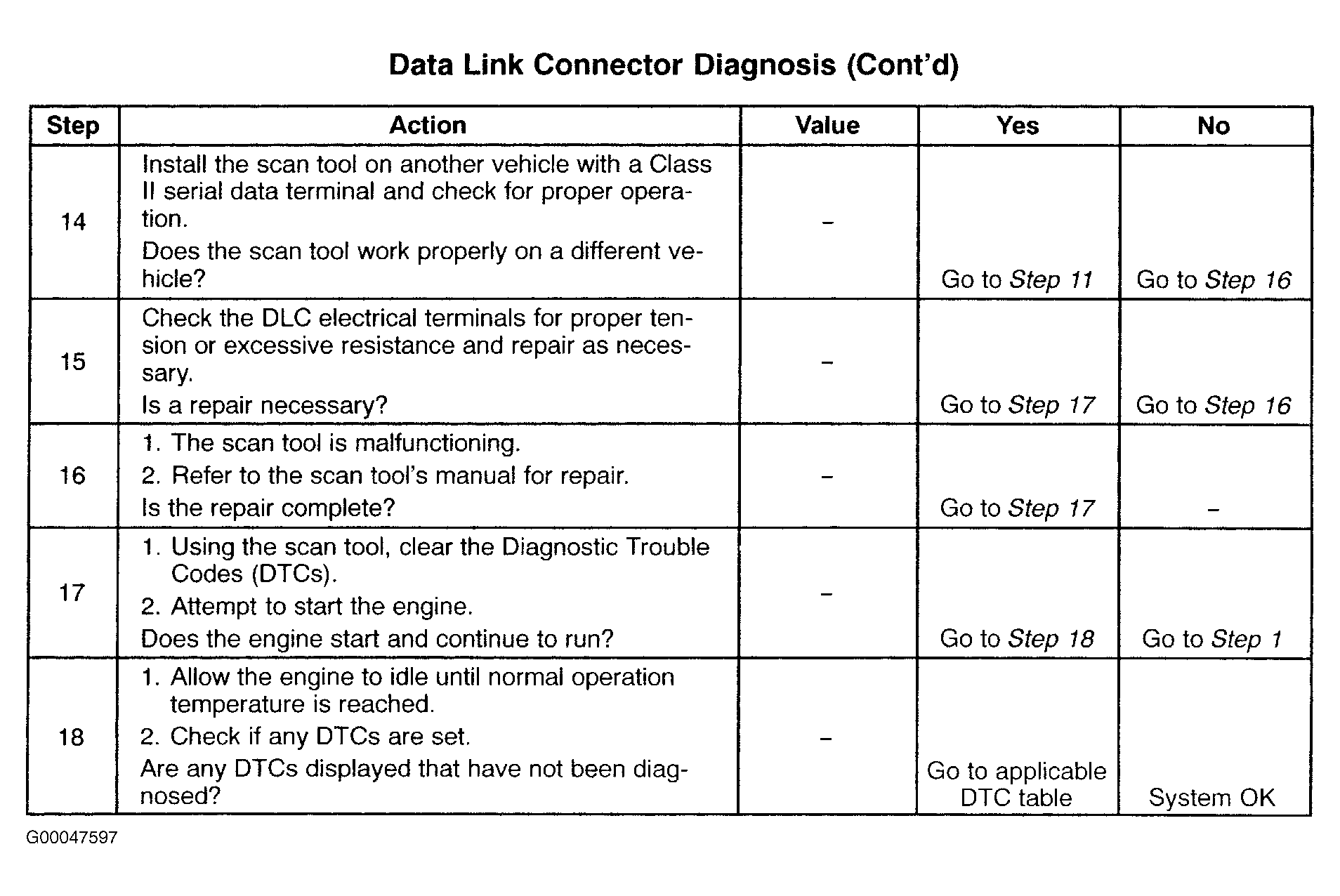

Fig 3: Data Link Connector Diagnosis (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
