Wiring Diagrams

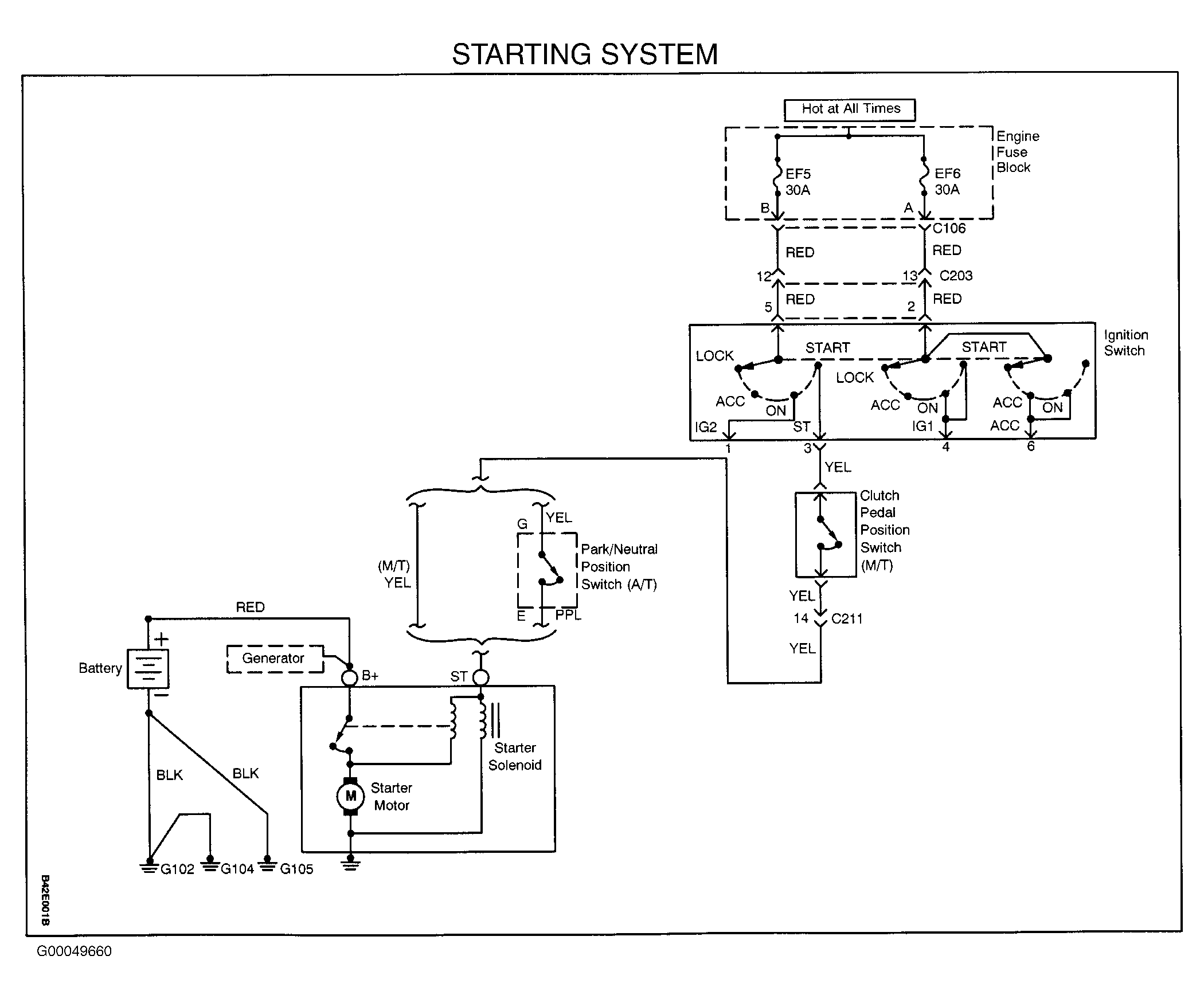

Fig 1: Starting System Wiring Diagram

G00049660

Courtesy of DAEWOO MOTOR AMERICA, INC.
