Daewoo
>>
2000
>>
Nubira SE, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Wiring Diagrams
Wiring Diagrams

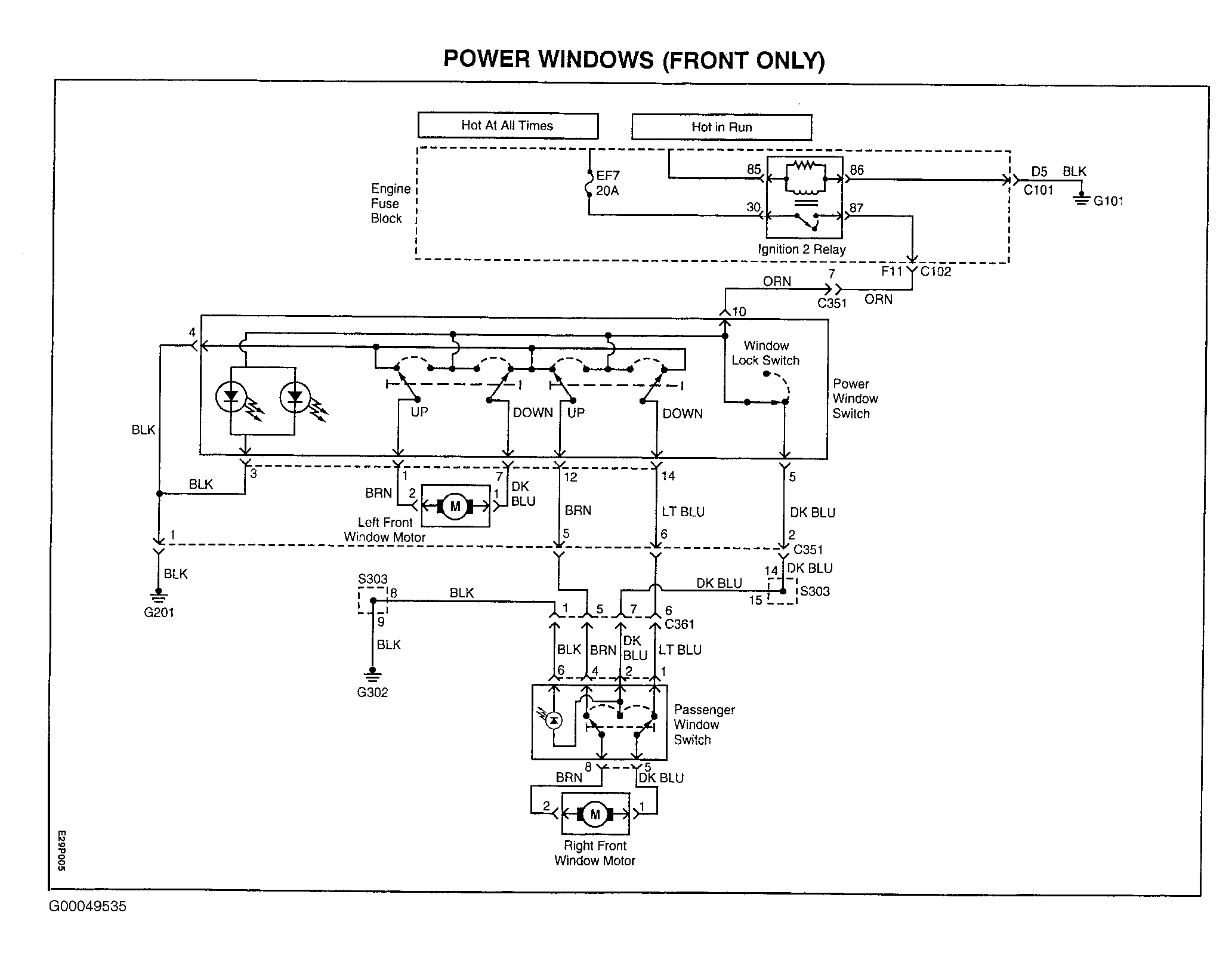

Fig 1: Power Window Wiring Diagram (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

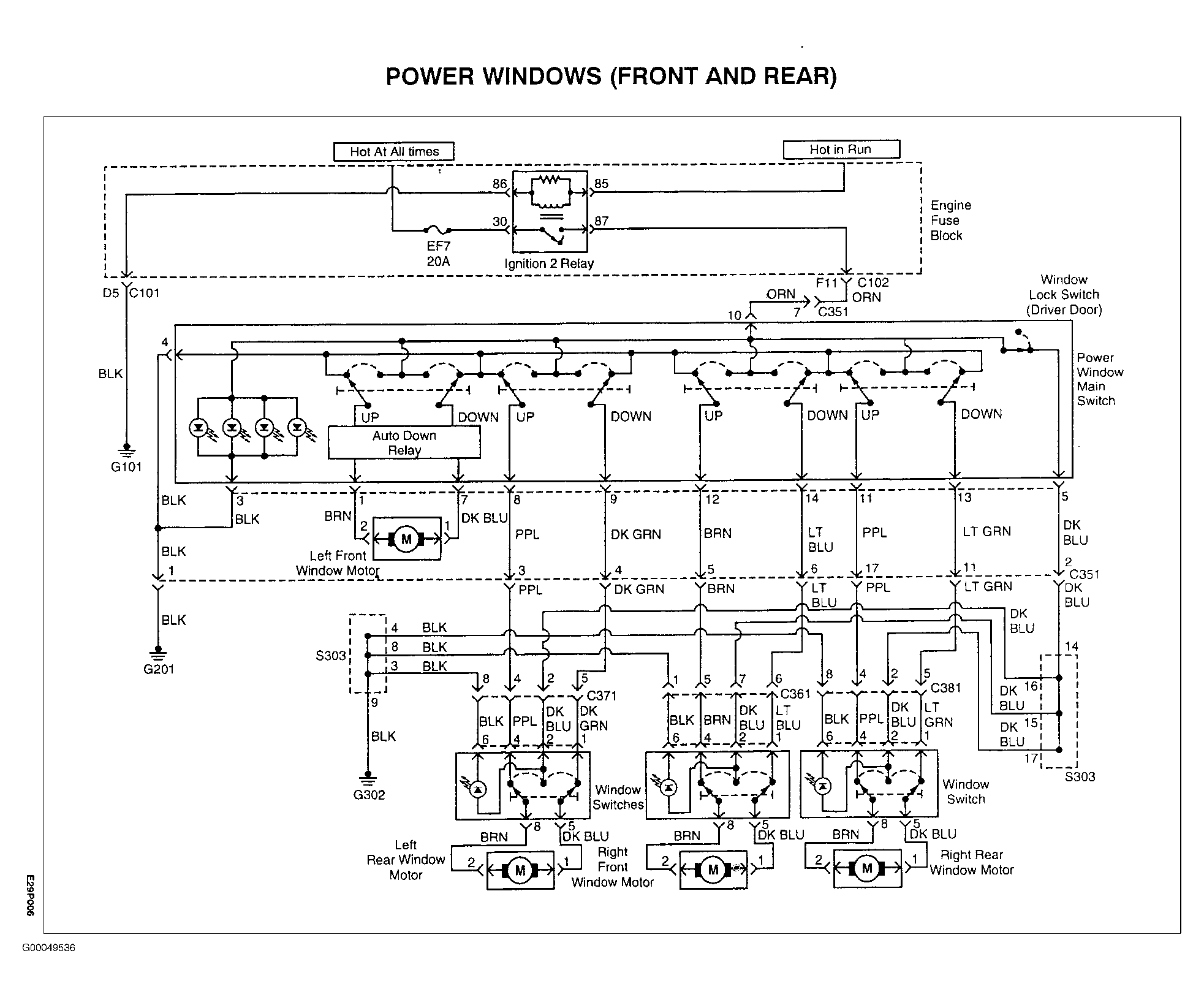

Fig 2: Power Window Wiring Diagram (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
