Component Locators
Component Locators

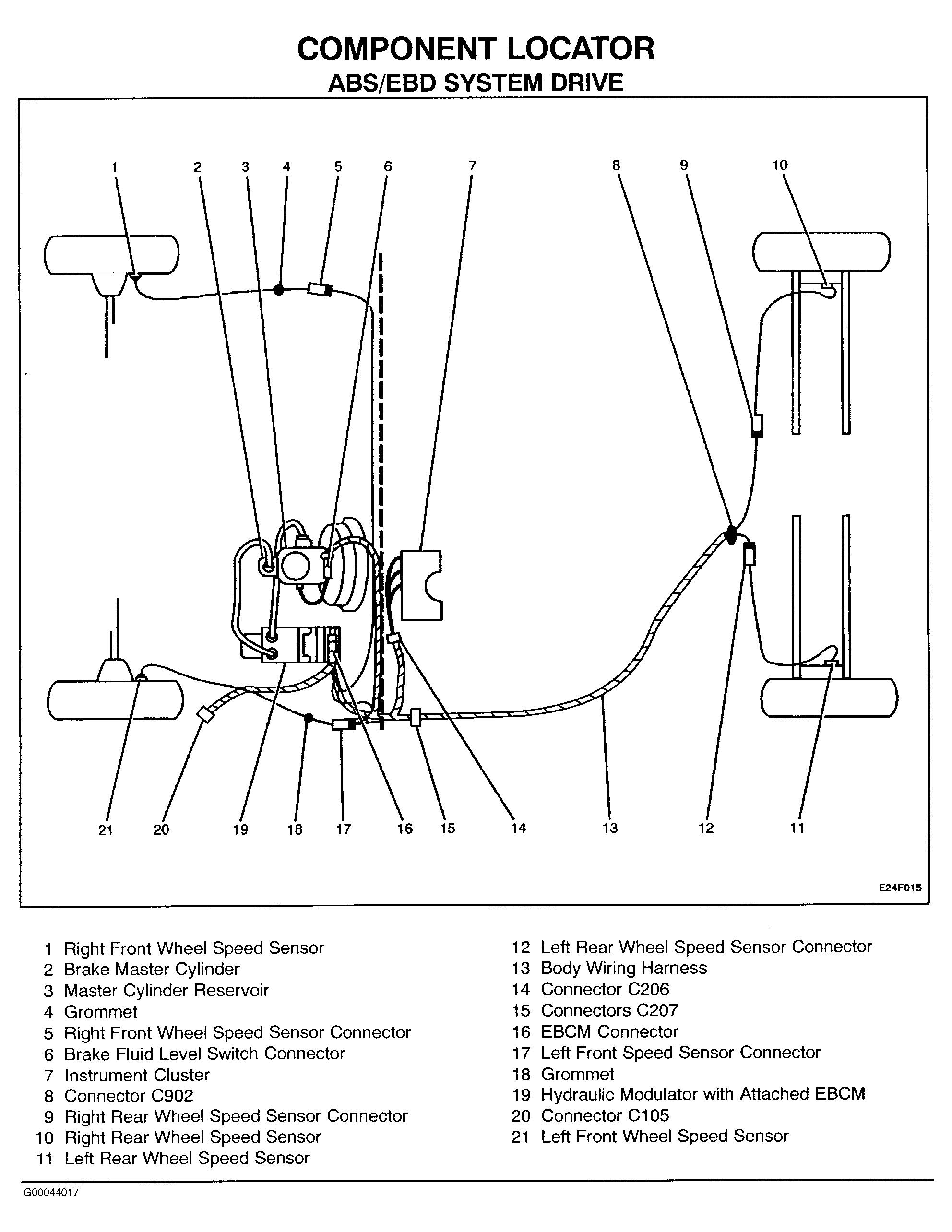

Fig 1: ABS/EBD System
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
