Engine Controls - Self-Diagnostics
>>
Symptom Diagnosis
>>
Park/Neutral Position Switch
Park/Neutral Position Switch

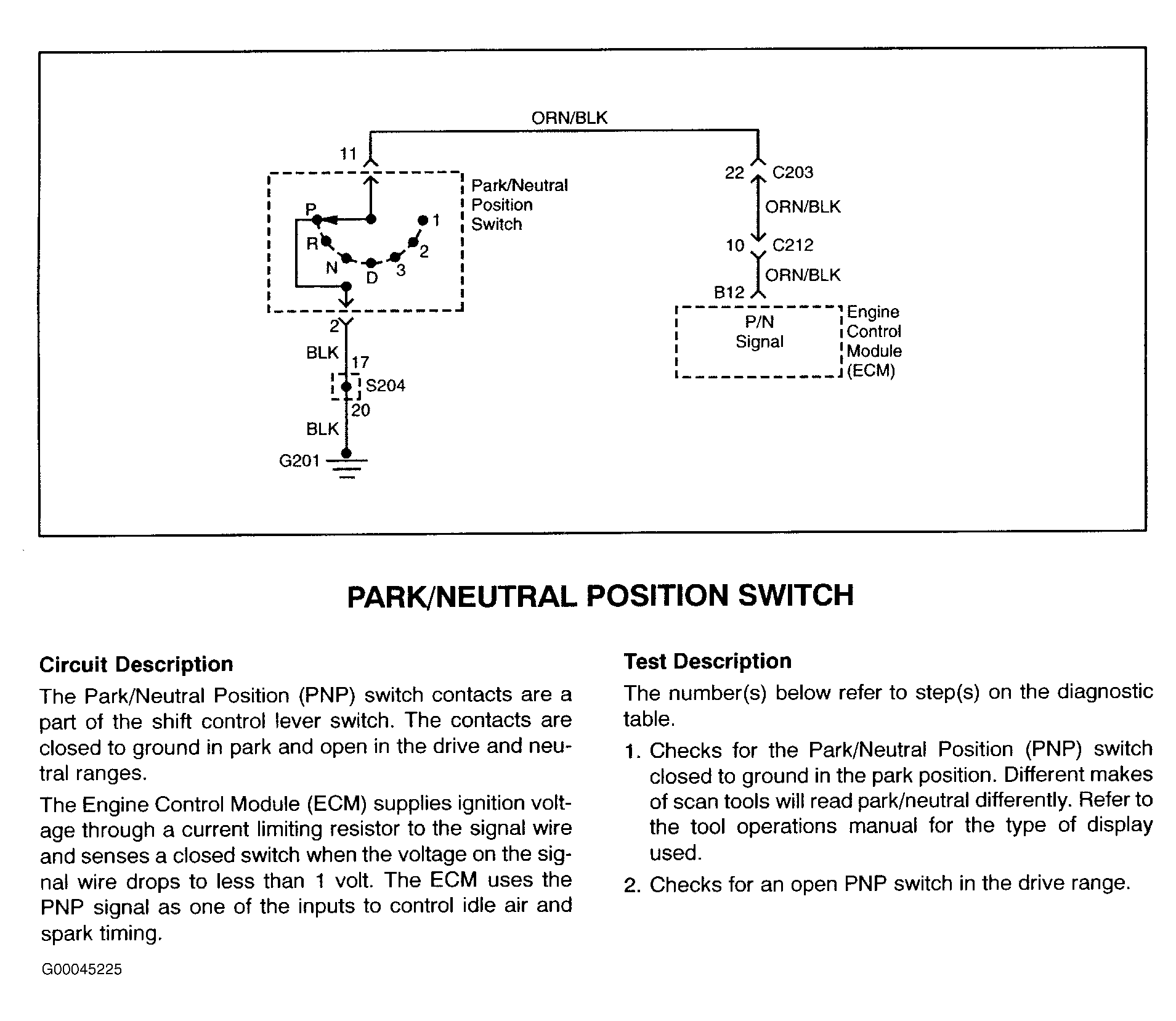

Fig 1: Park/Neutral Position Switch (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

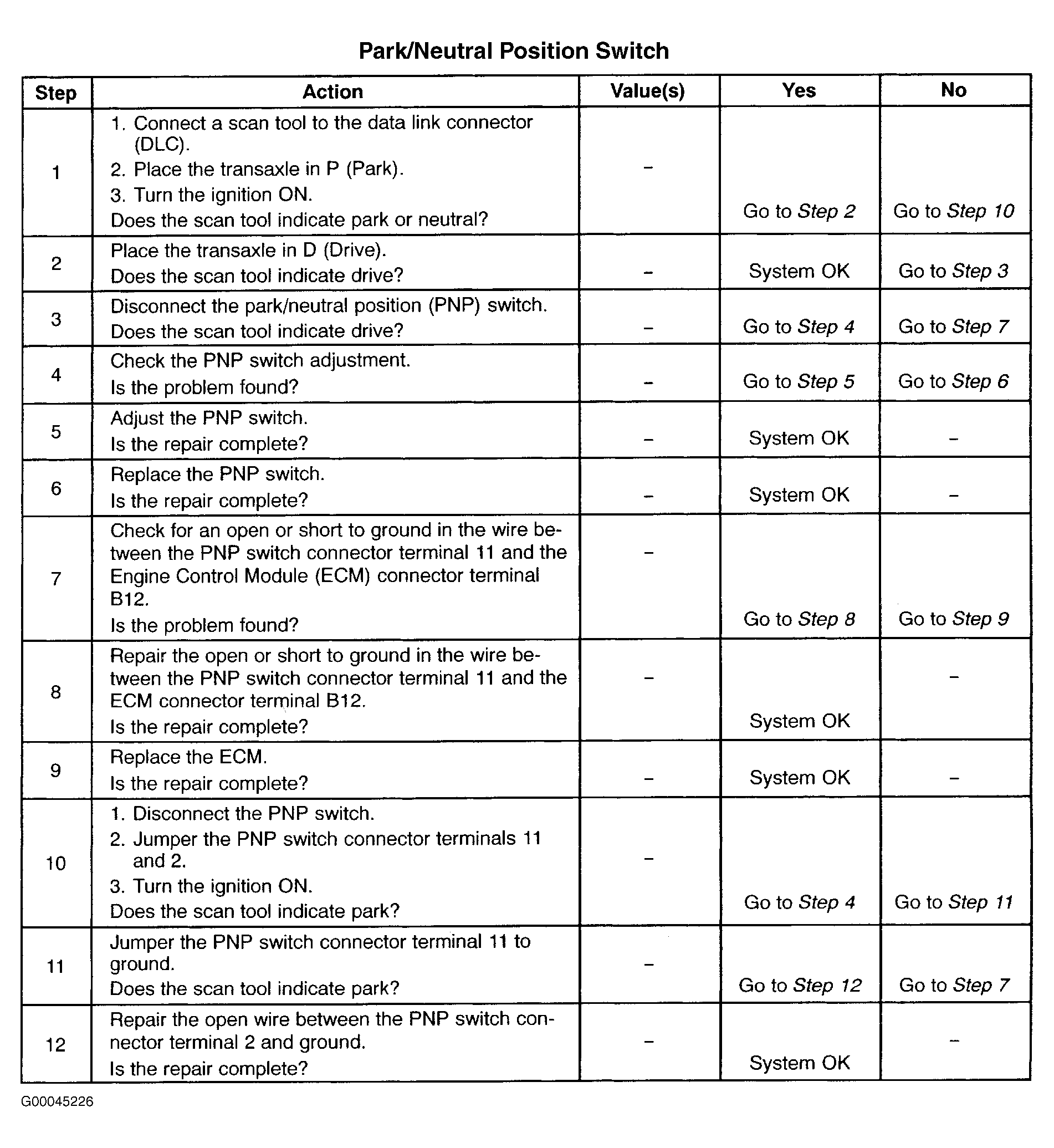

Fig 2: Park/Neutral Position Switch (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
