Manifold Absolute Pressure Check

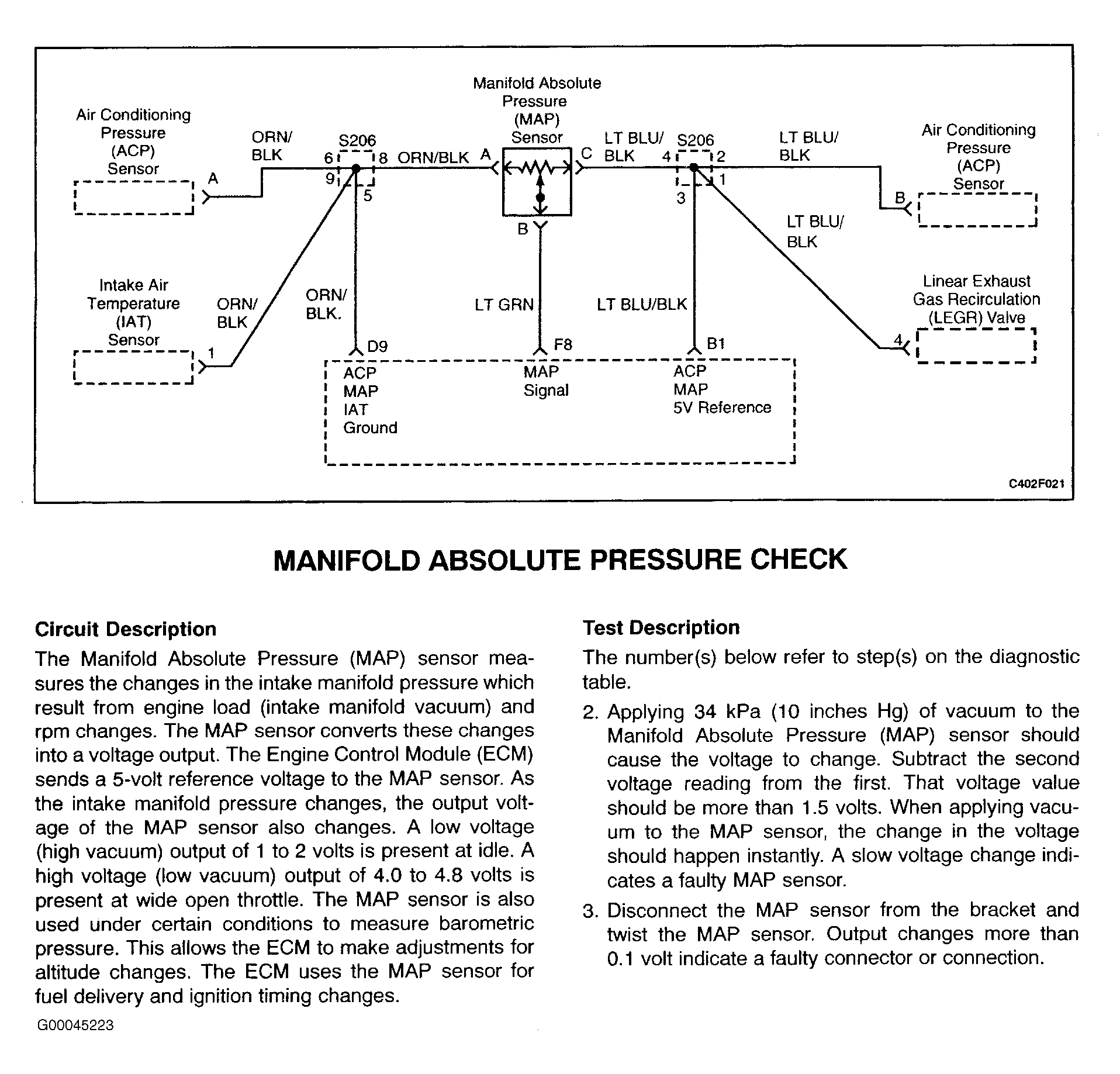

Fig 1: Manifold Absolute Pressure Check (1 Of 2)
G00045223Courtesy of DAEWOO MOTOR AMERICA, INC.

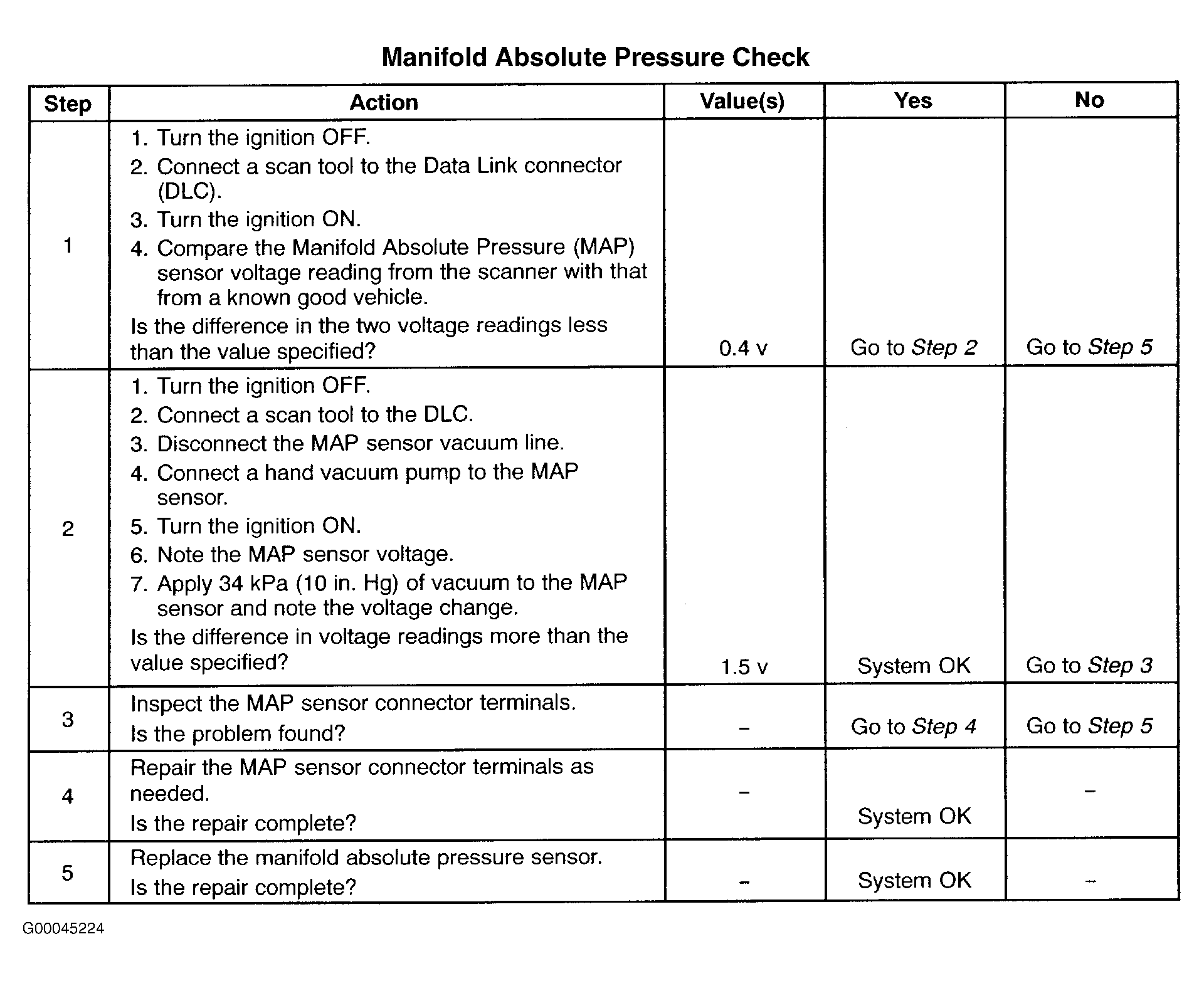

Fig 2: Manifold Absolute Pressure Check (2 Of 2)
G00045224Courtesy of DAEWOO MOTOR AMERICA, INC.
