Fuel Pump Relay Circuit Check

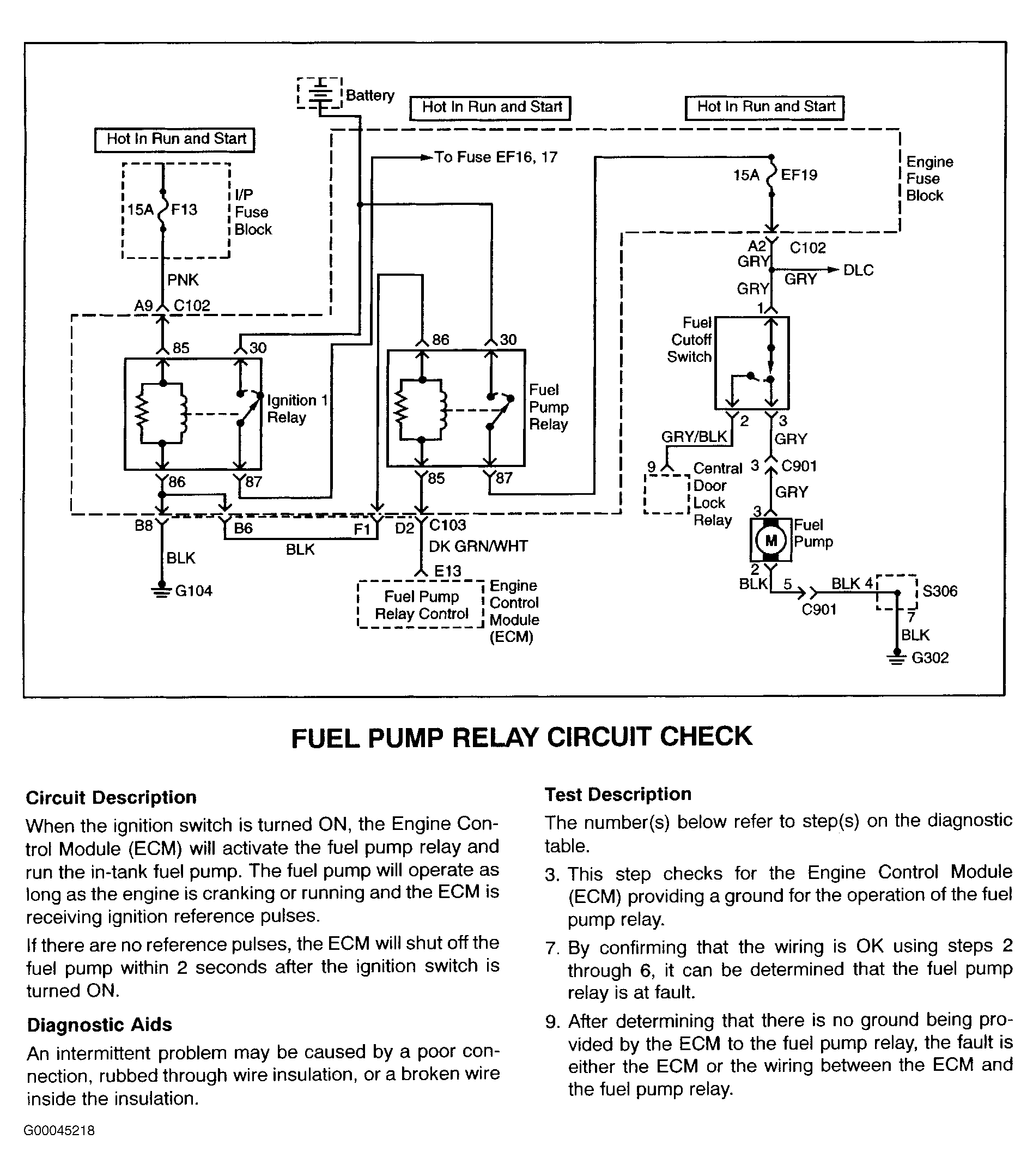

Fig 1: Fuel Pump Relay Circuit Check (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

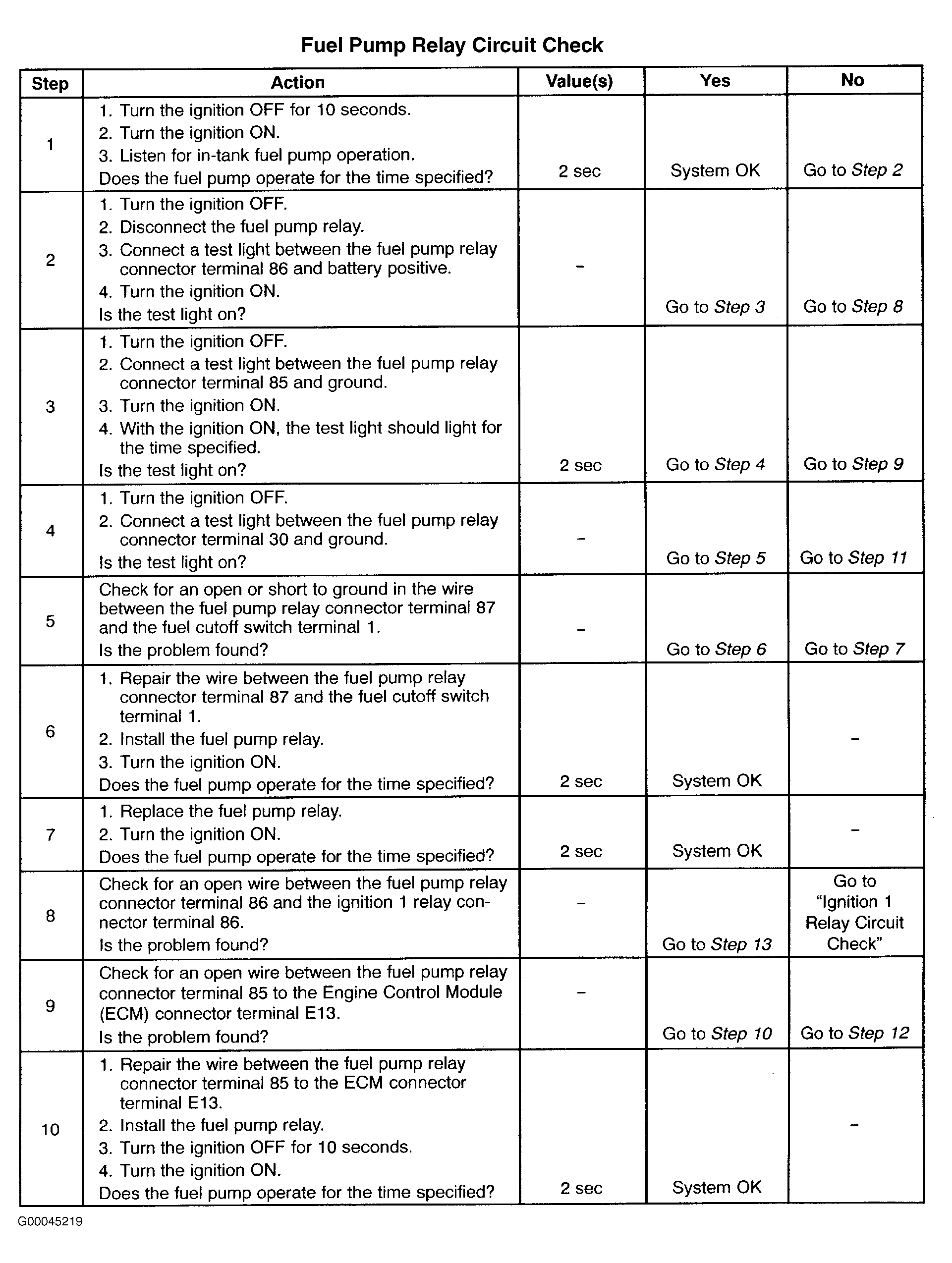

Fig 2: Fuel Pump Relay Circuit Check (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

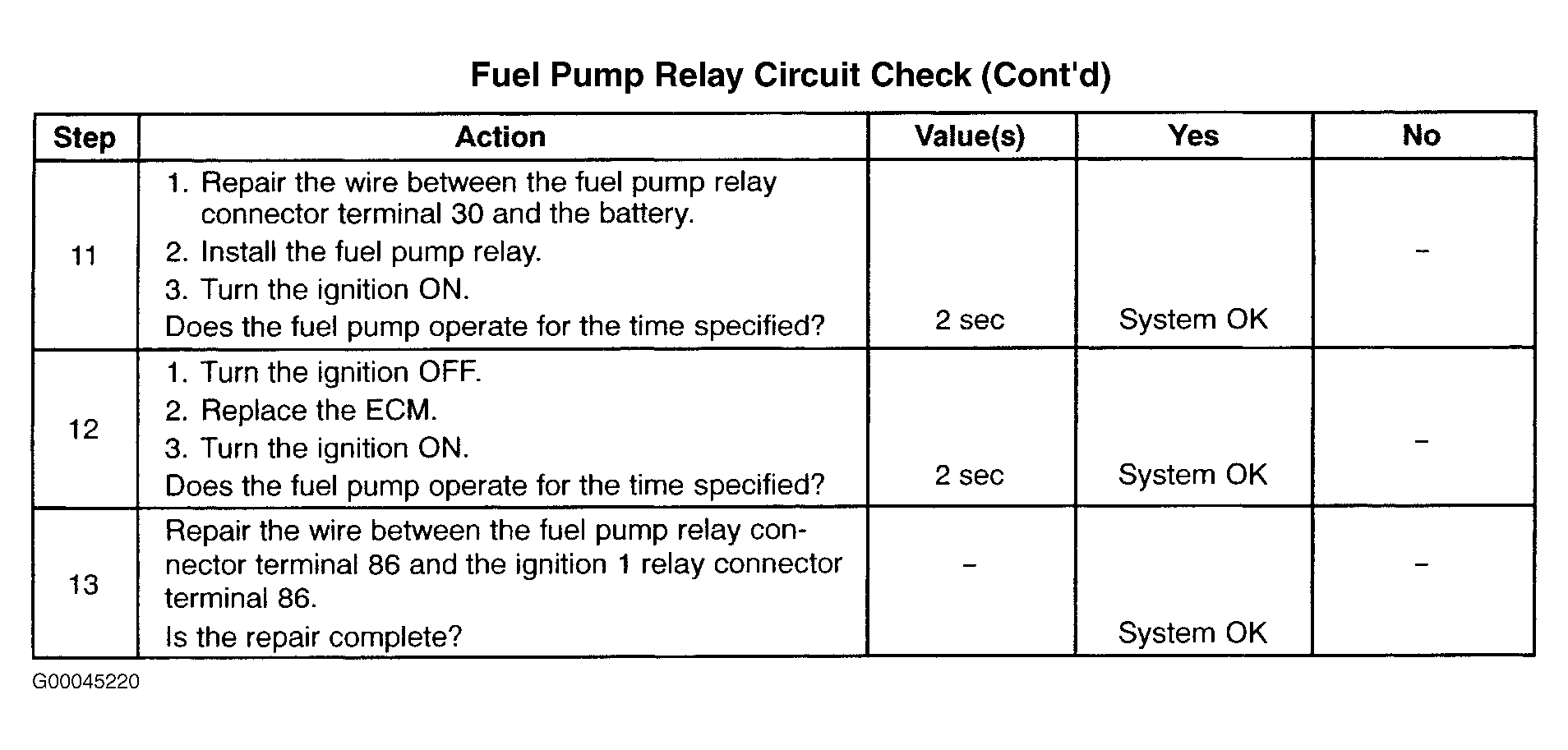

Fig 3: Fuel Pump Relay Circuit Check (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
