DTC 71: Abs Control Module Internal Fault

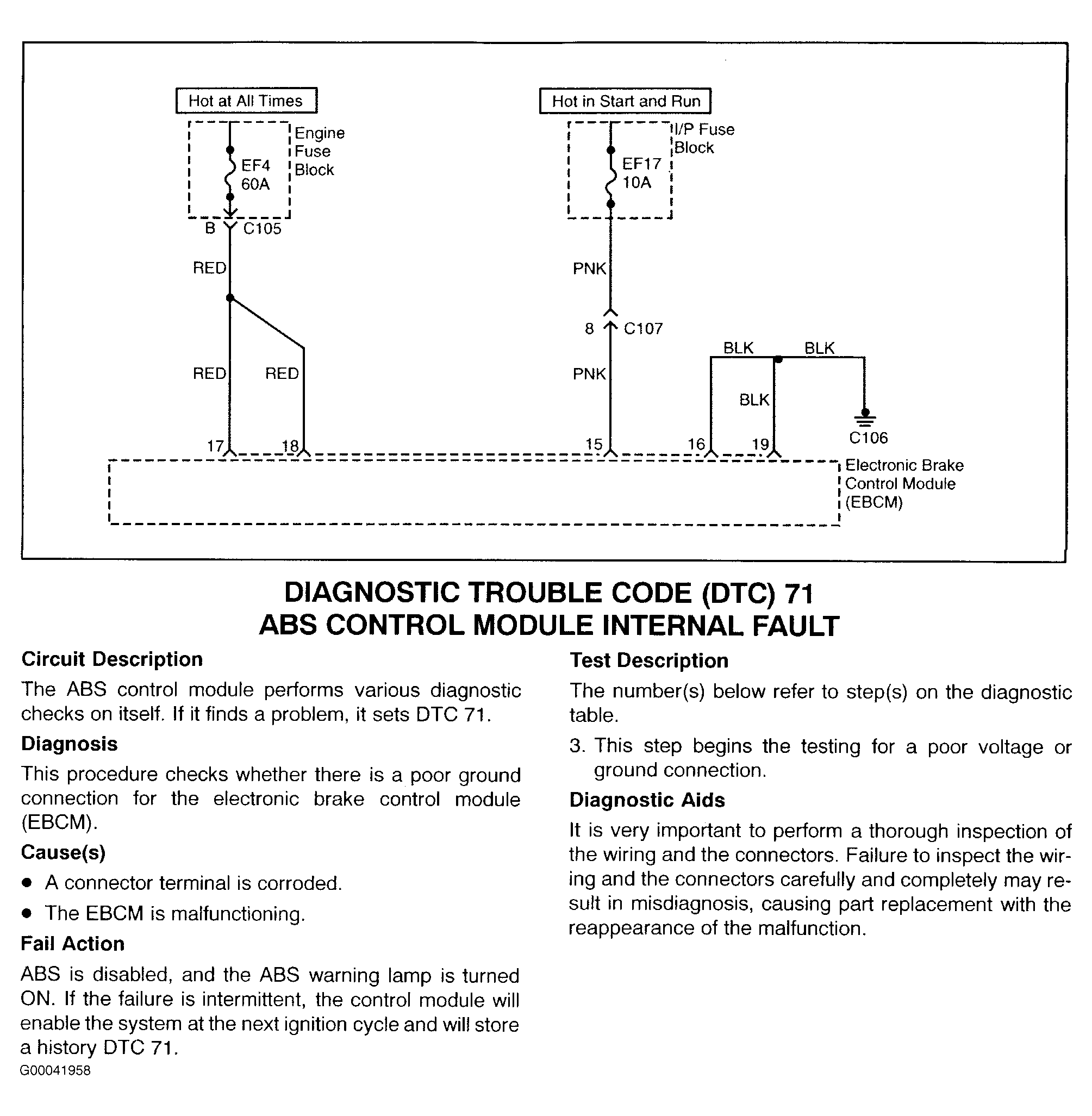

Fig 1: DTC 71: ABS Control Module Internal Fault (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

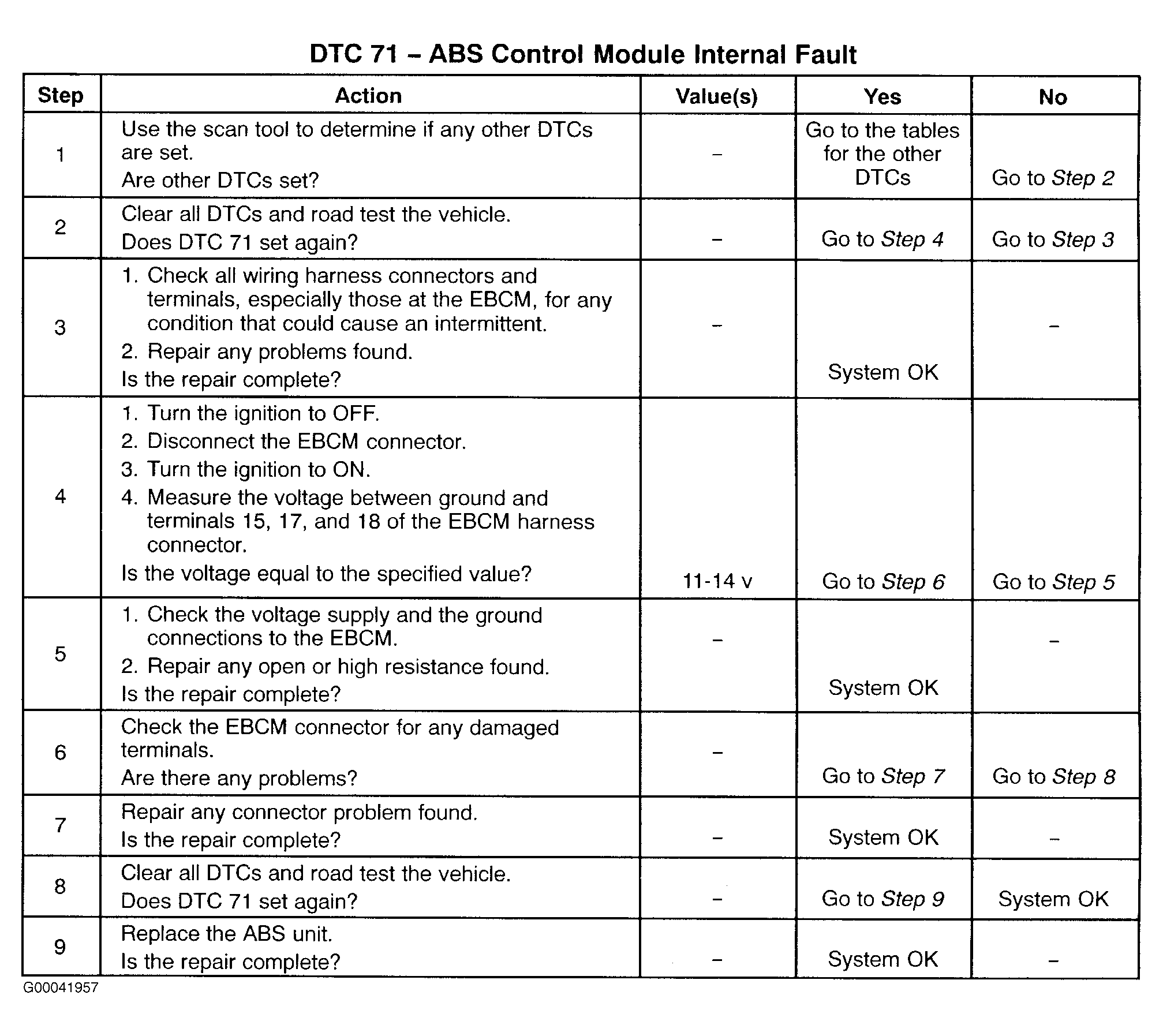

Fig 2: DTC 71: ABS Control Module Internal Fault - Steps 1-9 (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
