DTC P1134: O2 Bank No. 1, Sensor No. 1, Transition Ratio

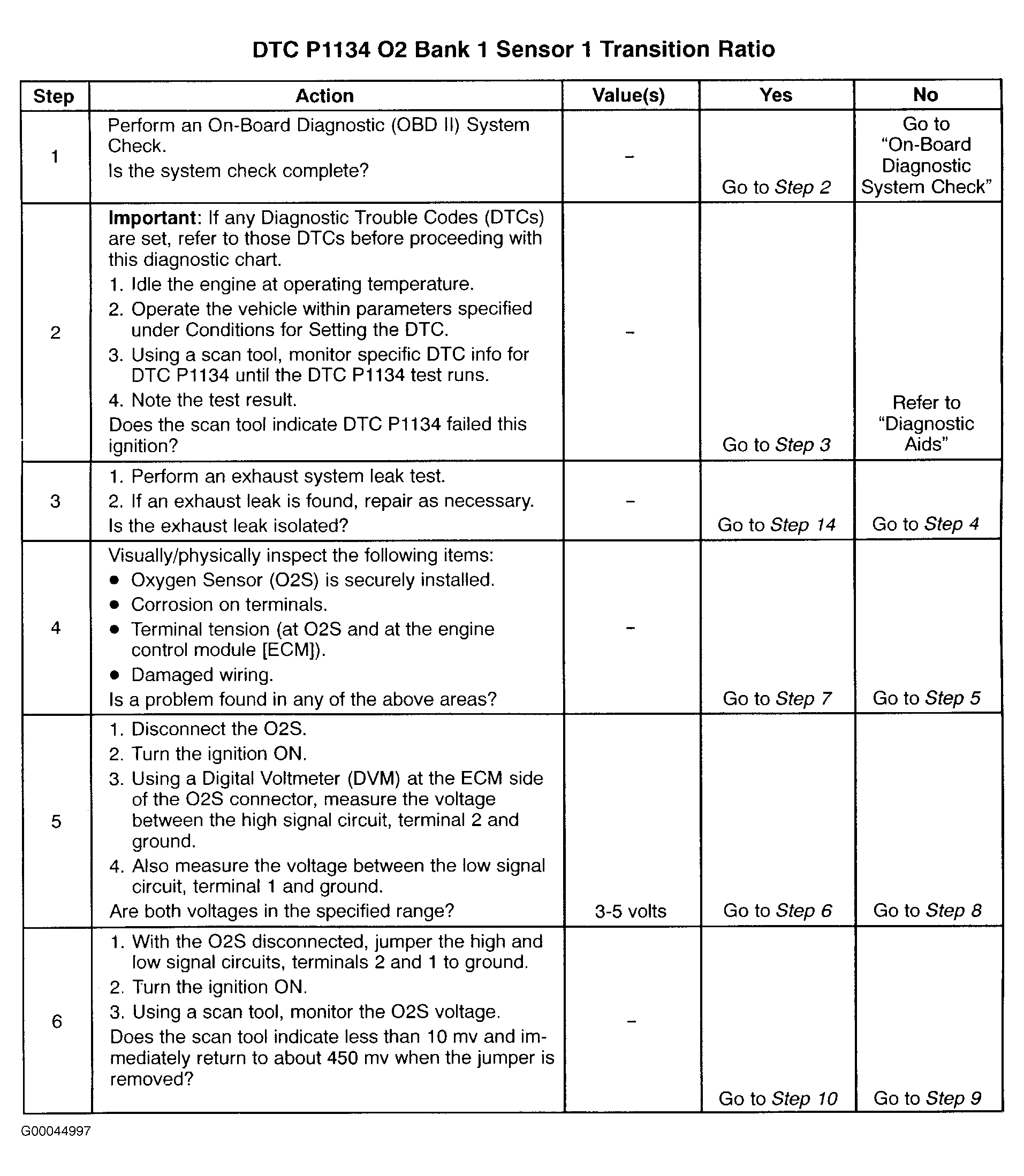

Fig 1: DTC P1134: O2 Bank No. 1, Sensor No. 1, Transition Ratio (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

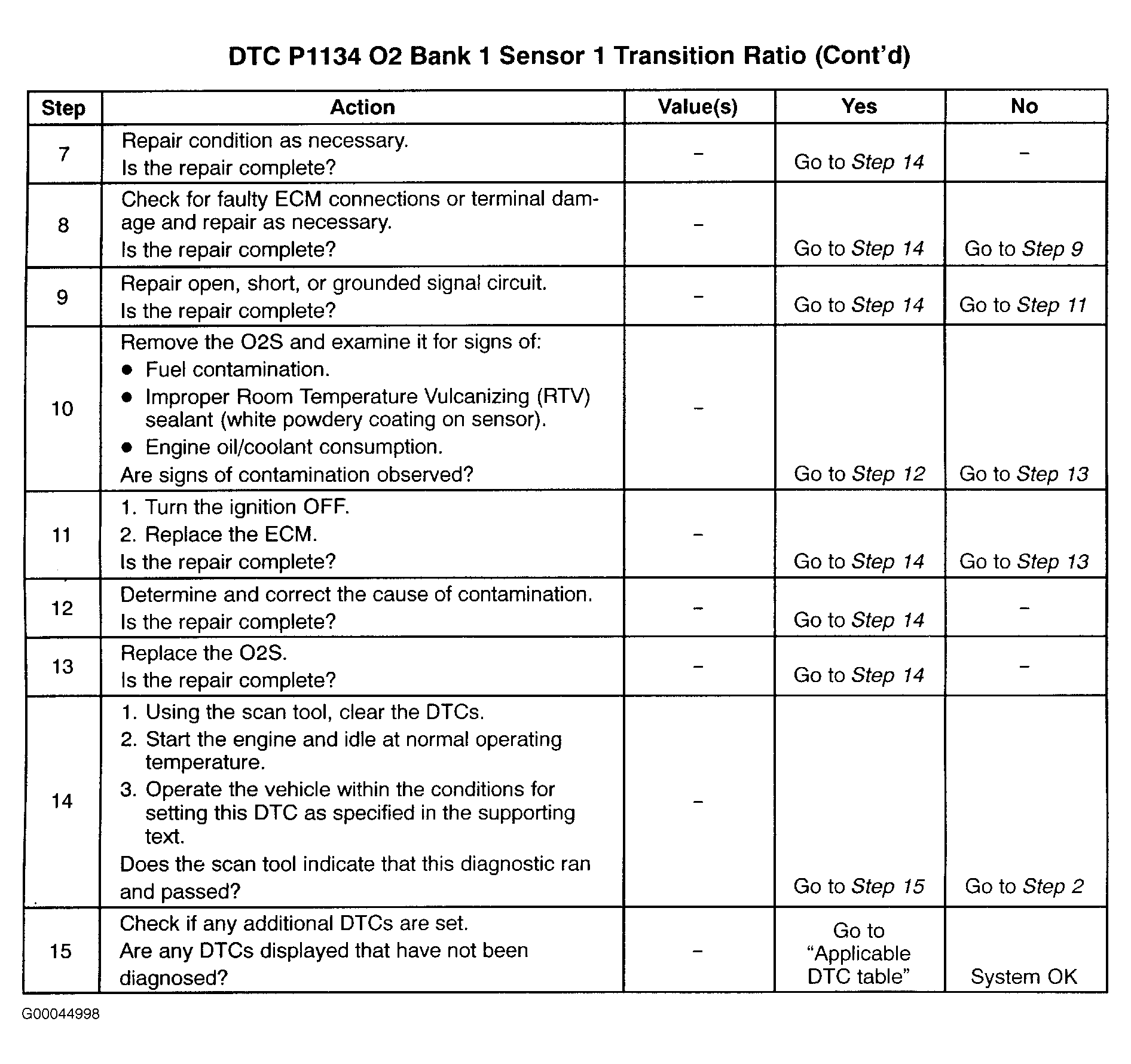

Fig 2: DTC P1134: O2 Bank No. 1, Sensor No. 1, Transition Ratio (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

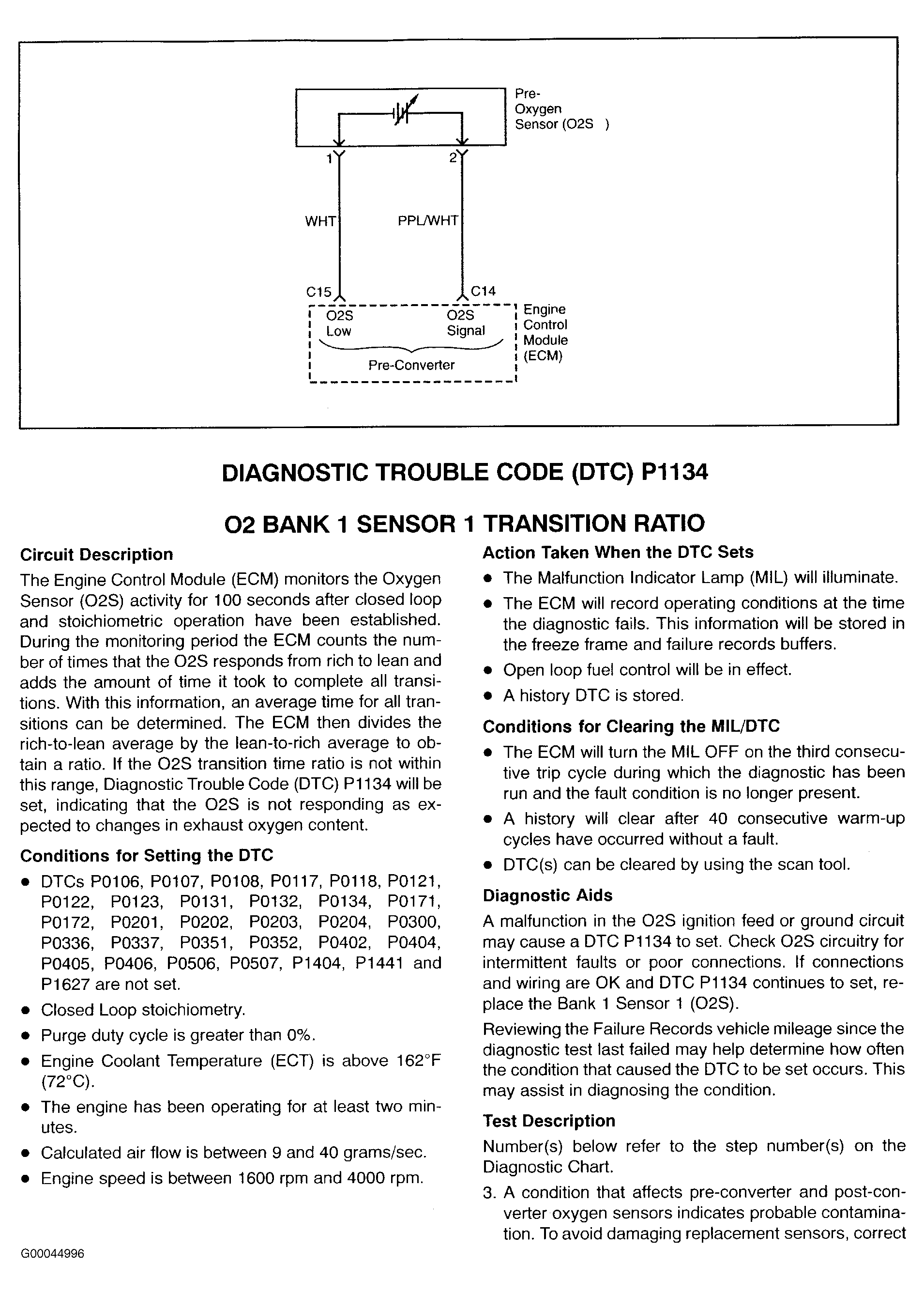

Fig 3: DTC P1134: O2 Bank No. 1, Sensor No. 1, Transition Ratio (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
