DTC P1133: O2 Bank No. 1, Sensor No. 1, Too Few Transitions

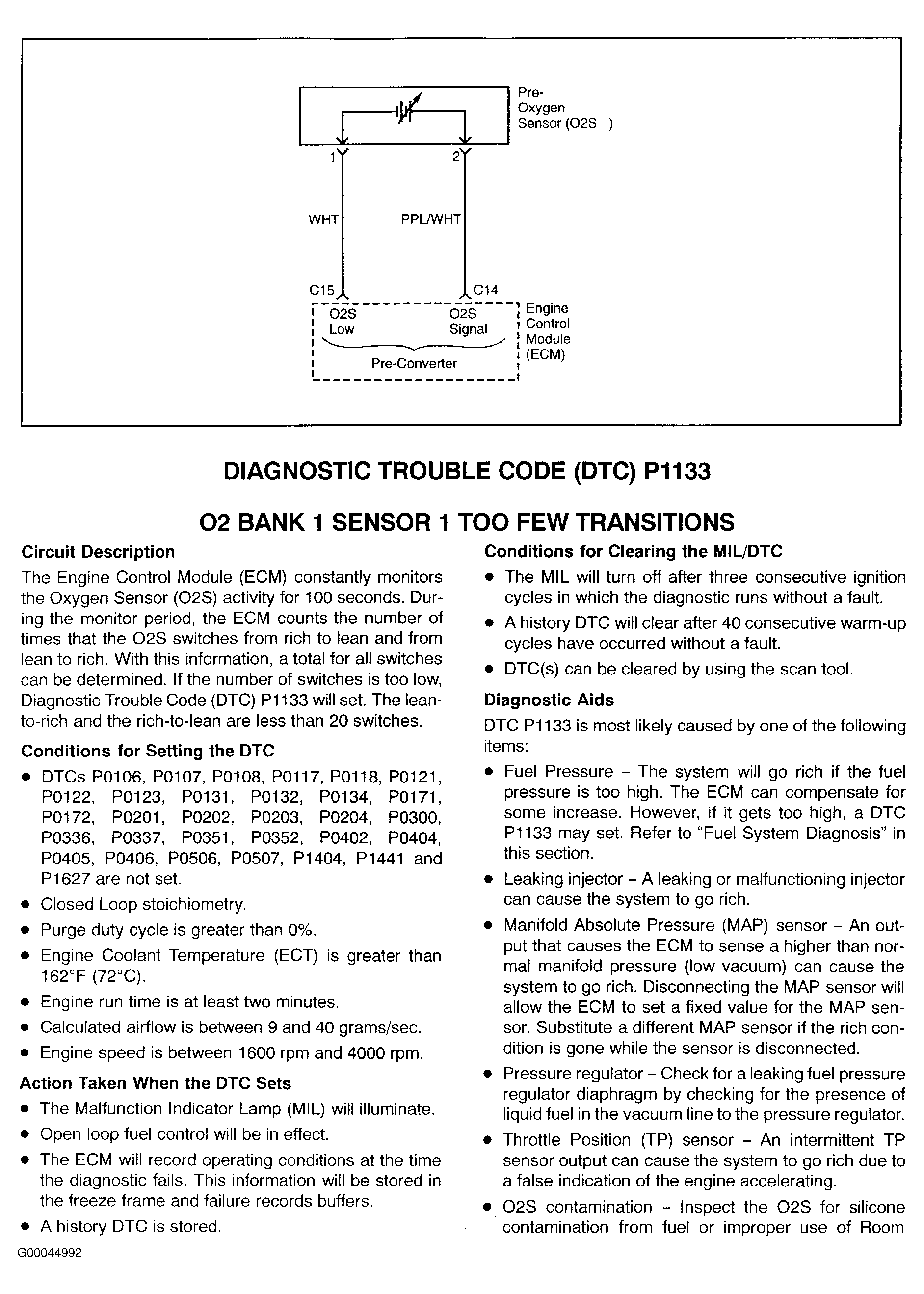

Fig 1: DTC P1133: O2 Bank No. 1, Sensor No. 1, Too Few Transitions (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

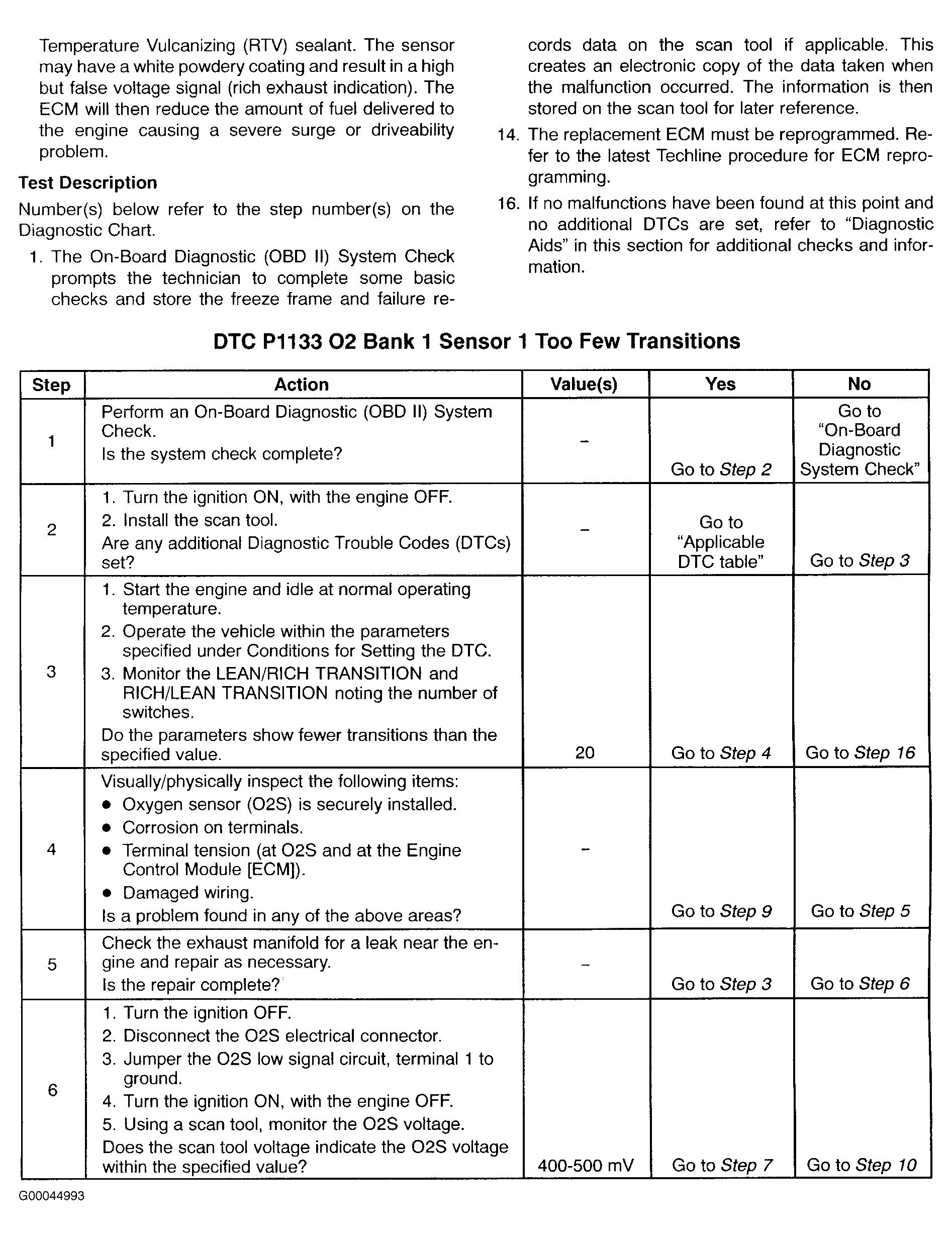

Fig 2: DTC P1133: O2 Bank No. 1, Sensor No. 1, Too Few Transitions (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

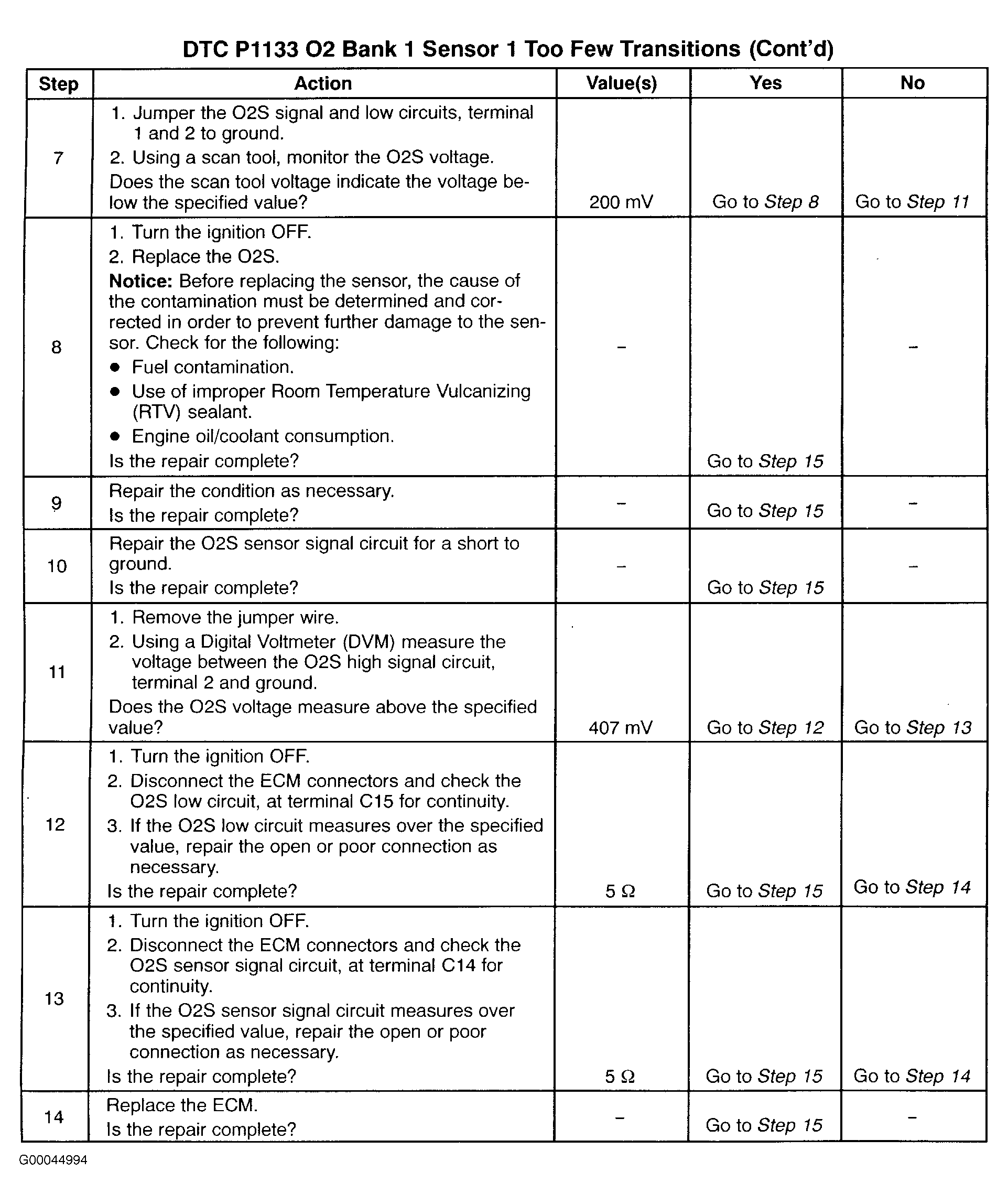

Fig 3: DTC P1133: O2 Bank No. 1, Sensor No. 1, Too Few Transitions (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

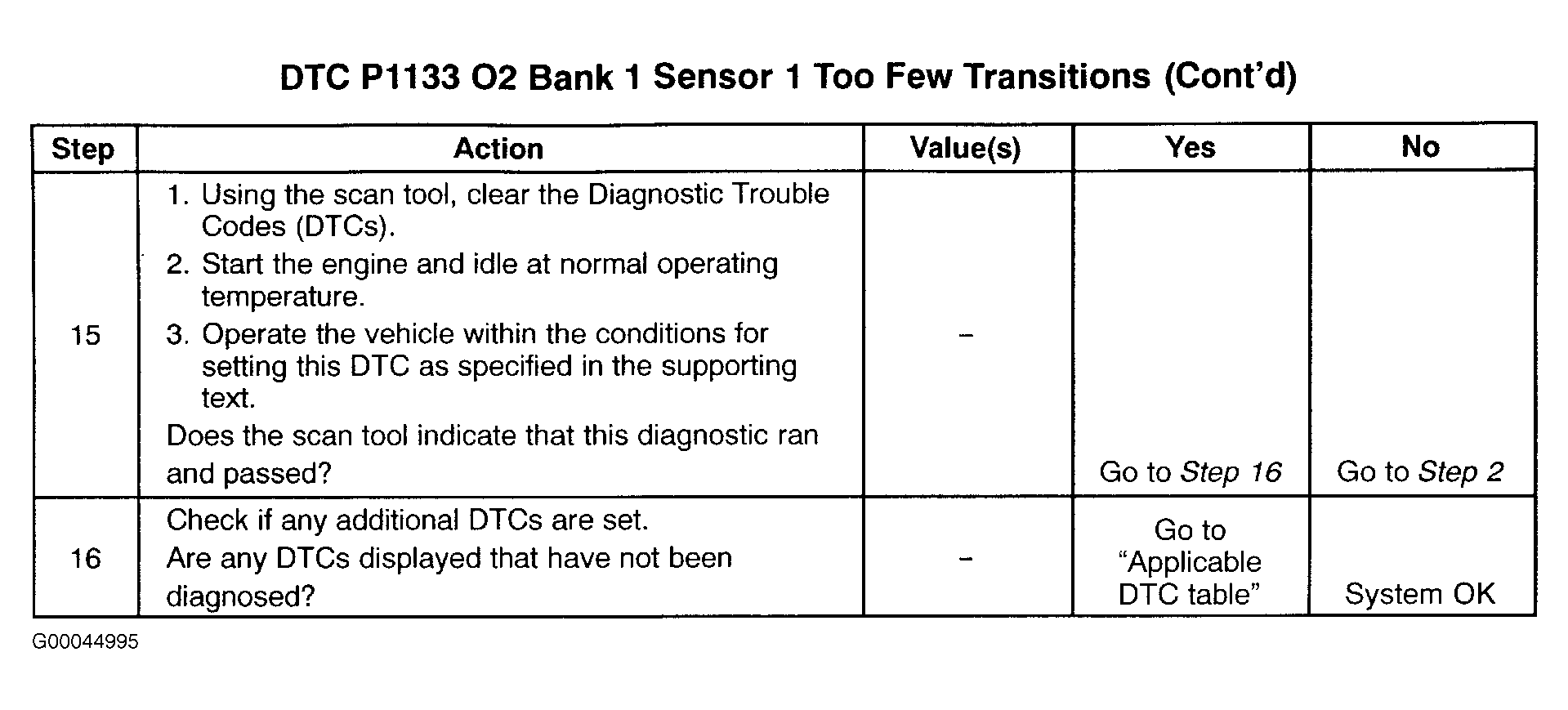

Fig 4: DTC P1133: O2 Bank No. 1, Sensor No. 1, Too Few Transitions (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
