Wiring Diagrams

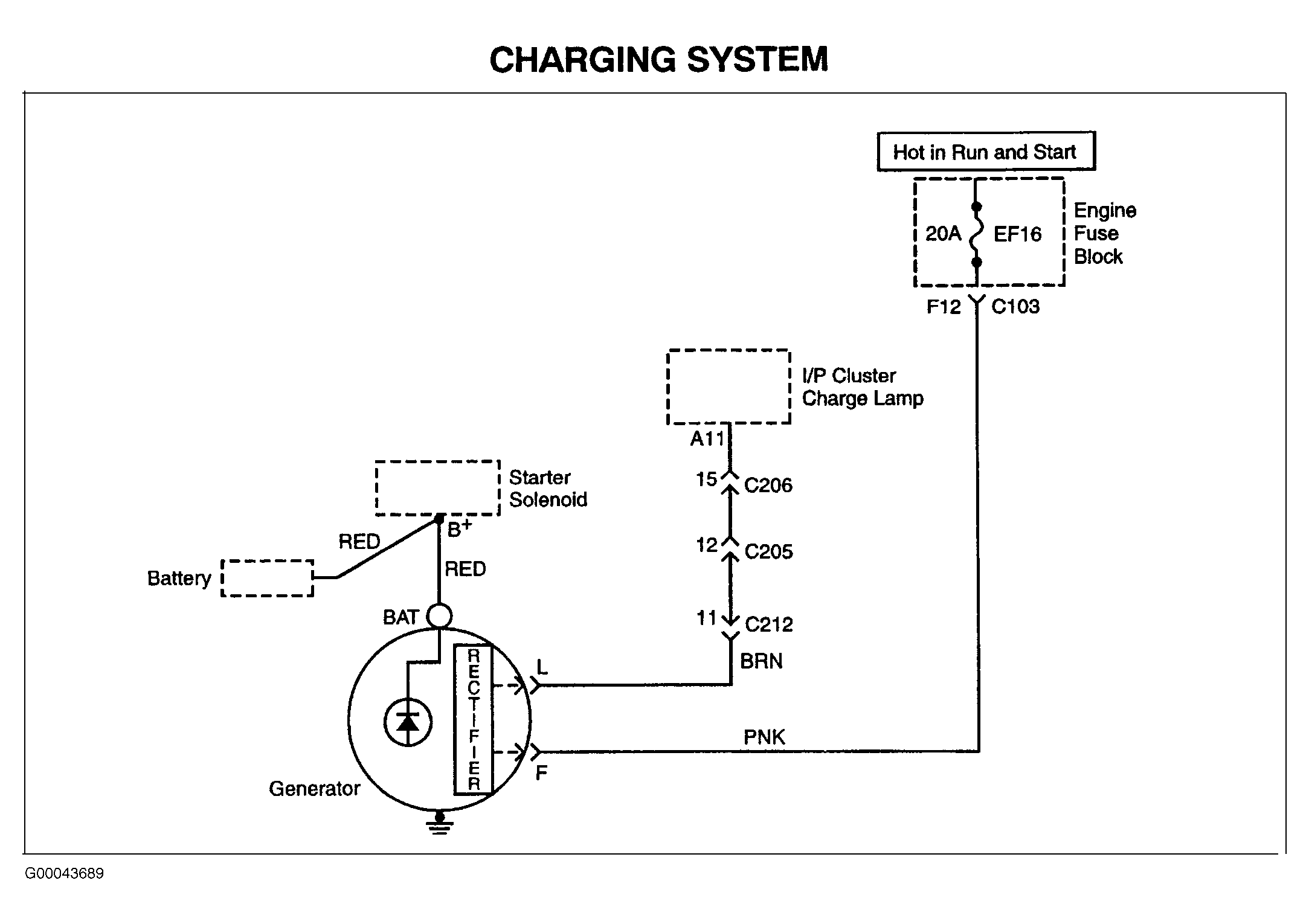

Fig 1: Charging System Wiring Diagram

G00043689

Courtesy of DAEWOO MOTOR AMERICA, INC.
