Lock System

NOTE: Illustration Captions Indicate Symptoms

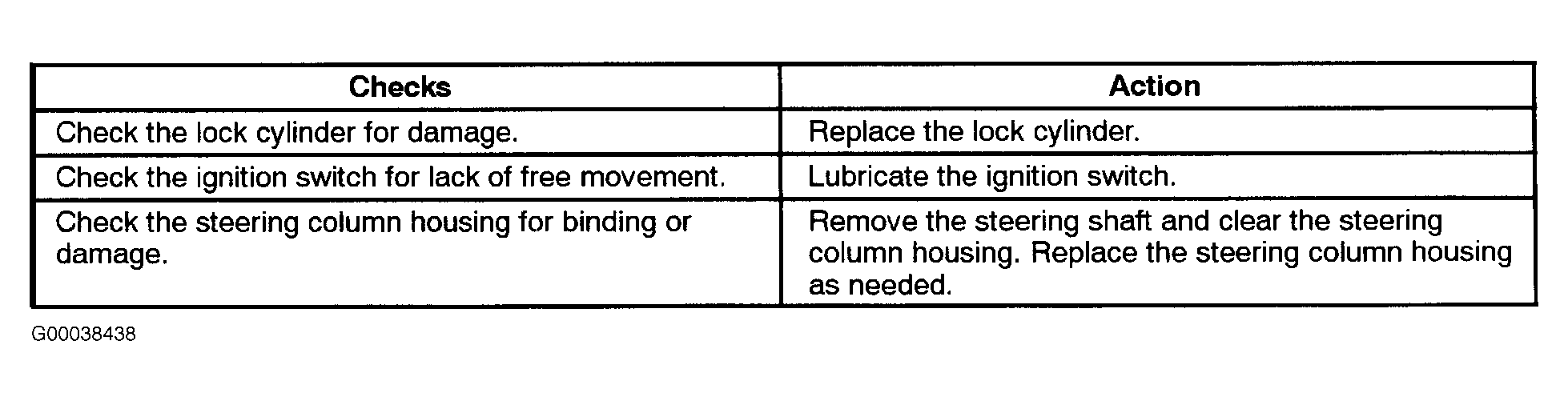

Fig 1: Lock System Will Not Unlock

G00038438

Courtesy of DAEWOO MOTOR AMERICA, INC.

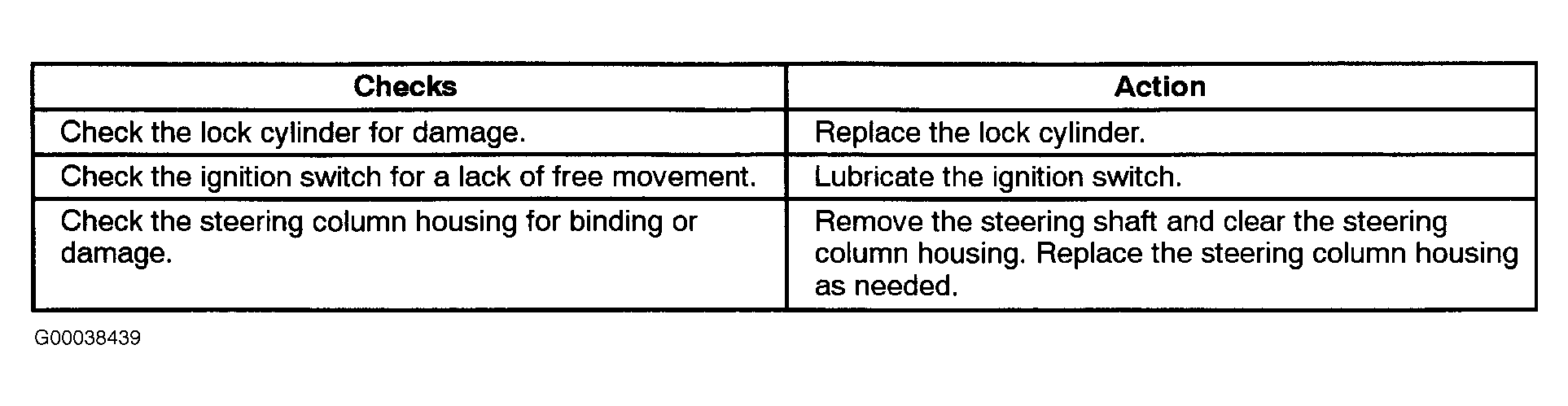

Fig 2: Lock System Will Not Lock

G00038439

Courtesy of DAEWOO MOTOR AMERICA, INC.

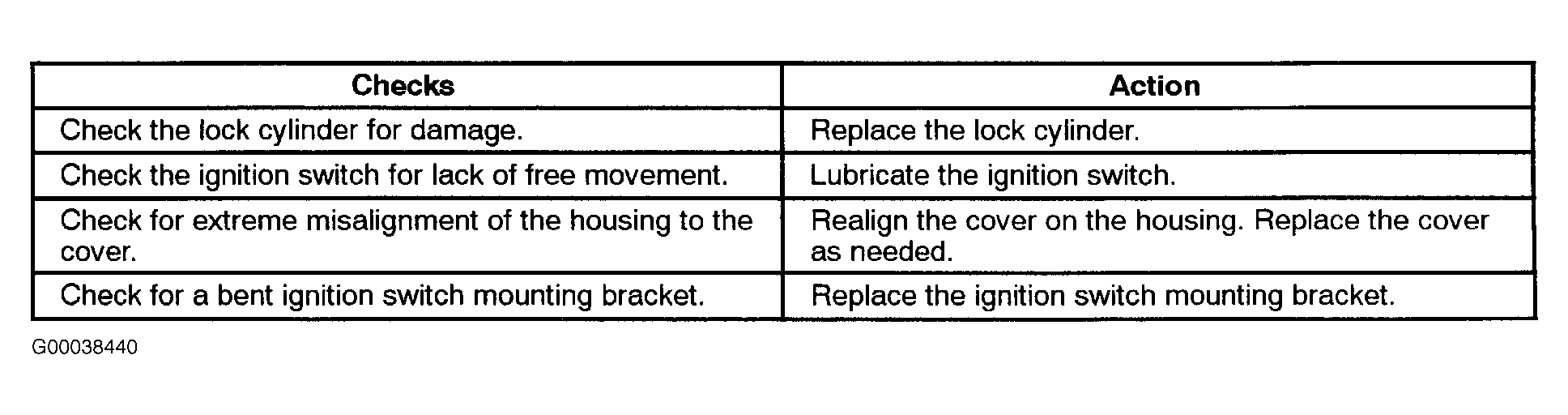

Fig 3: High Lock Effort

G00038440

Courtesy of DAEWOO MOTOR AMERICA, INC.

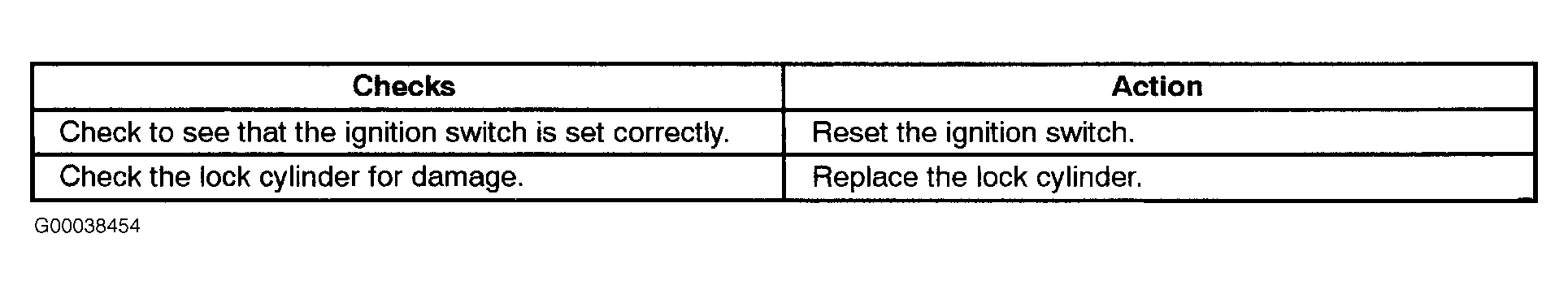

Fig 4: Key Cannot Be Removed In The LOCK Position

G00038454

Courtesy of DAEWOO MOTOR AMERICA, INC.
