Test Description

Number(s) below refer to step number(s) on Diagnostic Table.

  1. 1. The On-Board Diagnostic (OBD II) System Check prompts technician to complete some basic checks and store freeze frame and failure records data on scan tool if applicable. This creates an electronic copy of data taken when malfunction occurred. The information is then stored on scan tool for later reference.

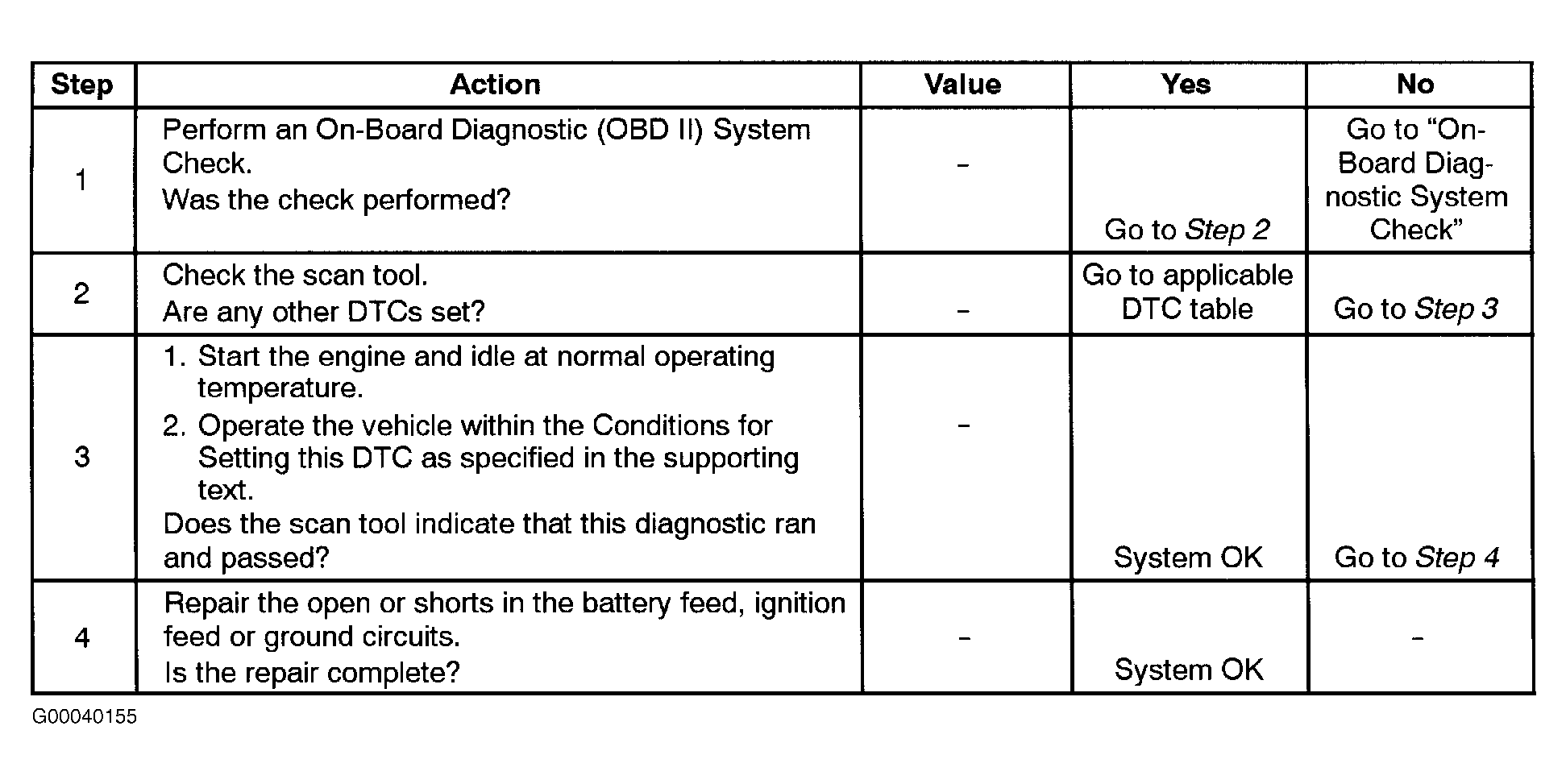

Fig 1: DTC P1625: PCM/ECM Internal System Reset
G00040155Courtesy of DAEWOO
