DTC P0141: O2 Bank 1 Sensor 2 - Heater: Notes

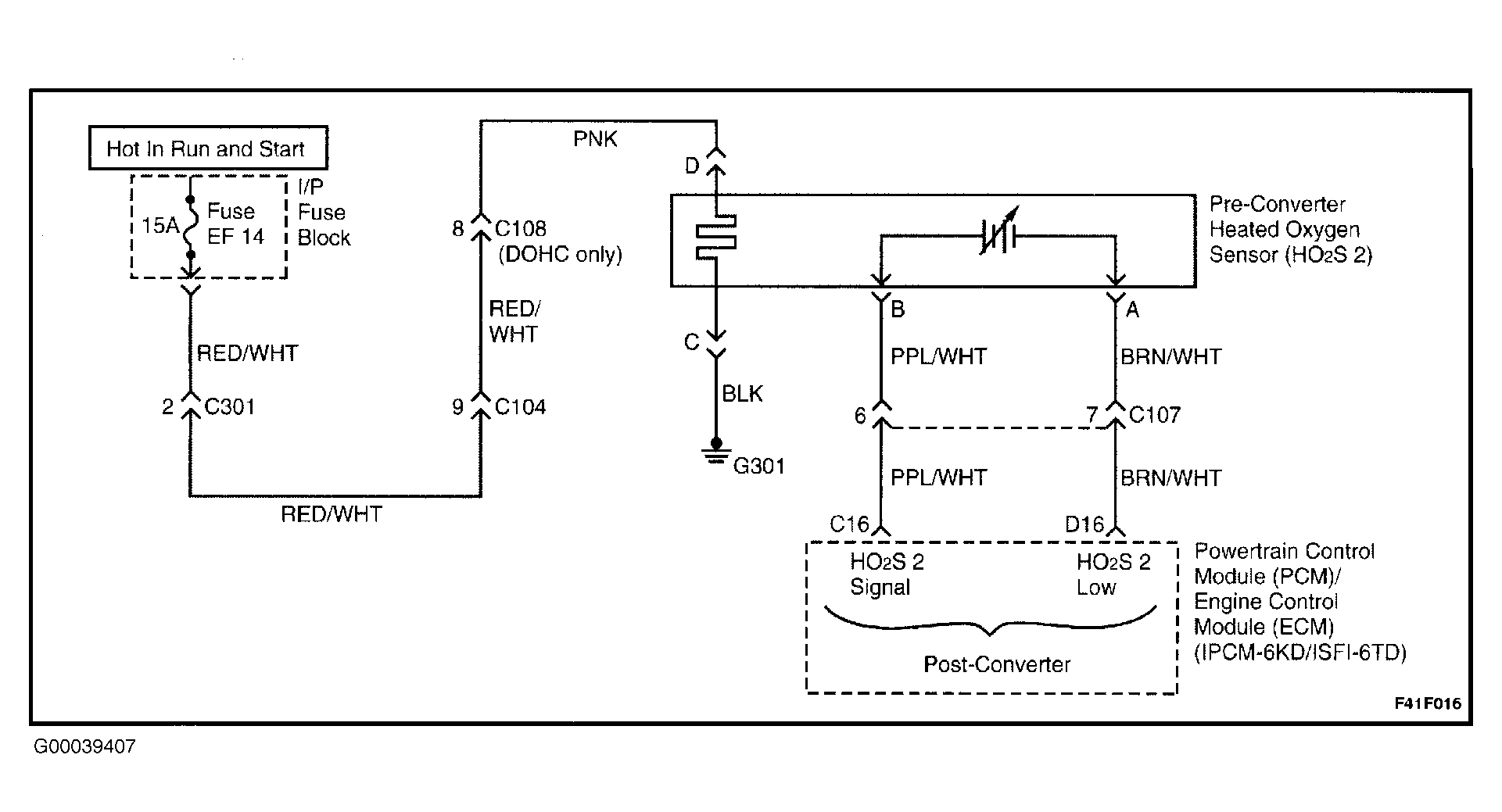

Fig 1: O2 Bank 1 Sensor 2 Circuit Diagram
G00039407Courtesy of DAEWOO
