Home >> Daewoo >> 2000 >> Lanos SE, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> DTC Diagnostic Tests >> DTC P0125: Engine Coolant Temperature Insufficient For Closed Loop Fuel Control >> Notes

DTC P0125: Engine Coolant Temperature Insufficient For Closed Loop Fuel Control: Notes

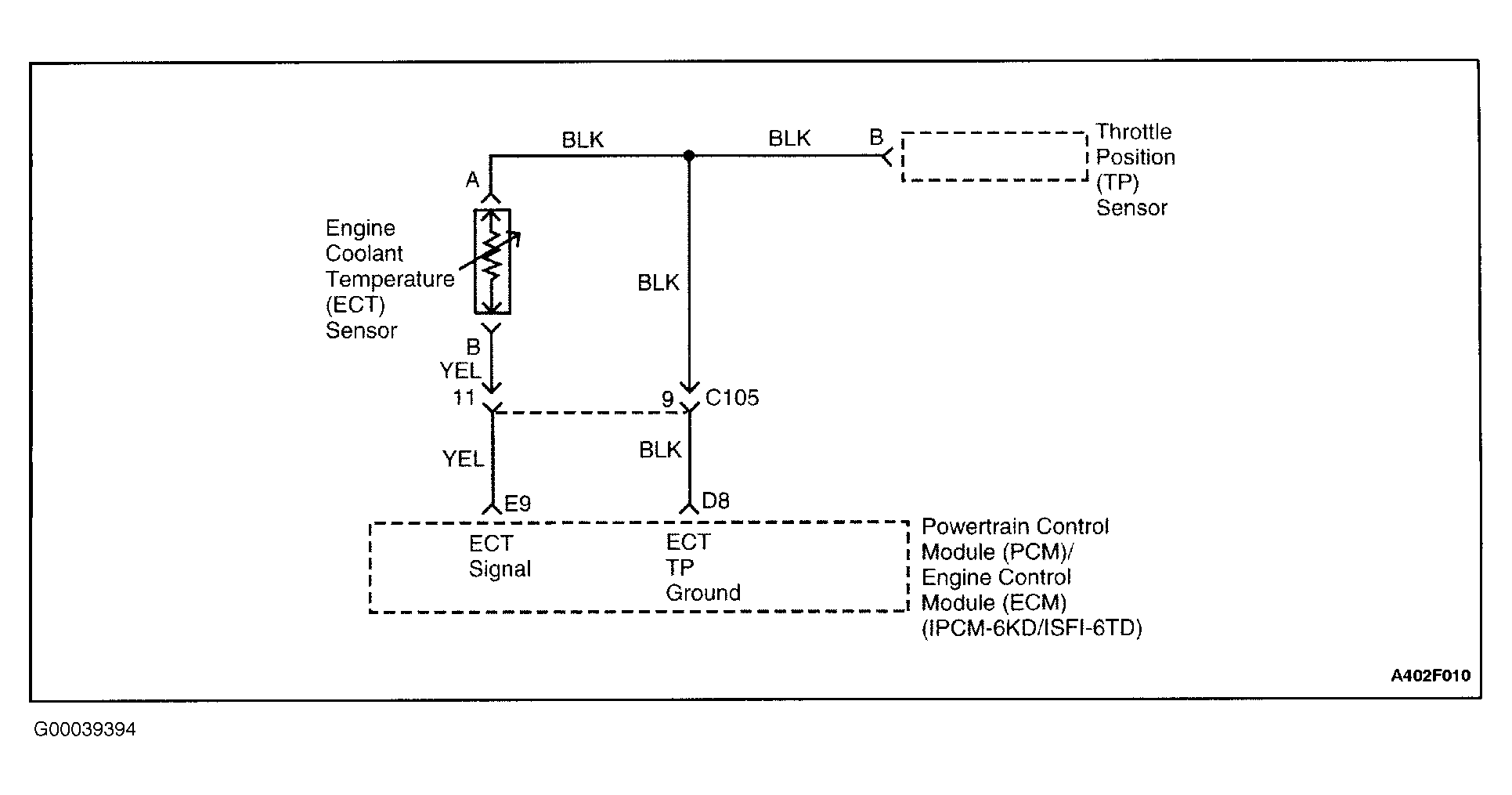

Fig 1: Engine Coolant Temperature (ECT) Sensor Circuit Diagram
G00039394Courtesy of DAEWOO
