Wiring Diagrams

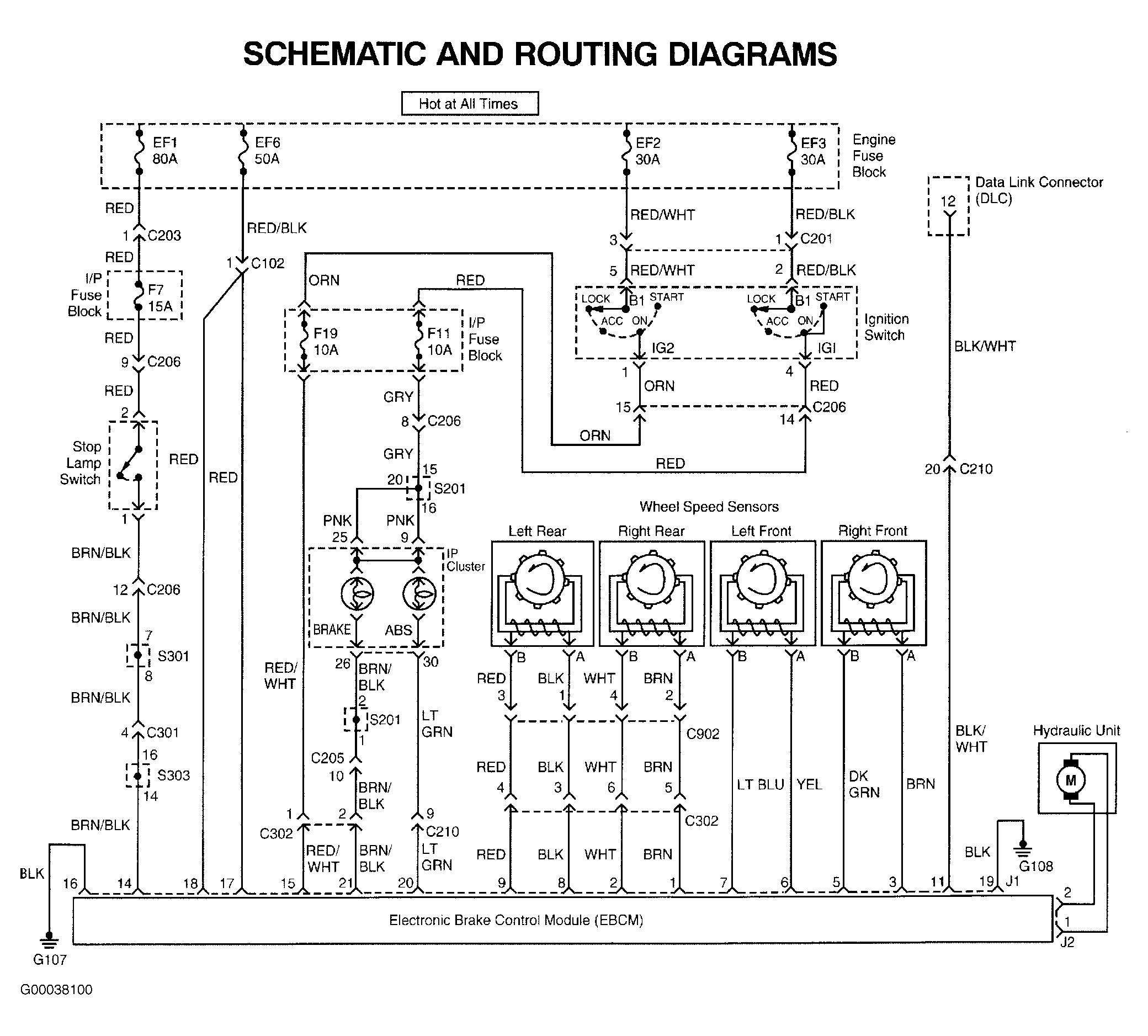

Fig 1: ABS Circuit Wiring Diagram

G00038100

Courtesy of DAEWOO MOTOR AMERICA, INC.
