DTC C0161: Abs Brake Switch Circuit Malfunction

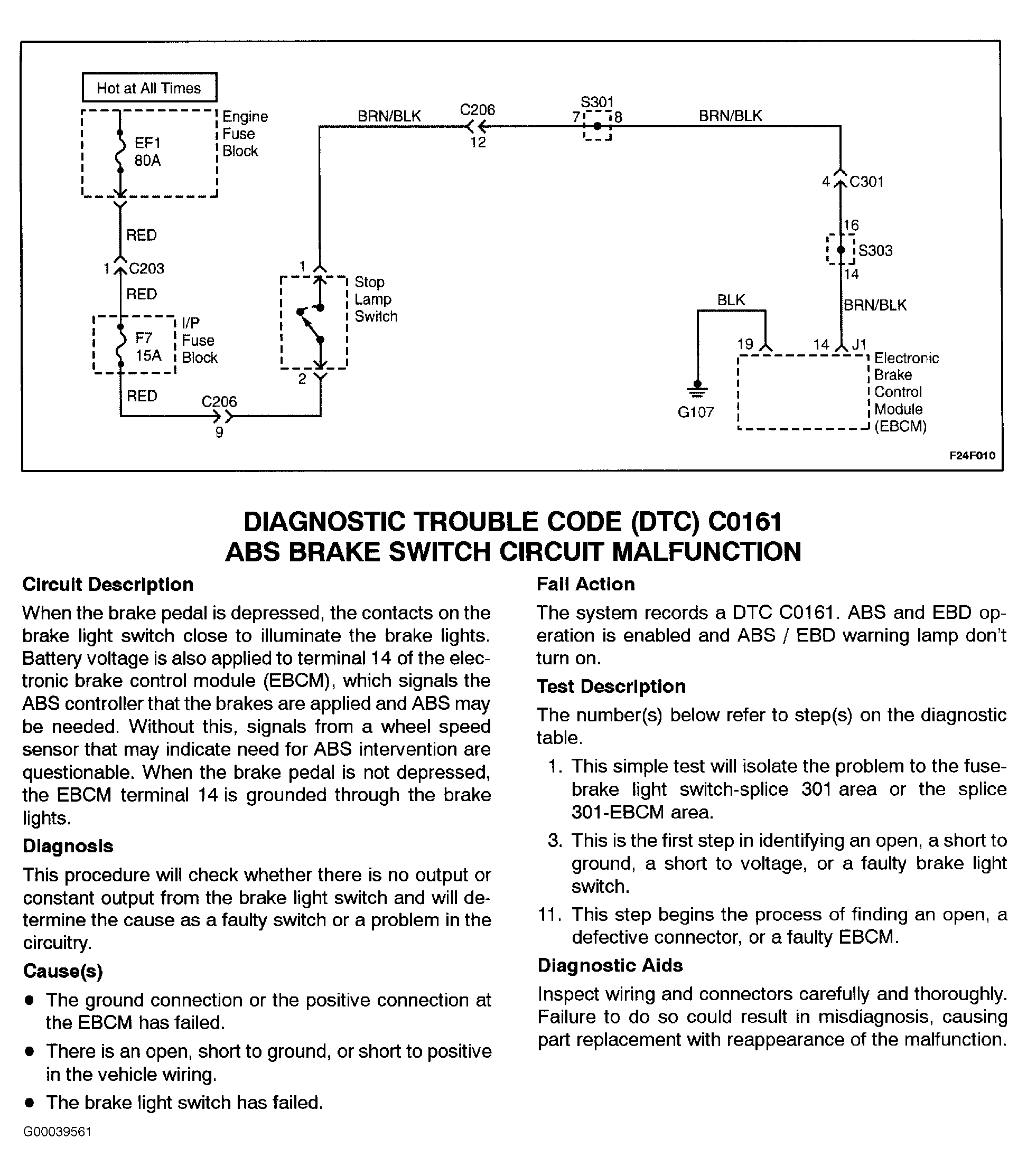

Fig 1: DTC C0161: ABS Brake Switch Circuit Malfunction (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

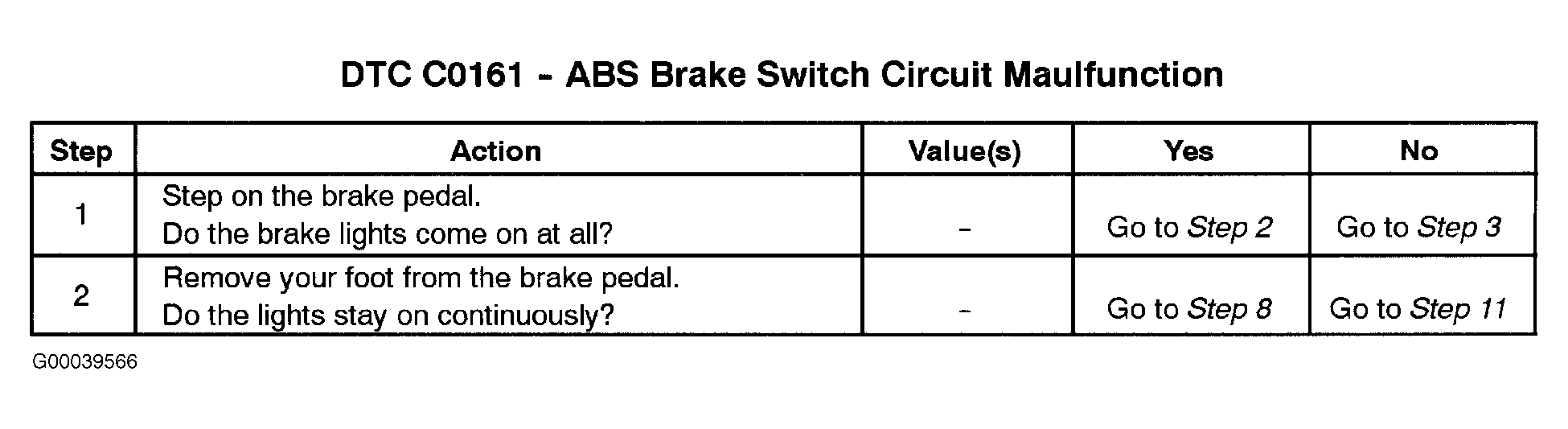

Fig 2: DTC C0161: ABS Brake Switch Circuit Malfunction - Steps 1 & 2 (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

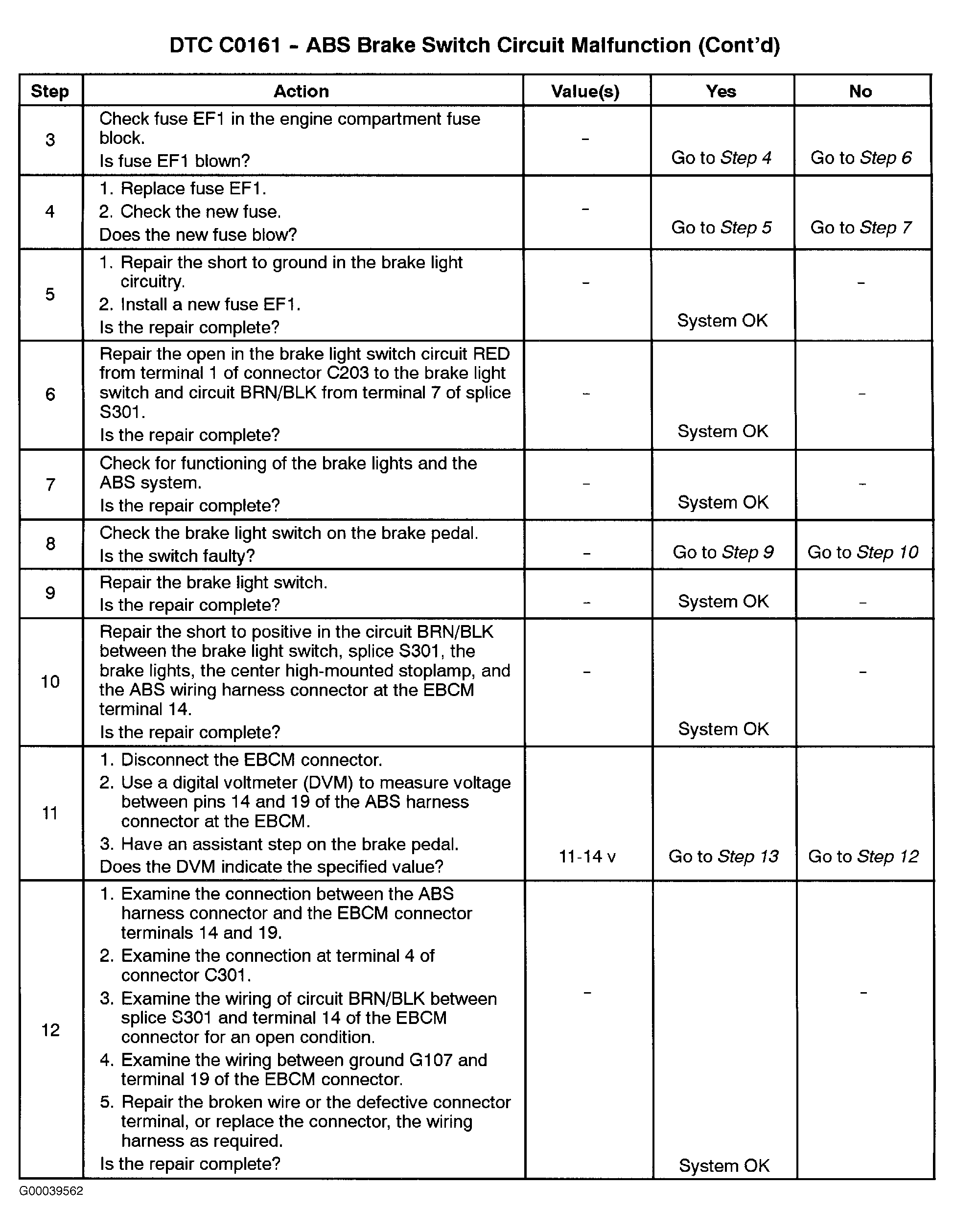

Fig 3: DTC C0161: ABS Brake Switch Circuit Malfunction - Steps 3-12 (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

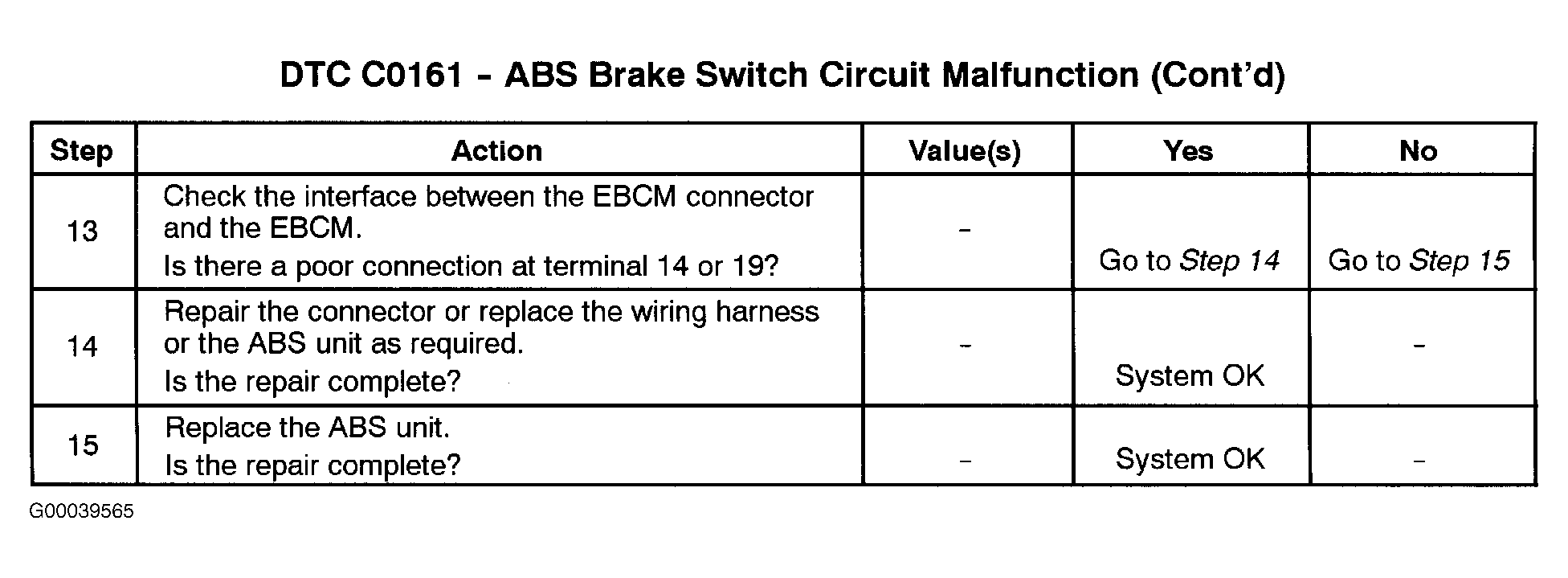

Fig 4: DTC C0161: ABS Brake Switch Circuit Malfunction - Steps 13-15 (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
