DTC C0040: Right Front Wheel Speed Sensor Circuit Malfunction

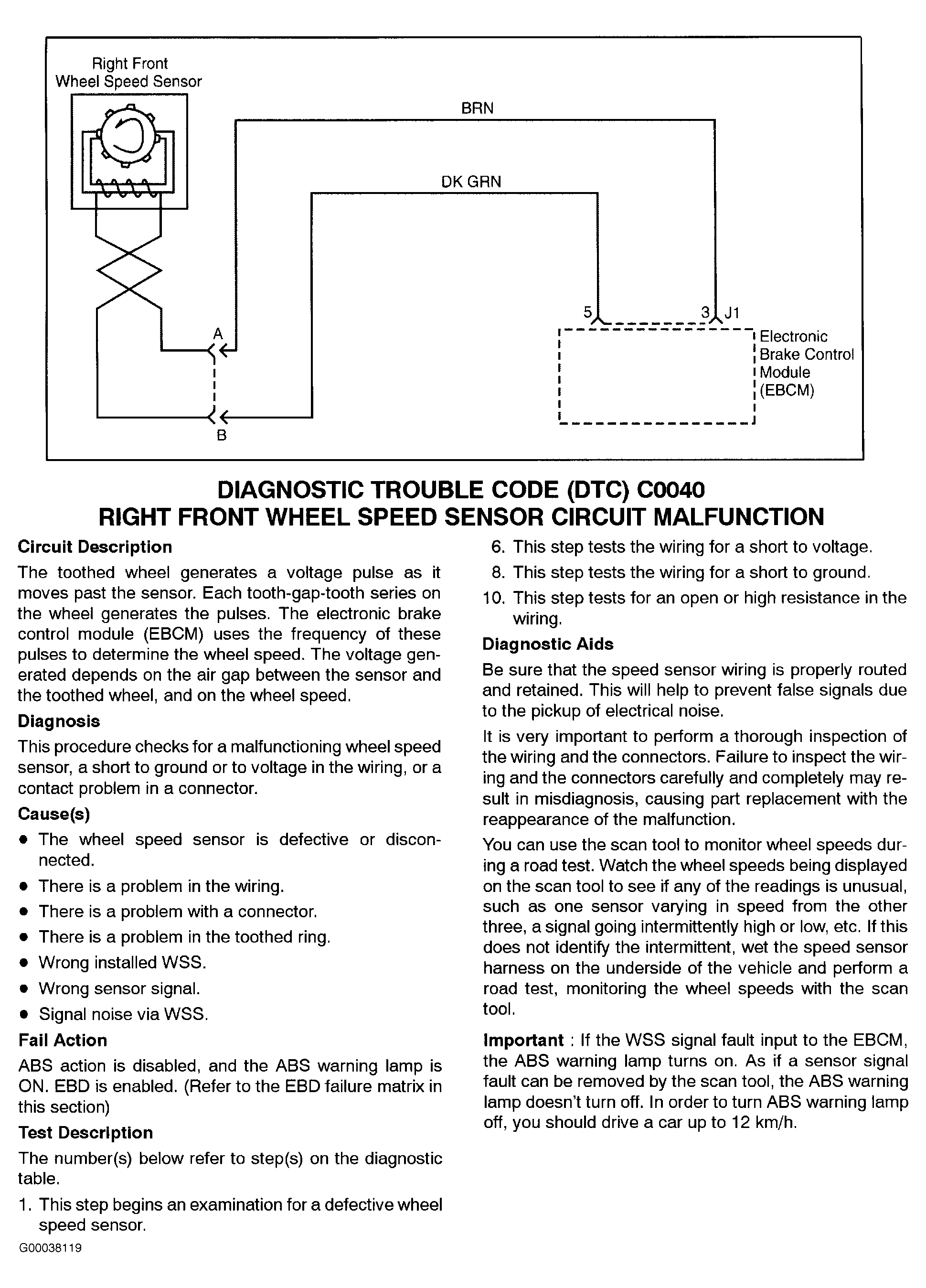

Fig 1: DTC C0040: Right Front Wheel Speed Sensor Circuit Malfunction (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC,

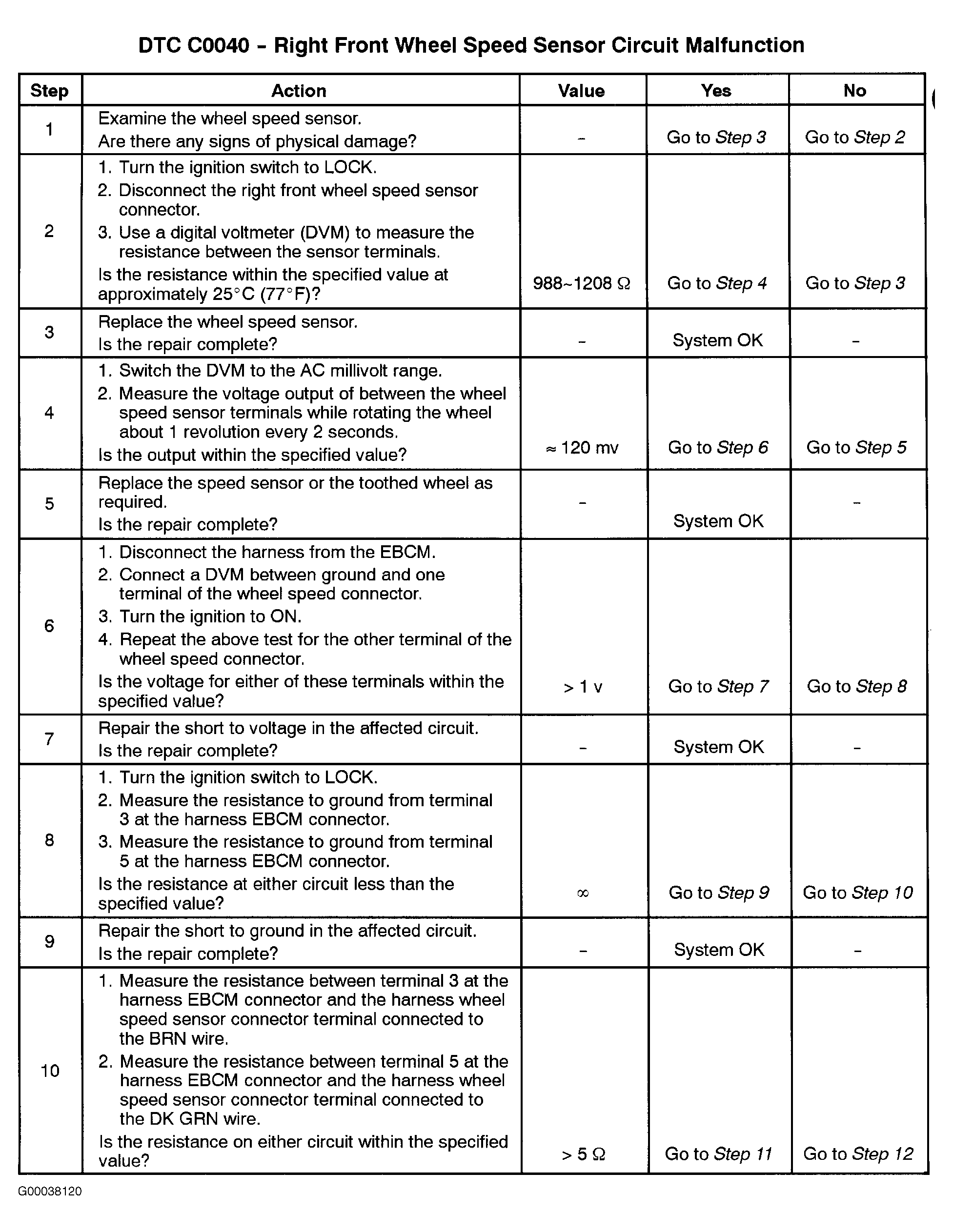

Fig 2: DTC C0040: Right Front Wheel Speed Sensor Circuit Malfunction - Steps 1-10 (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

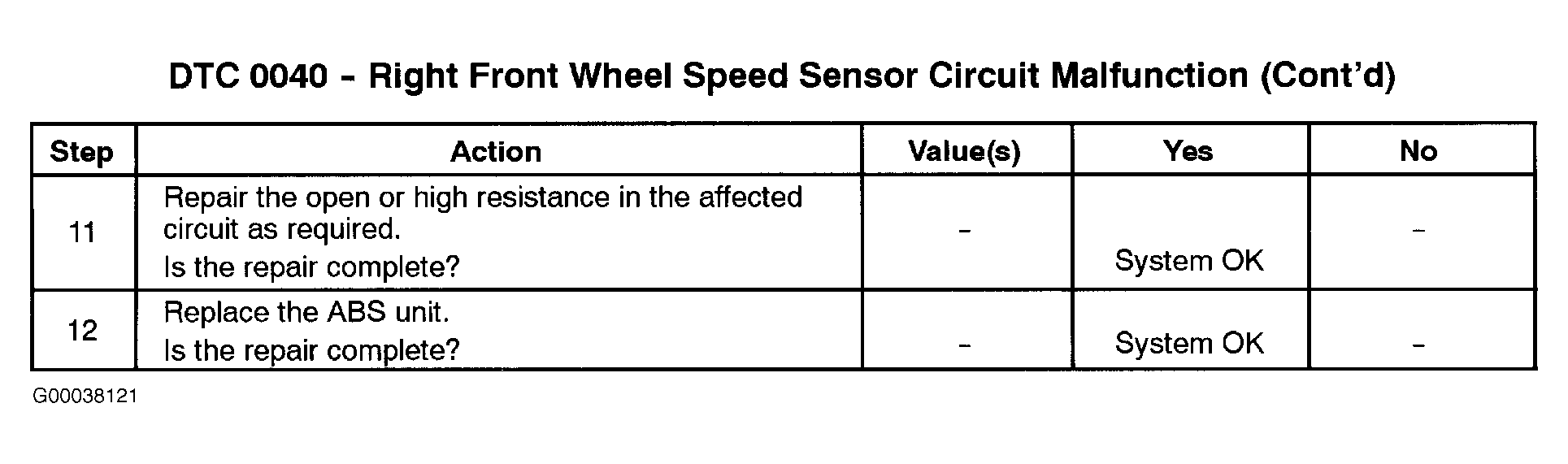

Fig 3: DTC C0040: Right Front Wheel Speed Sensor Circuit Malfunction - Steps 11-12 (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
