Home >> Daewoo >> 2000 >> Lanos SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> DTC Diagnostic Tests >> DTC P1625: Pcm/ECM Internal System Reset >> Notes

DTC P1625: Pcm/ECM Internal System Reset: Notes

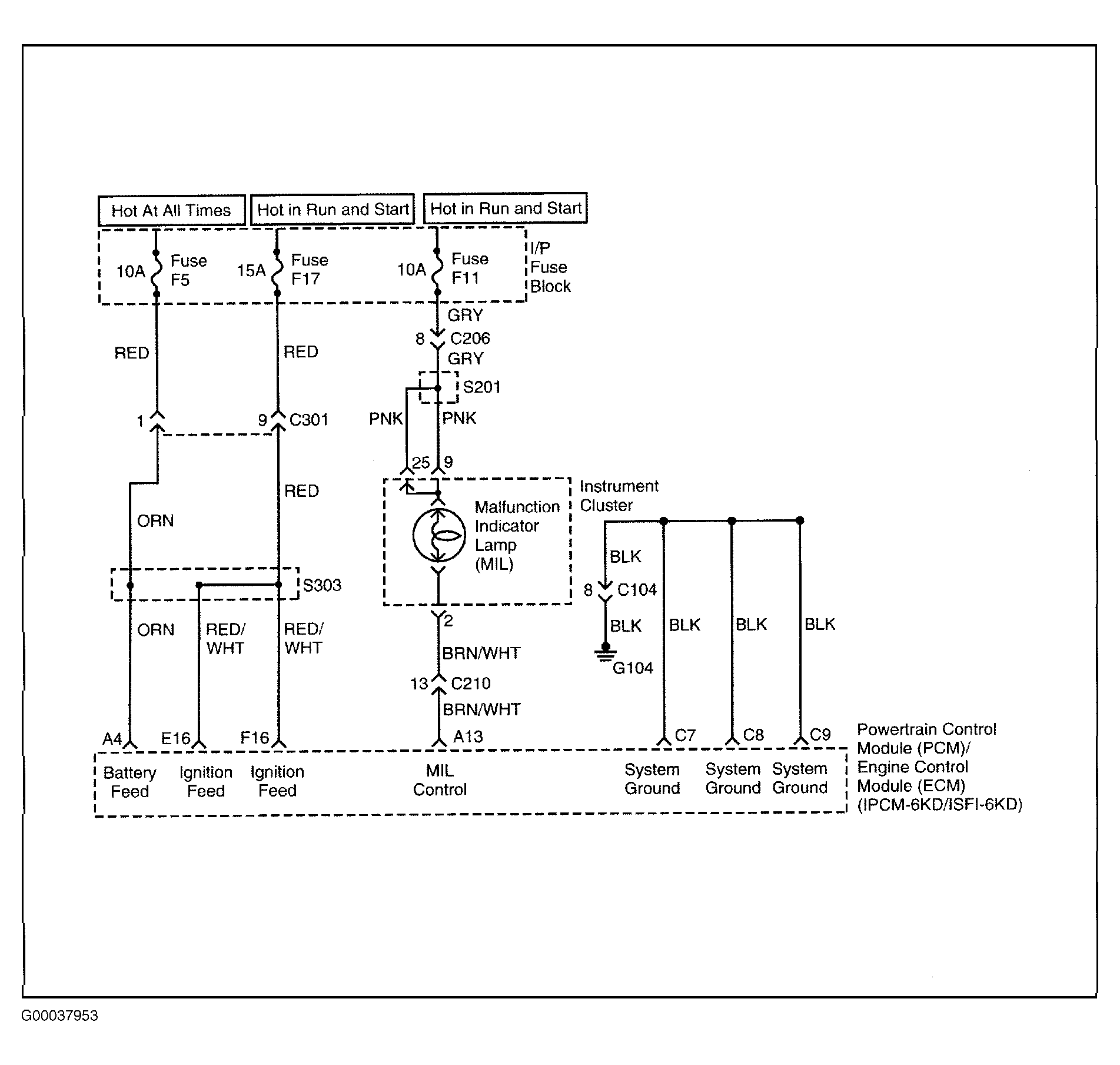

Fig 1: Indicator Lamp Circuit Diagram
G00037953Courtesy of DAEWOO
