Home >> Daewoo >> 2000 >> Lanos SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> DTC Diagnostic Tests >> DTC P0300: Multiple Cylinder Misfire Detected >> Notes

DTC P0300: Multiple Cylinder Misfire Detected: Notes

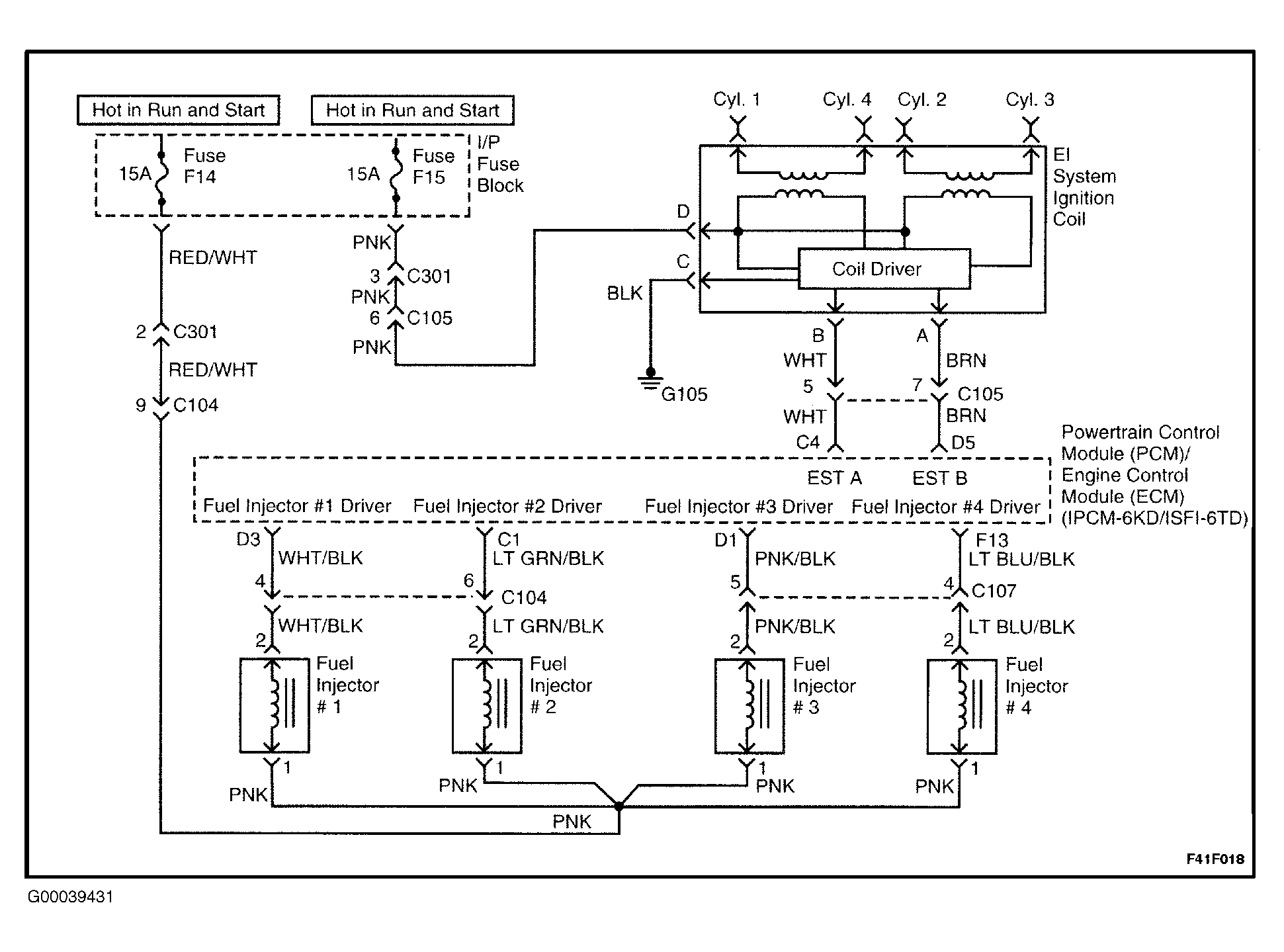

Fig 1: Fuel Injection Circuit Diagram

G00039431

Courtesy of DAEWOO
