Diagnostic Circuit Check

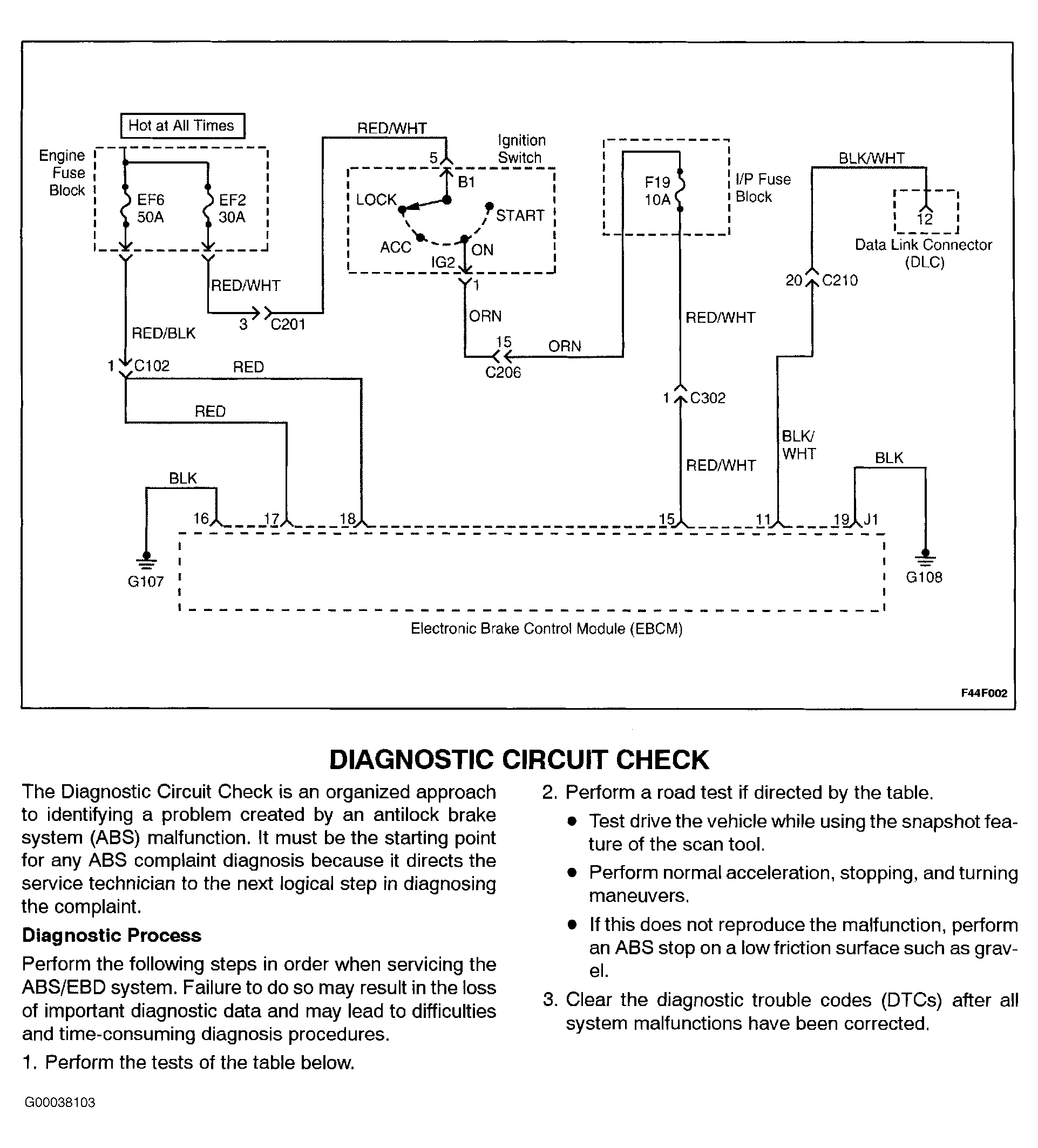

Fig 1: Diagnostic Circuit Check (1 Of 2)

G00038103

Courtesy of DAEWOO MOTOR AMERICA, INC.

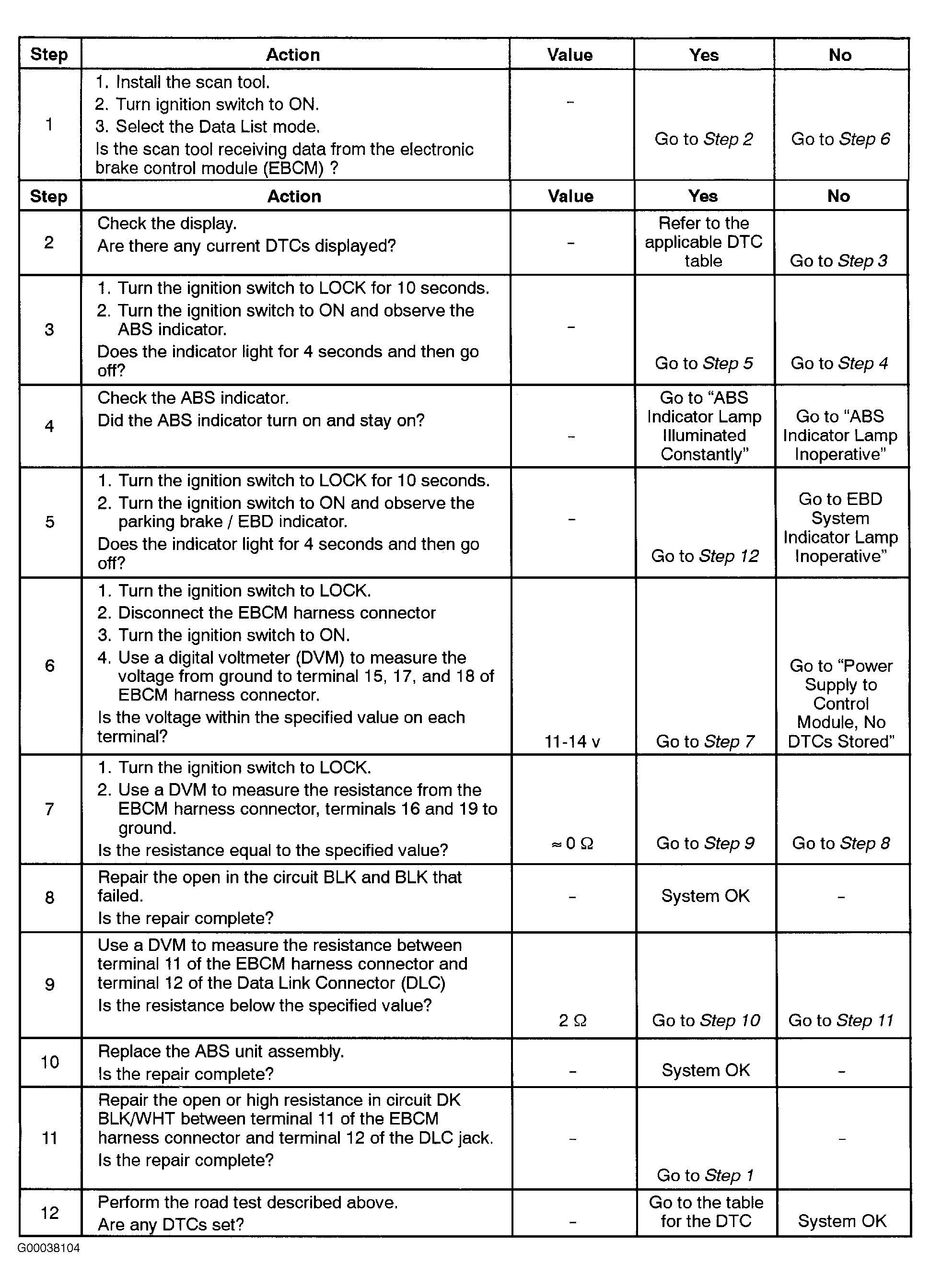

Fig 2: Diagnostic Circuit Check - Steps 1-12 (2 Of 2)

G00038104

Courtesy of DAEWOO MOTOR AMERICA, INC.
