Home
>>
Daewoo
>>
1999
>>
Nubira CDX, 4D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Self-Diagnostics
>>
System & Component Testing
>>
No Malfunction Indicator Lamp
No Malfunction Indicator Lamp

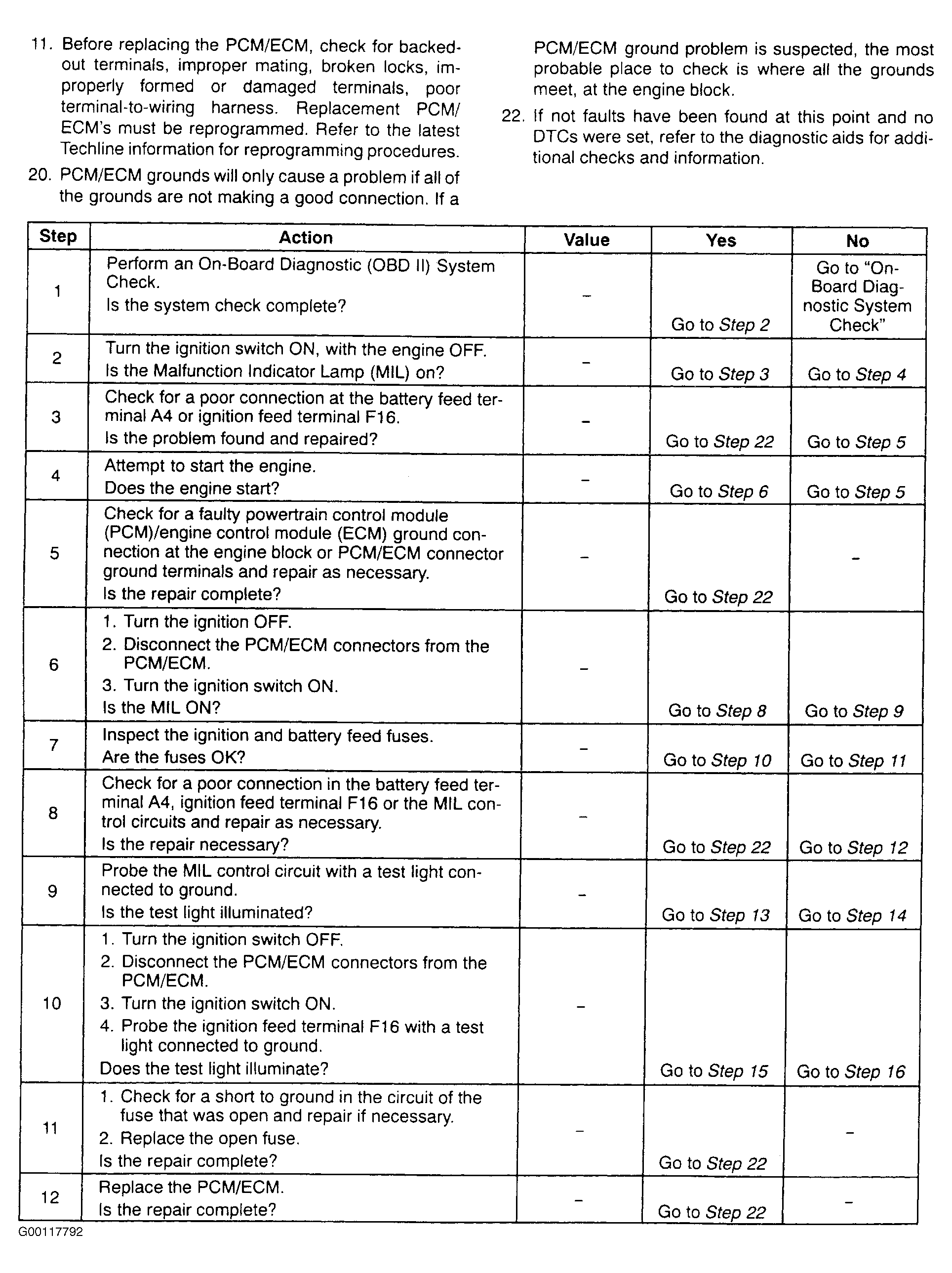

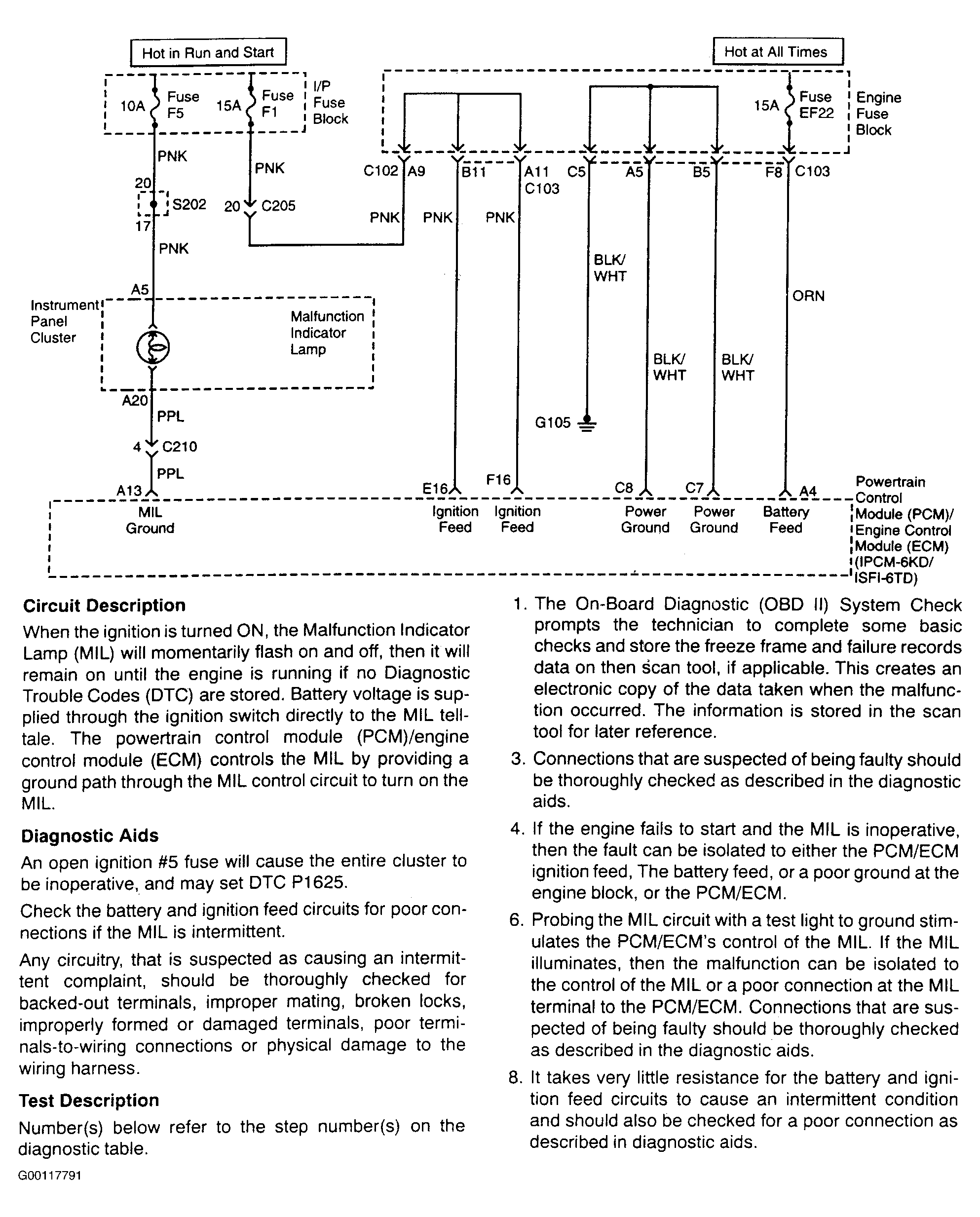

Fig 1: No Malfunction Indicator Lamp (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: No Malfunction Indicator Lamp (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

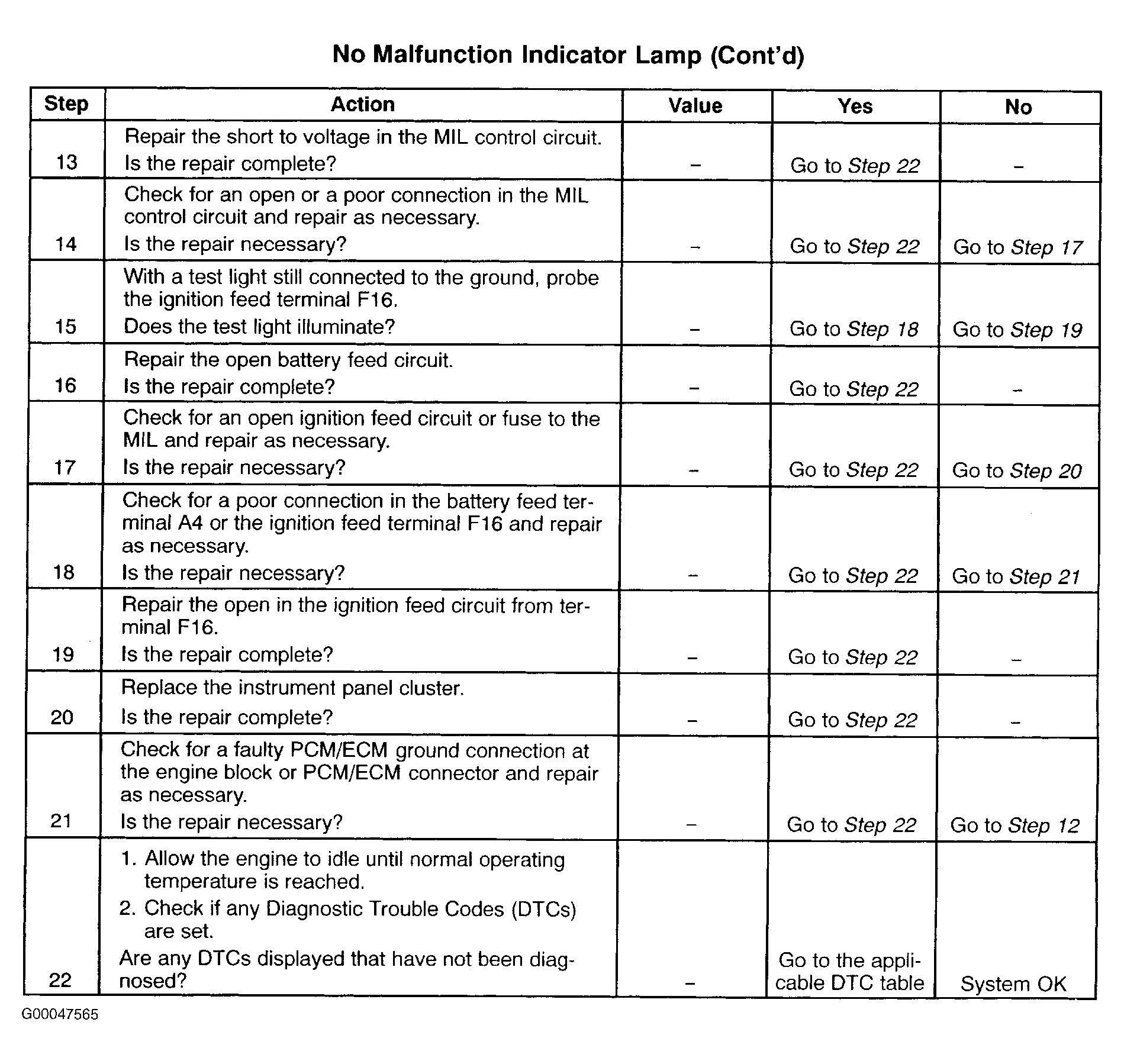

Fig 3: No Malfunction Indicator Lamp (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
