Engine Cooling Fan Circuit Check - With A/C: Notes

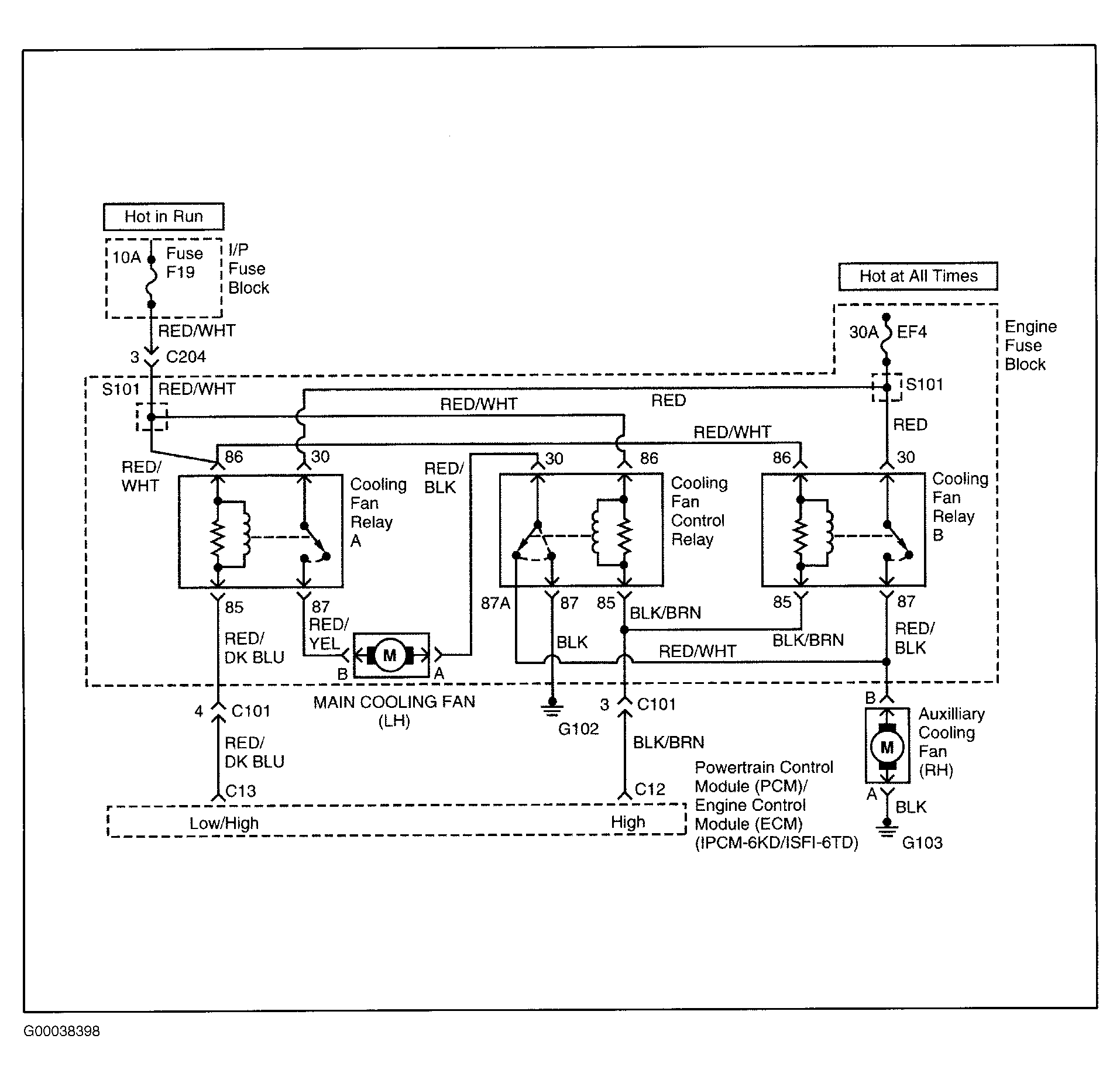

Fig 1: Engine Cooling Fan Circuit Diagram - With A/C
G00038398Courtesy of DAEWOO
